ASROCK BTC PRO Kit Manual

*15G06X714000AK*
P/N: 15G06X714000AK V1.0
BTC PRO Kit
Specifications
BTC_X16
BTC-CARD-X1
Cables

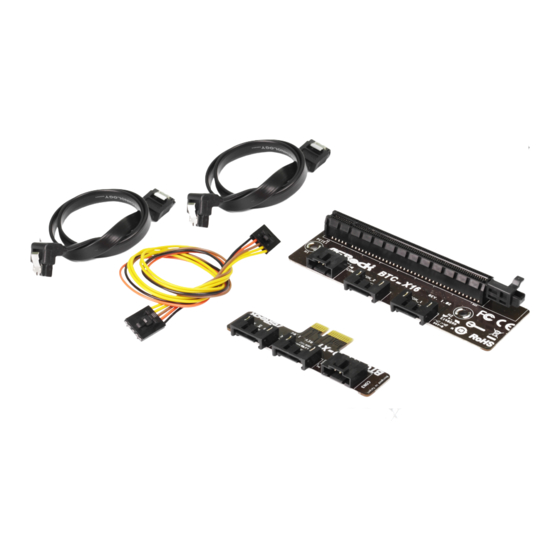

Package Contents
• 1 x BTC_X16
• 1 x BTC-CARD-X1
• 2 x PCIE Signal Cable (Straight Plug to Right
Angled Plug, 340mm)
• 1 x PCIE Power Cable (5-pin, 360mm)
Installation Procedure
1. Connect one end of the PCIE Signal Cable (with Right
Angled Plug) to the CON_1 connector on the BTC_X16.
2. Connect the other end of the PCIE Signal Cable (with
Straight Plug) to the CON_1 connector on the BTC-
CARD-X1.
3. Connect one end of the PCIE Signal Cable (with Right
Angled Plug) to the CON_2 connector on the BTC_
X16.
4. Connect the other end of the PCIE Signal Cable (with
Straight Plug) to the CON_2 connector on the BTC-
CARD-X1.
5. Connect one end of the PCIE Power Cable to the
CON_3 connector on the BTC_X16.
6. Connect the other end of the PCIE Power Cable to the
CON_3 connector on the BTC-CARD-X1.
• 1 x PCI Express x16 Slot
• 2 x PCIE Signal Connectors
• 1 x PCIE Power Connector
• PCI Express Gold Finger
• 2 x PCIE Signal Connectors
• 1 x PCIE Power Connector
• 2 x PCIE Signal Cables
• 1 x PCIE Power Cable
Note:
*WAKE Function is not supported.
*SMBus Function is not supported.
*The maximum +12V current for PCIE Power
cable is 6A.
*PCI Express 3.0 is supported.
PCIE Signal Cables
PCIE Power Cable
1
BTC_X16
BTC-CARD-X1
