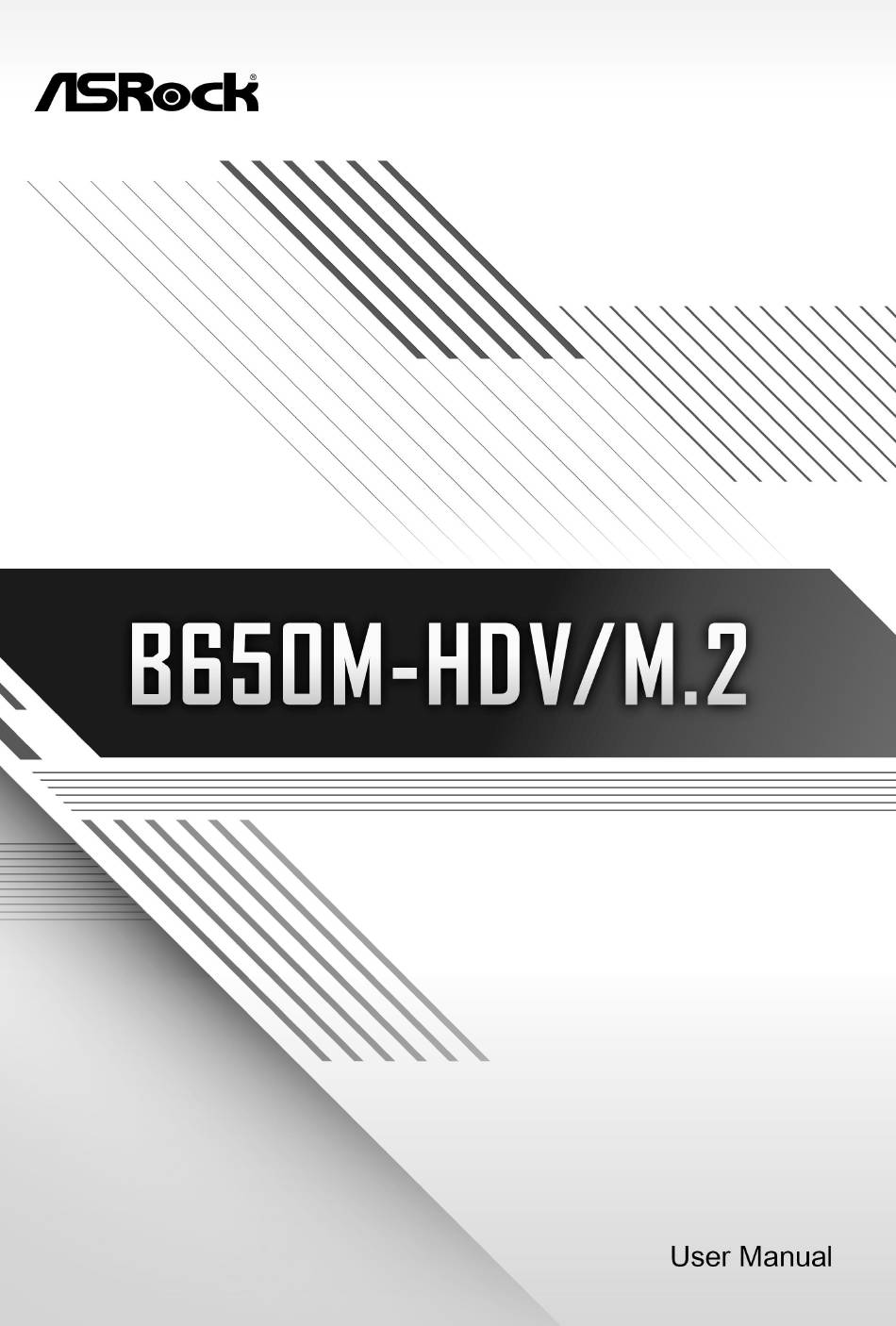

ASROCK B650M-HDV/M.2 User Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Computer Hardware
  5. B650M-HDV/M.2
  6. User manual

ASROCK B650M-HDV/M.2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B650M-HDV/M.2 and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK B650M-HDV/M.2

Summary of Contents for ASROCK B650M-HDV/M.2

  • Page 2 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp ASRock Incorporation e-mail: info@asrock.com.tw...

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header Installing the Motherboard Installing SATA Drives Installing a Graphics Card Connecting Peripheral Devices Connecting the Power Connectors...
  • Page 4 2.16 M.2 SSD Module Installation Guide (M2_1) 2.17 M.2 SSD Module Installation Guide (M2_2)

  • Page 5: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: Specifications

    • Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* • Max. capacity of system memory: 64GB • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: Slot • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*...
  • Page 7 B650M-HDV/M.2 Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) • Nahimic Audio • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s • Dragon RTL8125BG • Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI...
  • Page 8 • ErP/EuP ready (ErP/EuP ready power supply is required) tions * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 9: Motherboard Layout

    B650M-HDV/M.2 1.3 Motherboard Layout...
  • Page 10 No. Description 8 pin 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) Chassis/Water Pump Fan Connector (CHA_FAN1/WP) ATX Power Connector (ATXPWR1) Front Panel Type C USB 3.2 Gen2 Header (USB32_TC2) USB 3.2 Gen1 Header (USB32_3_4) SPI TPM Header (SPI_TPM_J1) USB 3.2 Gen1 Header (USB32_5_6) SATA3 Connectors (SATA3_2)(Upper), (SATA3_1)(Lower)

  • Page 11: I/O Panel

    B650M-HDV/M.2 1.4 I/O Panel No. Description No. Description 2.5G LAN RJ-45 Port* USB 3.2 Gen1 Type-C Port (UB32_TC_1) Line In (Light Blue)** USB 2.0 Ports (USB_1234) Front Speaker (Lime)** BIOS Flashback Button Microphone (Pink)** HDMI Port USB 3.2 Gen1 Type-A Ports (USB32_12) 10 DisplayPort 1.4...

  • Page 12: Block Diagram

    1.5 Block Diagram...

  • Page 13: Chapter 2 Installation

    B650M-HDV/M.2 Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 14: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
  • Page 15 B650M-HDV/M.2 Carefully place the CPU in as flat as possible. Do not drop it.
  • Page 16 Make sure the CPU is aligned with the socket before locking it into place. Make sure the black cover plate is always in place until it pops off when closing the socket lever. Please save the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 17: Installing The Cpu Fan And Heatsink

    B650M-HDV/M.2 2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
  • Page 19 B650M-HDV/M.2 Installing the CPU Cooler (Type 2)
  • Page 21 B650M-HDV/M.2 +12V *The illustrations shown here are for reference purposes only and may not exactly match the model you purchase.
  • Page 22 Installing the CPU Cooler (Type 3)
  • Page 23 B650M-HDV/M.2...
  • Page 24 *The illustrations shown here are for reference purposes only and may not exactly match the model you purchase.

  • Page 25: Installing Memory Modules (Dimm)

    B650M-HDV/M.2 2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs.

  • Page 27: Connecting The Front Panel Header

    B650M-HDV/M.2 2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+) PANEL1...

  • Page 28: Installing The Motherboard

    2.5 Installing the Motherboard...

  • Page 29: Installing Sata Drives

    B650M-HDV/M.2 2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 30 SATA Power Connector SATA Data Connector...

  • Page 31: Installing A Graphics Card

    B650M-HDV/M.2 2.7 Installing a Graphics Card CLICK!
  • Page 32 Expansion Slots (PCIe Slots) There are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 33: Connecting Peripheral Devices

    B650M-HDV/M.2 2.8 Connecting Peripheral Devices...

  • Page 34: Connecting The Power Connectors

    2.9 Connecting the Power Connectors...

  • Page 35: Power On

    B650M-HDV/M.2 2.10 Power On...

  • Page 36: Jumpers Setup

    2.11 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRCMOS1) (see p.5, No. 14) CLRCMOS1 allows you to clear the data in CMOS.

  • Page 37: Onboard Headers And Connectors

    B650M-HDV/M.2 2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header (9-pin PANEL1) (see p.5, No.
  • Page 38 Power LED and Speaker Header (7-pin SPK_PLED1) (see p.5, No. 13) Please connect the chassis power LED and the chassis speaker to this header. SPK_PLED1 SPEAKER DUMMY DUMMY PLED+ PLED+ PLED- Serial ATA3 Connectors Right Angle: (SATA3_1) (see p.5, No. 10) (Lower) (SATA3_2) (see p.5, No.
  • Page 39 B650M-HDV/M.2 USB 2.0 Headers (9-pin USB_5_6) (see p.5, No. 17) (9-pin USB_7_8) (see p.5, No. 16) There are two headers on this motherboard. Each USB 2.0 header can support two ports. USB_5_6 USB_PWR DUMMY USB_PWR USB_7_8 USB_PWR DUMMY USB_PWR USB 3.2 Gen1 Headers (19-pin USB32_3_4) (see p.5, No.
  • Page 40 Front Panel Type C USB 3.2 Gen2 Header (20-pin USB32_TC2) (see p.5, No. 6) There is one Front Panel Type C USB 3.2 Gen2 Header on this motherboard. This header is used for connecting a USB 3.2 Gen2 module for additional USB 3.2 Gen2 ports.
  • Page 41 B650M-HDV/M.2 Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.5, No.4) (4-pin CHA_FAN2/WP) (see p.5, No. 19) (4-pin CHA_FAN3/WP) (see p.5, No. 18) This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
  • Page 42 CPU Fan Connector (4-pin CPU_FAN1) (see p.5, No. 2) This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. CPU_FAN1 4 3 2 1 +12V CPU_FAN_SPEED FAN_SPEED_CONTROL ATX Power Connector...
  • Page 43 B650M-HDV/M.2 ATX 12V Power Connector (8-pin ATX12V1) (see p.5, No. 1) This motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. *Warning: Please make sure that the power cable connected is for the CPU and not the graphics card.
  • Page 44 (5-pin TB1) (see p.5, No. 20) Please connect a Thunderbolt™ add-in card (AIC) to the Thunderbolt AIC connec- tor via the GPIO cable. *Please install the Thunderbolt™ AIC card to PCIE3 (default slot). *For the Thunderbolt compatibility and limitation, please visit www.asrock.com.

  • Page 45: Smart Switches

    B650M-HDV/M.2 2.13 Smart Switches The motherboard has one smart switch: BIOS Flashback Button, allowing users to flash the BIOS. BIOS Flashback Button (BIOS_FB1) (see p.7, No. 8) BIOS Flashback Button allows users to flash the BIOS. BIOS_FB1 USB BIOS Flashback port...
  • Page 46 ASRock BIOS Flashback feature allows you to update BIOS without powering on the system, even without CPU. Before using the BIOS Flashback function, please suspend BitLocker and any encryp- tion or security relying on the TPM. Make sure that you have already stored and backup-ed the recovery key.

  • Page 47: Post Status Checker

    B650M-HDV/M.2 2.14 Post Status Checker Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.

  • Page 48: Wifi/Bt Pcie Wifi Module Installation Guide

    2.15 M.2 WiFi/BT PCIe WiFi Module Installation Guide The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module. * The M.2 socket does not support SATA M.2 SSDs. Installing the WiFi/BT module Step 1 Prepare a type 2230 WiFi/BT PCIe...
  • Page 49 B650M-HDV/M.2 Step 3 Gently insert the WiFi/BT PCIe WiFi module into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw...
  • Page 50 2.16 M.2 SSD Module Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Blazing M.2 Socket (M2_1, Key M) supports type 2280 PCIe Gen5x4 (128 Gb/s) mode. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 51 B650M-HDV/M.2 Step 3 Before installing a M.2 SSD module, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD module. Step 4 Align and gently insert the M.2 SSD...
  • Page 52 Step 5 Before securing the M.2 heatsink, make sure to align the notch on the SSD to the standoff on the motherboard; otherwise, the SSD module may be damaged. Correct Installation: The SSD's PCB is in proper place, and the M.2 heatsink can be screwed in. Incorrect Installation: The SSD's PCB sits between M.2 heatsink and standoff.
  • Page 53 B650M-HDV/M.2 Step 6 Tighten the screws with a screwdriver to secure the module and M.2 heatsink into place in the order shown. Tighten screw opposite the M.2 connector first (2), and then tighten the one next to the M.2 connector (3).
  • Page 54 2.17 M.2 SSD Module Installation Guide (M2_2) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modes. Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the...
  • Page 55 B650M-HDV/M.2 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location B by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Page 56 In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 57 ASRock follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock product is in line with global environmental regulations. In addition, ASRock disclose the relevant information based on regulation requirements.
