ASROCK Blazing Quad M.2 Card User Manual

*15G062410000AK*
P/N: 15G062410000AK V1.0

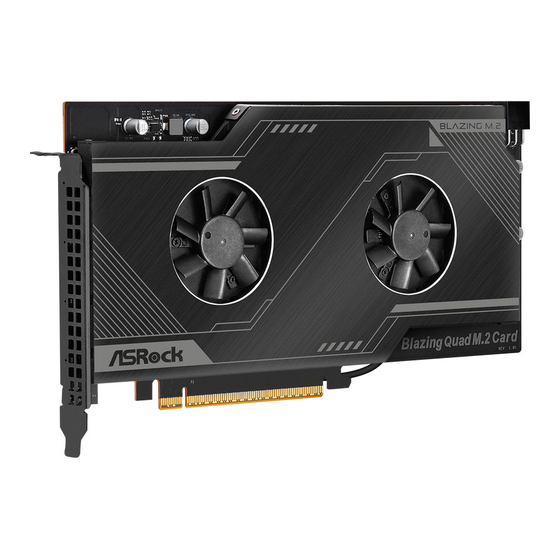

ASRock Blazing Quad M.2 Card
Package Contents
• ASRock Blazing Quad M.2 Card
• User Manual
• M.2 screws
Specifications
• 9.60-in x 4.97-in
Dimensions
• PCI Express 5.0 x 16 interface
Interface
• 4 x Blazing M.2 Sockets (Key M), supports
type 2242/2260/2280/2580/22110/25110 PCIe
Connector
Gen5x4 (128 Gb/s) mode.
• 1 x Graphics 12V Power Connector
*For the M.2 SSD support list and the list of supported motherboard models,
please visit www.asrock.com.

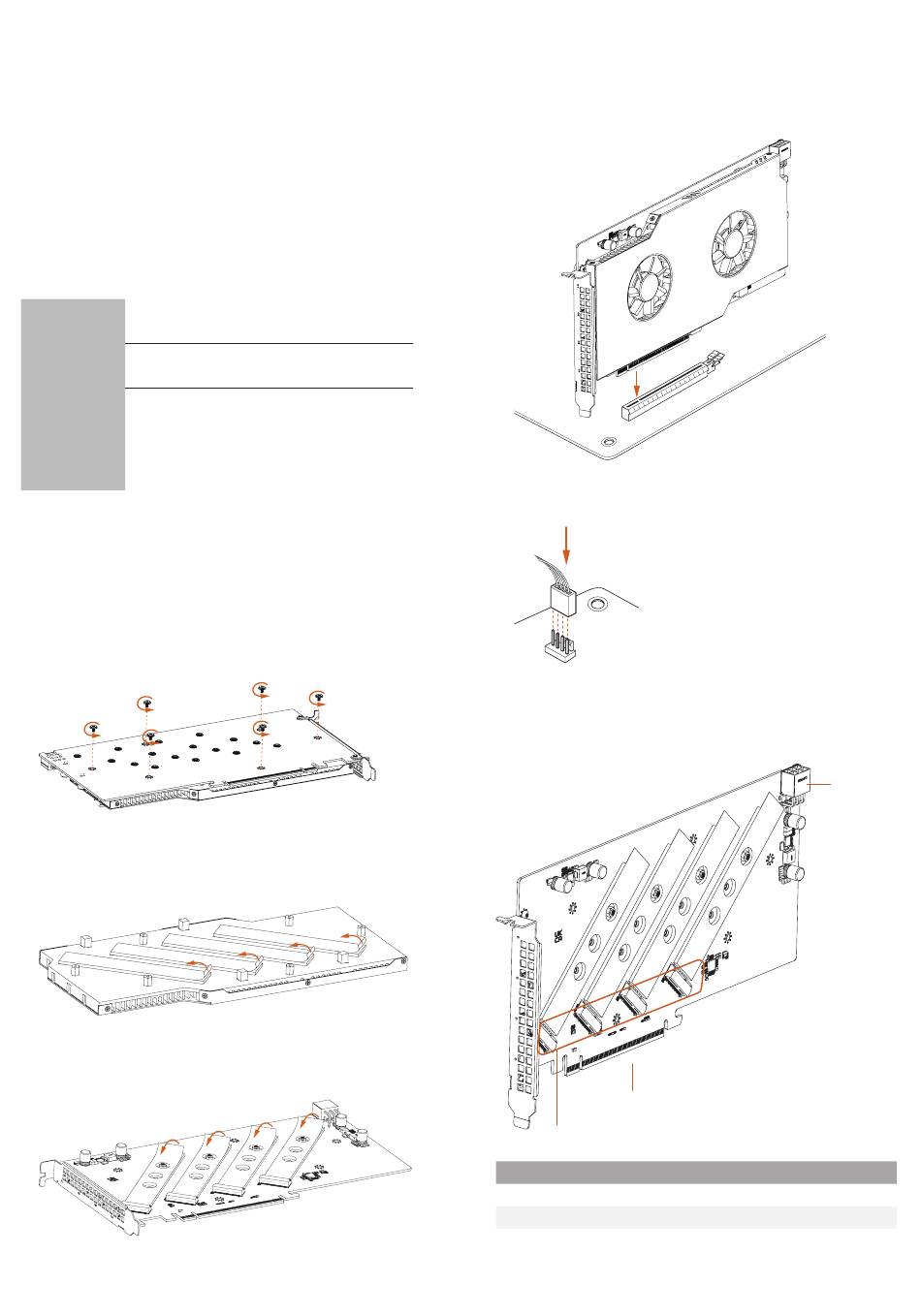

Installation Procedure
1. Remove the six screws holding the bracket in place.
2. Peel off the protective film(s) on the bracket's thermal pad(s) before you
install M.2 SSD module(s).
3. Peel off the protective film(s) on the Blazing Quad M.2 Card's thermal pad(s)
before you install M.2 SSD module(s).
4. Fasten the six screws holding the bracket in place. Power off the PC and
unplug the power cord. Detach all other cables from the PC.
5. Remove the PC cover.
6. Align and insert the card into a PCI Express 5.0 x16 slot on the
motherboard. Press firmly until the card is securely seated in place.
7. Plug the attached fan cable to a free fan connector on your motherboard.
Card Layout
2
1
No. Description
1 Blazing M.2 Sockets
2 PCI Express 5.0 x 16 Interface
3 Graphics 12V Power Connector
3
