Summary of Contents for ASROCK NUCS BOX-1360P/D4
- Page 1 NUC BOX-1260P NUC BOX-1240P NUC BOX-1220P User Manual Version 1.0 Published May 2022...
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Industrial has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 3 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Contact Information If you need to contact ASRock Industrial or want to know more about ASRock Industrial, you’re welcome to visit ASRock Industrial’s website at https://www. asrockind.com; or you may contact your dealer for further information.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the Memory Modules How to Install the WiFi Module How to Install the M.2 SSD (Type 2242) How to Install the M.2 SSD (Type 2280) How to Install the VESA Bracket... - Page 5 5.1.3 Navigation Keys Main Screen (Advanced Mode) Advanced Screen 5.3.1 CPU Configuration 5.3.2 Chipset Configuration 5.3.3 Super IO Configuration 5.3.4 AMT Configuration 5.3.5 ACPI Configuration 5.3.6 USB Configuration 5.3.7 Trusted Computing Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen Chapter 6 Software Support...
-
Page 7: Chapter 1 Introduction
Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • NUCS BOX-1360P/D4 / NUCS BOX-1340P/D4 • 1 x Screw for M.2 slot • 1 x 19V/90W Power Adapter •... -
Page 8: Product Specifications
1.2 Product Specifications NUCS BOX-1360P/D4 Barebone NUCS BOX-1340P/D4 Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUCS BOX-1360P/D4( i7-1360P, 4P+8E) NUCS BOX-1340P/D4( i5-1340P, 4P+8E) Chipset BIOS AMI SPI 256 Mbit Memory Supports Dual Channel DDR4 3200 MHz Storage 1 x M.2 (KEY M, 2242/2280) M.2 slot... - Page 9 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Dimension 110.mm (W)x 117.5mm (D) x 37mm (H) VESA Bracket included , supports 75 x 75 and 100 x 100 mm Weight 0.9Kg Operating Tem- 0°C~40°C perature...
-
Page 10: Block Diagram
1.3 Block Diagram NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 HDMI TMDS DDIB DDR4 - CH0 DDR4 SO-DIMM 3200 (32GB) Conn. Retimer TypeC Conn. DDR4 - CH1 DDR4 SO-DIMM 3200 (32GB) TCP0+USB2#5 TBT/USB3/DP Retimer (TBT) LAN1 2.5G LAN TypeC Conn. PCIe#5(vPro) MDIO Transformer... -
Page 11: Product Overview

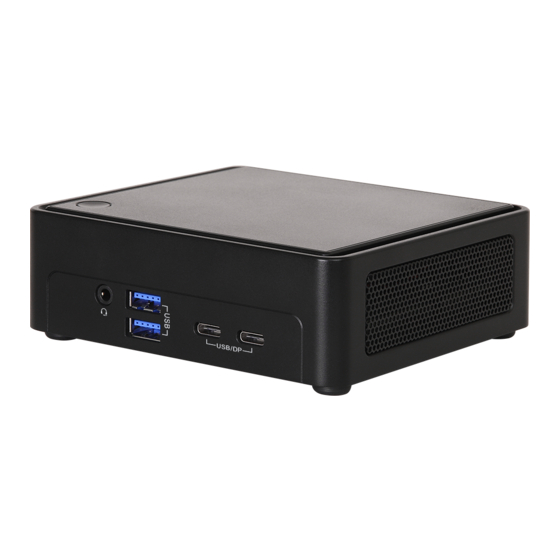

NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the NUCS BOX-1360/D4 / NUCS BOX-1340P/D4. 2.1 Front View Description Audio (Mic-in, Line-out) USB 3.2 Gen2 (Type A) USB4 (Supports DP1.4a display output) -
Page 12: Rear View
2.2 Rear View Description DC-IN 2 x HDMI 2 x USB3.2 Gen2 Ports (Type A) RJ-45 (2.5G)* * There is one LED on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED... -
Page 13: Inside View
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 2.3 Inside View Description SO-DIMM Slots Wifi Module Slot M.2 Slot (2242/2280) SO-DIMM memory, Wifi module and M.2 are not included with this system. -
Page 14: Chapter 3 Hardware Installation
Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel. -
Page 15: How To Install The Memory Modules
NUCS BOX-1340P/D4 3.2 How to Install the Memory Modules 1. The NUCS BOX-1360P/D4 / NUCS BOX-1340P/D4 requires DDR4 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) Memory Module SO-DIMM pairs. -
Page 16: How To Install The Wifi Module
3.3 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard. -
Page 17: How To Install The M.2 Ssd (Type 2242)
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 3.4 How to Install the M.2 SSD (Type 2242) 1. Release and remove the screw. 2. Locate the M.2 slot on the motherboard. Install the standoff. - Page 18 3. Carefully insert the M.2 SSD (Type 2242) into the slot. Tighten the screw to secure the M.2 SSD (Type 2242) to the motherboard.
-
Page 19: How To Install The M.2 Ssd (Type 2280)
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 3.5 How to Install the M.2 SSD (Type 2280) 1. Carefully insert the M.2 SSD (Type 2280) into the slot. 2. Tighten the screw to secure the M.2 SSD (Type 2280) to the motherboard. -
Page 20: How To Install The Vesa Bracket
3.6 How to Install the VESA Bracket Attach the two screws to the base of the NUCS BOX-1360P/D4 / NUCS BOX-1340P/ Attach the VESA Bracket to the rear of a compatible display using the four screws. *Choose mounting holes depending on the mounting hole pattern of your LCD... - Page 21 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Mount the NUCS BOX-1360P/D4 / NUCS BOX-1340P/D4 by sliding it into place.
-
Page 22: Motherboard
Chapter 4 Motherboard 4.1 Motherboard Layout BIOS AUDIO1 USB3_1_2 (USB3.2 Gen2): Top: USB3_1 Bottom: USB3_2 USB3_3_4 (USB3.2 Gen2): Top: USB3_3 Bottom: USB3_4 HDMI1 TC_T0 (Type C): Thunderbolt Industrial HDMI2 TC_UD2 (Type C): USB3/DP DDR4_B1 (Support DDR4 Only) DC_JACK1 PANEL1 DDR4_A1 (Support DDR4 Only) 1 : M.2 Key-M Socket (M2_M1) 2 : M.2 Key-E Socket (M2_E1) 3 : JP1... -
Page 23: Motherboard Specifications
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 4.2 Motherboard Specifications Form Dimensions NUC 4.09” x 4.02” x 10.8” (104 x 102 x 276mm) Factor Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUCS-1360P/D4 (i7-1360P, 4P+8E) Processor NUCS-1340P/D4 (i5-1340P, 4P+8E) System Chipset BIOS AMI SPI 256 Mbit Expansion 1 x Wi-Fi 6E 802.11ax (2.4Gbps) + BT 5.2... - Page 24 Input PWR 12V~19V DC-In Jack AT/ATX Supported Power - AT : Directly PWR on as power input ready Requirements Power On - ATX : Press button to PWR on after power input ready Operating 0ºC - 40ºC Temp Storage Temp -40ºC - 85ºC Environment Operating 5% - 90%...
-
Page 25: Onboard Headers And Connectors
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 4.3 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage of the motherboard! - Page 26 Backside: Power Button (PWR_BTN1) Fan Connector +12V (FAN1) FAN_SPEED FAN_SPEED_CONTROL Battery Connector (BAT1) ESPI Connector (ESPI1)
-
Page 27: Expansion Slots (M.2 Slots)
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 4.4 Expansion Slots (M.2 Slots) There are 2 M.2 sockets on this motherboard. M.2 sockets: 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 for SSD *M.2 Key M 2280(Supported by bracket) 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless M.2 Key-M Socket... -
Page 28: Chapter 5 Uefi Setup Utility
UEFI SETUP UTILITY 5.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience. -
Page 29: Uefi Menu Bar
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced Displays current hardware status H/W Monitor Security For security settings... -
Page 30: Navigation Keys
5.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>... -
Page 31: Main Screen (Advanced Mode)
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.2 Main Screen (Advanced Mode) When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen. -
Page 32: Advanced Screen
5.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Super IO Configuration, AMT Configura- tion, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. -
Page 33: Cpu Configuration
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Configuration options: [Enabled] [Disabled] Active Processor P-Cores Allows you to select the number of cores to enable in each processor package. - Page 34 Enhanced Halt State (C1E) Allows you to enable Enhanced Halt State (C1E) for lower power consumption. Configuration options: [Auto] [Enabled] [Disabled] Package C State Support Allows you to enable CPU, PCIe, Memory, Graphics C State Support for power saving. Configuration options: [Auto] [Enabled] [Disabled] CFG Lock Allows you to enable or disable the CFG Lock.
- Page 35 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. The default value is [Enabled]. Configuration options: [Enabled] [Disabled]...
-
Page 36: Chipset Configuration
5.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-size BAR support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support. - Page 37 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 In-Band ECC Support This allows you to enable or disable In-Band ECC. The option will be enabled if memory has symmetric configuration. Configuration options: [Enabled] [Disabled] Render Standby Power down the render unit when the GPU is idle for lower power consumption.
-
Page 38: Super Io Configuration
5.3.3 Super IO Configuration WDT Timeout Reset Use this to set the Watch Dog Timer. -
Page 39: Amt Configuration
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.3.4 AMT Configuration USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning. The default is [Disabled]. MAC Pass Through Use this to enable or disable MAC Pass Through. The default is [Disabled]. - Page 40 ASF Sensors Table Use this to enable or disable ASF Sensor Table. The default is [Disabled]. Secure Erase mode Change Secure Erase module behavior: Simulated: Performs SE f low without erasing SSD. Real: Erase SSD. Force Secure Erase Use this to enable or disable Force Secure Erase on next boot. The default is [Disabled].
-
Page 41: Acpi Configuration
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.3.5 ACPI Configuration Suspend to RAM Suspend to RAM allows you to select [Disabled] for ACPI suspend type S1. It is recommended to select [Auto] for ACPI S3 power saving. Configuration options: [Auto] [Disabled] Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode. -
Page 42: Usb Configuration
5.3.6 USB Configuration USB Power Control Use this option to control USB power. -
Page 43: Trusted Computing
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.3.7 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. - Page 44 Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device. Configuration options: [None] [TPM Clear] Platform Hierarchy This item allows you to enable or disable Platform Hierarchy. Configuration options: [Enabled] [Disabled] Storage Hierarchy This item allows you to enable or disable Storage Hierarchy.
- Page 45 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Device Select This item allows you to select the TPM device to be supported. [TPM 1.2] restricts support to TPM 1.2 devices. [TPM 2.0] restricts support to TPM 2.0 devices. [Auto] supports both TPM 1.2 and TPM 2.0 devices with the default set to TPM 2.0 devices.
-
Page 46: Hardware Health Event Monitoring Screen
5.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed, chassis fan speed, and the critical voltage. NOTE: Options vary depending on the features of your motherboard. Fan1 Setting This item allows you to select a fan mode for Fan 1. -
Page 47: Security Screen
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 5.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. -
Page 48: Boot Screen
5.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 The item allows you to set the system boot order. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN. - Page 49 NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Full Screen Logo [Enabled] Select this item to display the boot logo. [Disabled] Select this item to show normal POST messages.
-
Page 50: Exit Screen
5.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”... -
Page 51: Chapter 6 Software Support
NUCS BOX-1360P/D4 NUCS BOX-1340P/D4 Chapter 6 Software Support 6.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 11 64-bit / 10 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS documentation for more...
