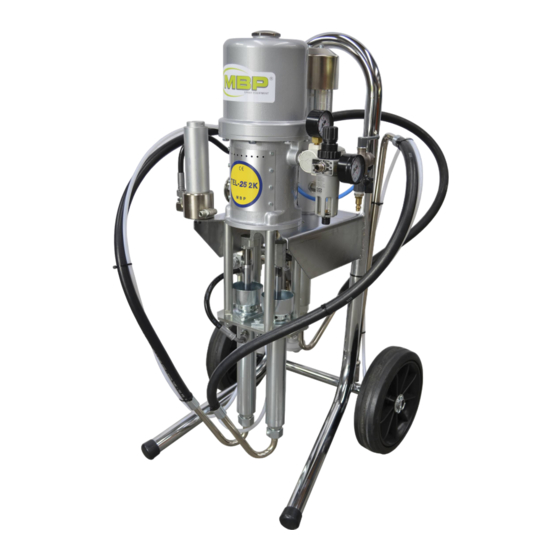

mbp SS-316 Series Instructions And Parts List

Hide thumbs Also See for SS-316 Series:

Advertisement

Quick Links

Download this manual
SPRAY EQUIPMENT
INSTRUCTIONS AND PARTS LIST
SERIES TEL 25-2K-I (1:1)
SS-316
Instructions and Parts List
INDEX
..................... 1
.................................... 1
................ 2
................................... 3
.................... 5
............. 10
C/. Anboto, 17
Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756
MBP S.L.
01006 VITORIA (Alava) / SPAIN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SS-316 Series and is the answer not in the manual?

Questions and answers

Related Manuals for mbp SS-316 Series

Summary of Contents for mbp SS-316 Series

  • Page 1: Table Of Contents

    Pressure relief procedure .... 2 Operating instructions ....2 Cleaning ........3 Parts drawing & list ....5 Troubleshooting guide ..... 10 C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756 MBP S.L. 01006 VITORIA (Alava) / SPAIN...

  • Page 2: Typical Installation

    TYPICAL INSTALLATION BASE BASE DISOLVENTE DE LIMPIEZA RESINA CATALIZADOR WARNING ATTENTION!! Read and understand all instructions carefully before operating equipment. INJECTION HAZARD This equipment generates very high fluid pressure. Spray from the gun, leaks or ruptured components can inject fluid through your skin and into your body and cause extremely serious bodily injury. The spray gun should never be handled carelessly, nor spray directed toward any part of the body.

  • Page 3: Pressure Relief Procedure

    FIRE HAZARD Static electricity is created by the high velocity flow of fluid through the pump and hose. If every part of spray equipment is not properly grounded, sparking may occur, and the system may become hazardous. Check the entire system for positive grounding. GROUNDING Before starting to work the pump must be connected to ground: The pump must be connected to ground with a ground wire which is supplied with the...

  • Page 4: Operating Instructions

    OPERATING INSTRUCTIONS Follow all instructions above, be sure that fittings at pump outlet and at gun are tight. Use two wrench to tighten the maing fitting. Fill the packing nut with oil to help prolong the packing life. • Turn on the air to the pump (fig.1), but the position of this valve must to be ‘’close air’’. •...
  • Page 5 AIR INLET VALVE ‘’OPEN AIR’’ AIR INLET ‘’CLOSE AIR’’ (fig.1) VALVE ‘’A’’ AIR REGULATOR ‘’X’’ (fig.2)

  • Page 6: Parts Drawing & List

    AIR MOTOR 16A.200.00 Nº REF. DESCRIPCION A.110.02 C.JT0.01 JOINT A.210.01 CYLINDER A.120.04 A.220.07 SUPPORT A.120.08 YOKE A.221.00 C.TJ0.02 SCREW A.240.02 CLIP A.240.01 PISTON A.122.00 STEM C.JT0.05 JOINT A.220.11 C.JT0.07 JOINT CB2.015 SLEEVE C.JT0.06 JOINT A.130.02 PLATE A.250.01 BASE C.TA0.01 SCREW C.TC0.01 SCREW A.120.01...
  • Page 7 (fig. 4) DISPLACEMENT PUMP ASSEMBLAGE FOR TEL 25-2K SS-316 Nº REF. DESCRIPTION 18.200.02 UNION 16.000.04 SCREW CPA.101 CTA.005 SCREW 18.200.01PR 16.000.07PR COUPLING 16.200.03PR SUPPORT B.100.00PR PUMP A (BASE) B.100.00PR PUMP B (CATALYST) CTU.101PR CNA.176 COUPLING 16.300.00X SUCTION 16.313.00X FILTER G.100.06PR COUPLING CNB.016 GAUGE...
  • Page 8 PUMP A&B B.100.00PR Nº REF. DESCRIPTION B.120.00PR PACKING NUT B.131.01PR FEMALE GLAND B.131.02 PA PACKING B.131.02 T PACKING B.131.03PR MALE GLAND B.110.00PR HOUSING B.100.01 JOINT B.100.12PR SLEEVE B.100.13PR B.141.01PR WASHER B.141.02PR MALE GLAND B.141.03 PA PACKING B.141.03 T PACKING B.141.04PR FEMALE GLAND CBO.101PR BALL...
  • Page 9 AIR MOTOR ‘‘CLEANING PUMP’’ Nº REF. DESCRIPTION CTB.002 SCREW 080.100.01 COVER CNA.065 ELBOW CTB.012 SCREW 080.120.00 COVER 080.100.05 SNUBBER 080.170.05 GUIDE 080.100.08 WASHER 080.150.00 AIR DISPENSER 080.100.07 HOUSING 080.100.04 SNUBBER CTB.030 SCREW 080.110.00 MOTOR BODY 080.140.00 SPRING SUPPORT 080.100.09 SPRING BUTT END 080.100.11 SPRING 080.100.10...
  • Page 10 DISPLACEMENT PUMP ‘‘CLEANING PUMP’’ Nº REF. DESCRIPTION CJT.026 JOINT CAR.111 RETAINER 080.200.03 BRIDLE 080.200.01 BODY 080.210.00 OIL TUBE 080.200.04X FEMALE GLAND B.131.02 PACKING B.930.04 PACKING 080.200.06X MALE GLAND CPA.109 080.200.16 080.200.07 SPRING 080.200.08X CYLINDER 080.200.12X MALE GLANG 080.200.13 PACKING 080.200.15X FEMALE GLAND CB0110 BALL...

  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Pump. fails Restricted line or inadequate air supply. Clear, increase air. to operate. Insufficient air pressure, closed or clogged air Open, clean. valves, etc. Exhausted fluid supply. Refill; purge all air from pump and fluid lines.
  • Page 12 AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque Country with the Nº 01/8030.
