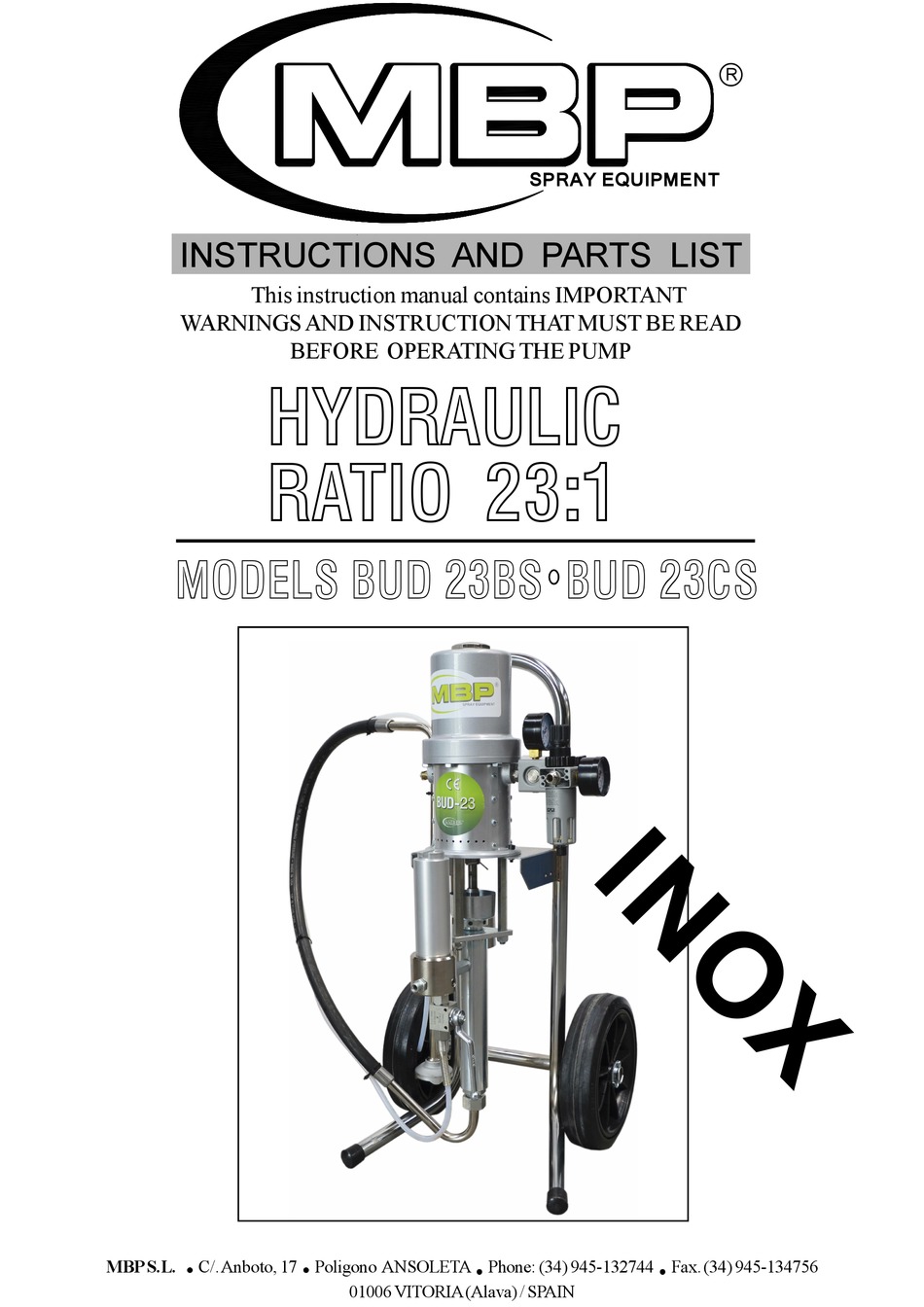

SPRAY EQUIPMENT
INSTRUCTIONS AND PARTS LIST
This instruction manual contains IMPORTANT
WARNINGS AND INSTRUCTION THAT MUST BE READ
BEFORE OPERATING THE PUMP
HYDRAULIC
RATIO 23:1
MODELS BUD 23BS BUD 23CS
C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756
MBP S.L.
01006 VITORIA (Alava) / SPAIN
