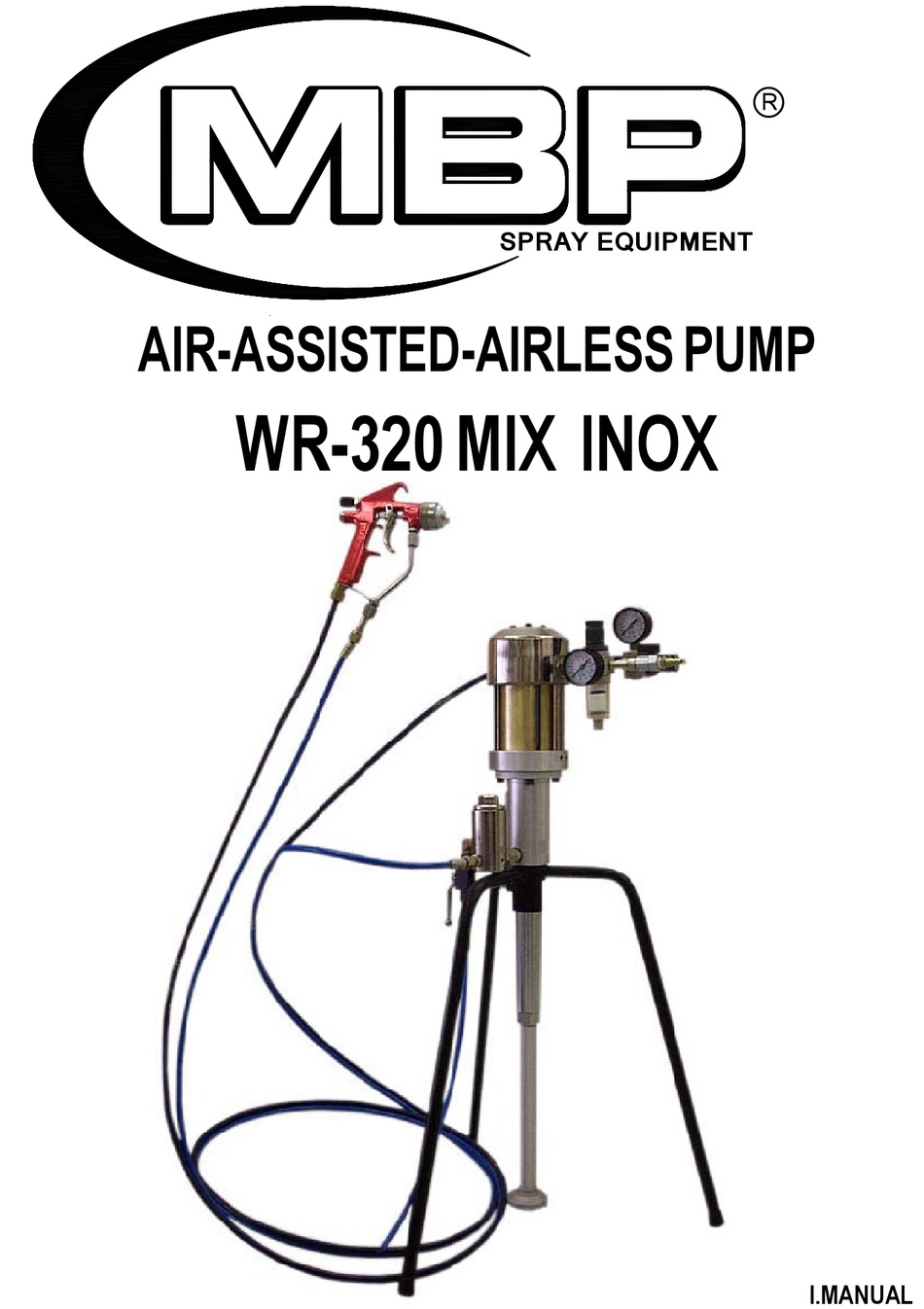

- Page 1 SPRAY EQUIPMENT AIR-ASSISTED-AIRLESS PUMP WR-320 MIX INOX I.MANUAL...
- Page 2 APPROVED BY AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque Country...
-
Page 3: Table Of Contents
INDEX Warning .............2 Pressure relief procedure ........3 Hose safety ............3 Spray gun & Operating instructions ....3&4 Maintenance (cleaning) ........5 Spray tips ............5 Troubleshooting guide ........6 Parts ............7, 8&9 TECHNICAL DETAILS * PUMP RATIO: 32:1 * DELIVERY RATE: 27ccm. * MAX. DELIVERY: 4 l/min. * AIR MOTOR DIAMETER: 85mm. -
Page 4: Warning
WARNING Attention !! Read and understand all instructions carefully before operating equipment. INJECTION HAZARD This equipment generates very high fluid pressure. Spray from the gun, leaks or ruptured components can inject fluid through your skin and into your body and cause serious bodily injury. -
Page 5: Pressure Relief Procedure
PRESSURE RELIEF PROCEDURE Engage the gun safety latch. Shut off the air to the pump. Close the air inlet valve. Disengage the gun safety latch. Hold a metal part of the gun firmily to the side of a grounded metal pail, and trigger the gun safety latch. - Page 6 Flushinf the gun. Relieve pressure, remove the spray tip and then flush the gun and spray with a compatible solvent. Always flush the gun before the fluid being sprayed can dry in it. AIR-ASSISTED-AIRLESS GUN J.1000 Nº REF. DESCRIPTION CJT.103 JOINT J.501.500.06 PACKING NUT...
-
Page 7: Maintenance (Cleaning)
MAINTENANCE (Cleaning) It is recommended that at the end of each day, paint should be flushed from unit with compatible solvent then reflused with mineral spirits. Engage the gun safety and follow the Pressure Relief Procedure. Remove the spray tip and clean with a compatible solvent and soft brush. Disengage the gun safety and follow the pressure relief procedure. -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE For trouble free operation is absolutely essential that your sprayer be kept clean and free of residual paint build-up on the internal parts. It must be cleaned and lubricated after each use. PROBLEM POSSIBLE CAUSE SOLUTION Pump fails to •... -
Page 9: Parts
PARTS AIR MOTOR 080.100.00 DISPLACEMENT PUM 080.200.00X SUCTION FILTER 080.500.00 HP FILTER 080.300.00X DRAIN VALVE G.110.00 AIR REGULATOR F.601.00 HOSE 20.40.05 J.1.000 LUBRICANT INLET 080.210.00... - Page 10 AIR MOTOR 080.100.00 Nº REF. DESCRIPTION CTB.002 SCREW 080.100.01 COVER CNA.116 RACORD CTB.012 SCREW 080.120.00 COVER 080.100.05 SNUBBER 080.170.05 GUIDE 180.100.08 WASHER 080.150.00 AIR DISPENSER 080.100.07 HOUSING 080.100.04 SNUBBER CTB.030 SCREW 080.110.00 MOTOR BODY 080.140.00 SPRING SUPPORT 080.100.09 SPRING BUTT END 080.100.11 SPRING 080.100.10...
- Page 11 DISPLACEMENT PUMP Nº REF. DESCRIPTION CJT.026 JOINT CAR.111 RETAINER 080.200.03 BRIDLE 080.200.01 BODY CTB.013 SCREW 080.210.00 OIL TUBE 080.200.04X FEMALE GLAND B.131.02 PACKING CYLINDER B.930.04 PACKING CYLINDER 080.200.06X MALE GLAND CPA.109 080.200.16X 080.200.07 SPRING 080.200.08X CYLINDER 080.200.12X MALE GLAND 080.200.13 PACKING PISTON 080.200.15X FEMALE GLAND...
- Page 12 The Industry Department of The Basque Goverment, states that all electric and pneumatic airless equipment manufacture by M.B.P. S.L., follows the ’’CE’’ standards under the number 83/392/CEE. MBP, S.L. Plgno. Ansoleta, C. Anboto, 17 01006 VITORIA (SPAIN) P.O.Box 3144 Phone.
