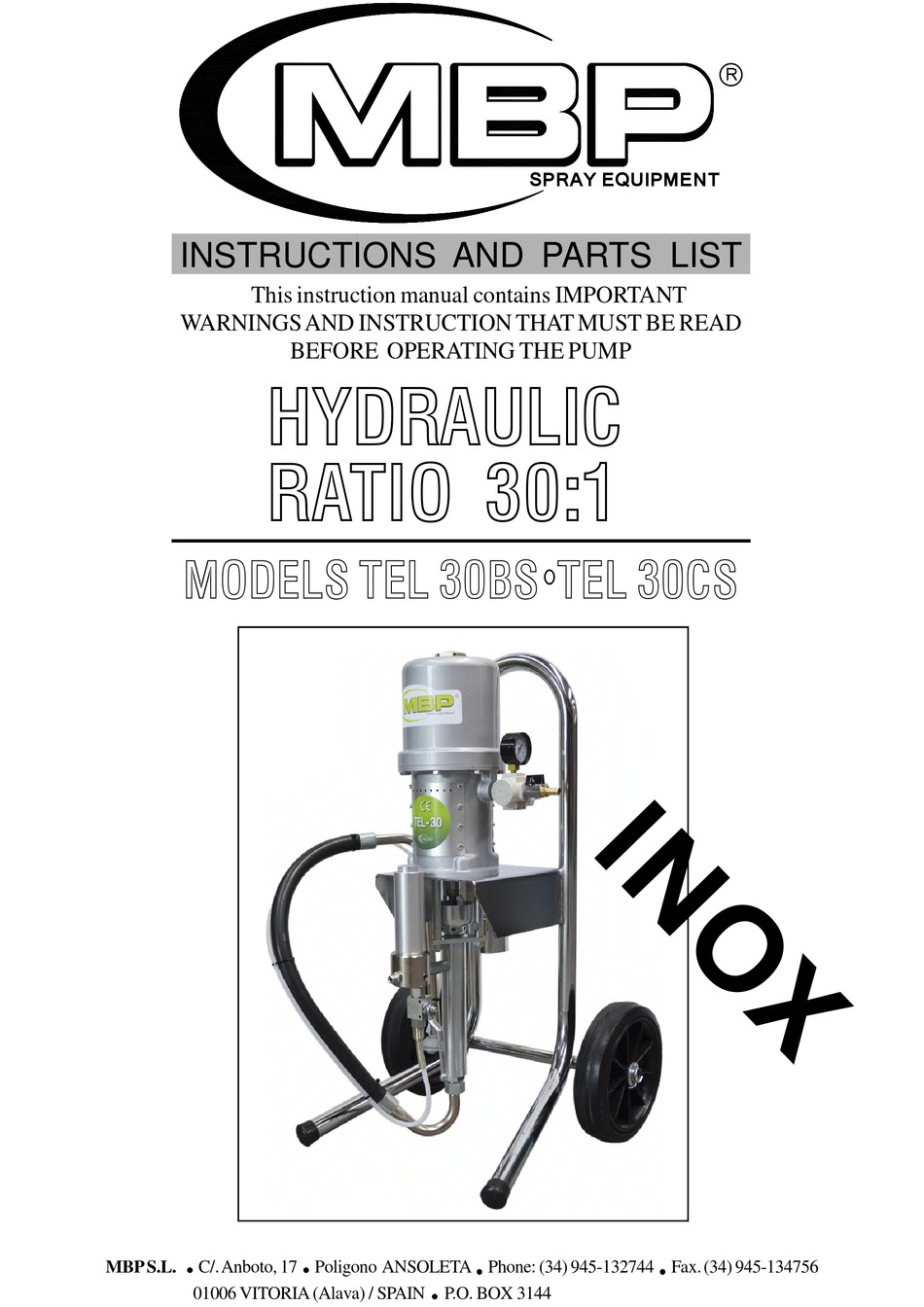

SPRAY EQUIPMENT
INSTRUCTIONS AND PARTS LIST
This instruction manual contains IMPORTANT
WARNINGS AND INSTRUCTION THAT MUST BE READ
BEFORE OPERATING THE PUMP
HYDRAULIC
RATIO 30:1
MODELS TEL 30BS TEL 30CS
MBP S.L.
C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756
01006 VITORIA (Alava) / SPAIN
P.O. BOX 3144
Advertisement
Table of Contents
Related Manuals for mbp TEL 30BS
Summary of Contents for mbp TEL 30BS
- Page 1 WARNINGS AND INSTRUCTION THAT MUST BE READ BEFORE OPERATING THE PUMP HYDRAULIC RATIO 30:1 MODELS TEL 30BS TEL 30CS MBP S.L. C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756 01006 VITORIA (Alava) / SPAIN P.O. BOX 3144...
- Page 2 INDEX: WARNING WARNINGS ............ATTENTION!! Read and understand all instructions carefully TYPICAL INSTALLATION ........before operating equipment. PRESSURE RELIEF PROCEDURE ......INJECTION HAZARD HOSE SAFETY ............. This equipment generates very high fluid pressure. Spray SPRAY GUN & OPERATING INSTRUCTIONS ..from the gun, leaks or ruptured components can inject fluid through your skin and into your body and cause extremely MAINTENANCE (CLEANING AND FLUSHING) ..
- Page 3 TYPICAL INSTALLATION SPRAY GUN It is recommended strain the fluid you are spaying if it contains particles which could clog the spray tip. CLEANING THE SPRAY TIP Clean off the front of the tip frequently during the day’s operation and at the end of the work day. Always follow the Pressure Relief Procedure on page 3.
- Page 4 MAINTENANCE (CLEANING AND SPRAY TIPS FLUSHING) When a tip is the wrong size, or becomes the wrong size It is recommended that at the end of each day, paint through wear, the spray pattern worsens, coverage decreases, should be flushed from unit with compatible solvent then you have less control over the desired rate of coverage, and it reflushed with mineral spirits.
- Page 5 DISPLACEMENT PUMP Nº REF. DESCRIPTION C.PA1.01 C.200.01X B.120.00X PACKING NUT B.130.01X FEMALE GLAND B.130.02 PACKING B.130.03X MALE GLAND C.TU1.01 B.110.00X HOUSING B.100.01 JOINT B.100.02 SLEEVE B.100.03 B.140.01X WASHER C.B01.01 BALL B.150.00 PISTON B.100.05 B.100.04X RETAINER B.100.06 JOINT CBO.104 BALL B.160.00X VALVE D.100.00X FLUID SUCCION...
- Page 6 AIR MOTOR Nº REF. DESCRIPCION A.110.02 CJT.001 JOINT A.210.01 CYLINDER A.120.04 A.220.07 SUPPORT A.120.08 YOKE A.221.00 CTJ.002 SCREW A.240.02 CLIP A.240.01 PISTON A.122.00 STEM CJT.005 JOINT A.220.11 CJT.007 JOINT CB2.015 SLEEVE CJT.006 JOINT A.130.02 PLATE A.250.01 BASE CTA.001 SCREW CTC.001 SCREW A.120.01 ROCKER...
- Page 7 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Pump. fails Restricted line or inadequate air supply. Clear, increase air. to operate. Insufficient air pressure, closed or clogged air valves, etc. Open, clean. Exhausted fluid supply. Refill; purge all air from pump and fluid lines. Obstructed fluid hose, gun or dispensing valve.
- Page 8 AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque Country with the Nº 01/8030.
