SPRAY EQUIPMENT

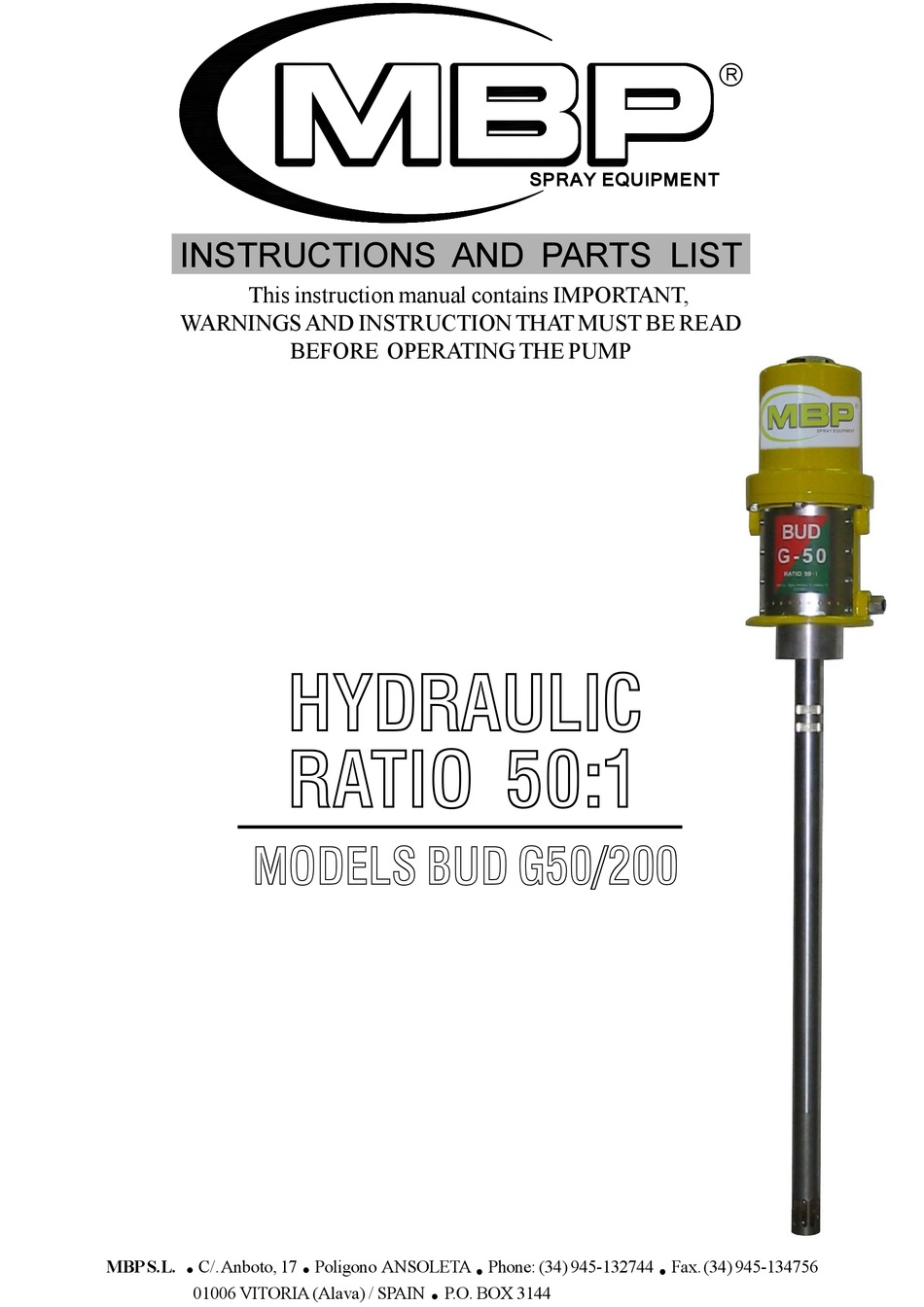

INSTRUCTIONS AND PARTS LIST
This instruction manual contains IMPORTANT,
WARNINGS AND INSTRUCTION THAT MUST BE READ
BEFORE OPERATING THE PUMP
HYDRAULIC
RATIO 50:1
MODELS BUD G50/200
C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756
MBP S.L.
01006 VITORIA (Alava) / SPAIN
P.O. BOX 3144
Advertisement
Table of Contents
Related Manuals for mbp BUD G50/200
Summary of Contents for mbp BUD G50/200
- Page 1 This instruction manual contains IMPORTANT, WARNINGS AND INSTRUCTION THAT MUST BE READ BEFORE OPERATING THE PUMP HYDRAULIC RATIO 50:1 MODELS BUD G50/200 C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756 MBP S.L. 01006 VITORIA (Alava) / SPAIN P.O. BOX 3144...
- Page 2 OPERATING INSTRUCTIONS LEAFLET Air-operated Grease Pump (1) Instructions (a) The pump is a reciprocating pump with double action desing allows for dispensing product on both the up stroke and down stroke to provide steady and continuous delivery. (b) Two strokes only one exhasust at down stroke dead point.
- Page 3 (4) TROUBLE DIAGNOSIS (I) When Pump runs. (A) Low output pressure or delivery. (a) On up stroke - 1.Check 19 (fig.3) Valve seat within 6 (fig.3) Coupling. 2.Check 10 (fig.3) Packing. (b) On down stroke - 1.Check 19 (fig.3) Valve Seat within 13 (fig.3) Check Valve Packing Retainer. 2.Check 12 (fig.3) Packing &...
- Page 4 (6) DISASEMBLY AND REASSEMBLY (a) For Displacement Pump ( fig.3). Clamp 18 (fig.2) Air Motor Base in a vise and screw 18 Priming Tube off 16 Packing Retainer. Put a rod through the hole of 15 Displacement Tube and screw 17 Priming Plunger off 15 Displacement Tube. Loosen 16 Packing Retainer then use a pipe wrench at the knurl part of 4 Displacement Cylinder to screw it out of 18 (fig.2) Air Motor Base and remove it.
- Page 5 AIR MOTOR Nº REF. DESCRIPTION 40006 CYLINDER CAP NUT 40007 O-RING 40008 CYLINDER 40011 TOGGLE PIN 40005 AIR VALVE BAR 40010 SHUTTLE 40009 TRIP ROD 40032 BOLT 40023 SPRING CLIP 40015 PISTON 40003 STEM VALVES 40016 O-RING 5040020 AIR PISTON TUBE 40017 O-RING 40019...
- Page 6 DISPLACEMENT PUMP Nº REF. DESCRIPTION 80030 CONNECTING ROD 40029 ROLL PIN 40027 GASKET 80028 DISPLACEMENT CYLINDER 40033 STEEL BALL 40031 COUPLING 40035 GASKET 40036 GUIDE 40039 WASHER 40038 PACKING 5040046 GUIDE 5040047 PAKING 40041 CHECK VALVE PACKING RETAINER 5040048 PACKING 5040050 DISPLACEMENT TUBE 40049...
- Page 7 AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque Country with the Nº 01/8030.
