mbp MAGNUS 8000 HYDRAULIC Instructions And Parts List

Hide thumbs
Table of Contents

Advertisement

Quick Links

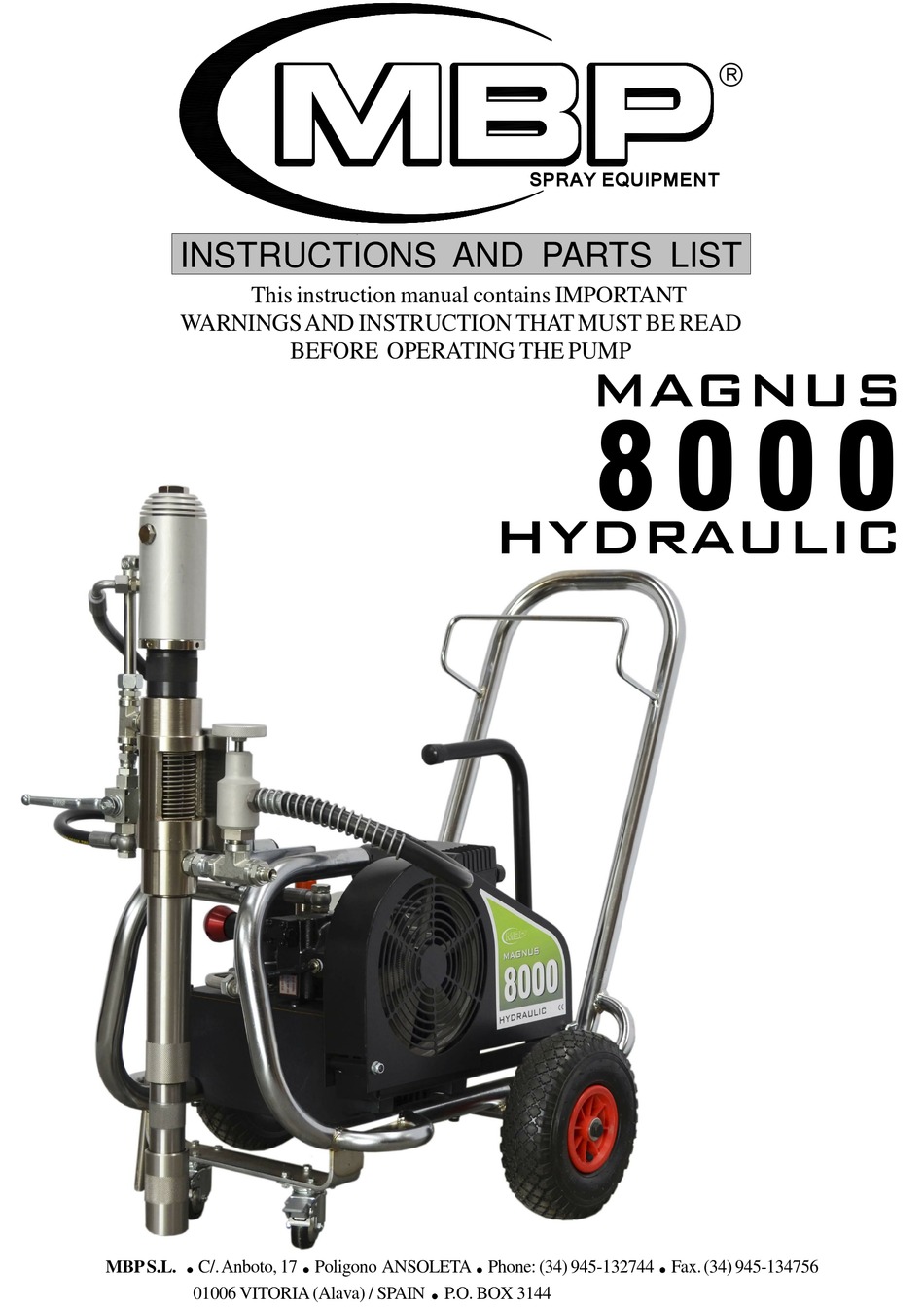

SPRAY EQUIPMENT
INSTRUCTIONS AND PARTS LIST
This instruction manual contains IMPORTANT
WARNINGS AND INSTRUCTION THAT MUST BE READ
BEFORE OPERATING THE PUMP
MAGNUS
8 0 0 0
HYDRAULIC
MBP S.L.
C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756
01006 VITORIA (Alava) / SPAIN
P.O. BOX 3144

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGNUS 8000 HYDRAULIC and is the answer not in the manual?

Questions and answers

Related Manuals for mbp MAGNUS 8000 HYDRAULIC

Summary of Contents for mbp MAGNUS 8000 HYDRAULIC

  • Page 1 This instruction manual contains IMPORTANT WARNINGS AND INSTRUCTION THAT MUST BE READ BEFORE OPERATING THE PUMP MAGNUS 8 0 0 0 HYDRAULIC MBP S.L. C/. Anboto, 17 Poligono ANSOLETA Phone: (34) 945-132744 Fax. (34) 945-134756 01006 VITORIA (Alava) / SPAIN P.O. BOX 3144...

  • Page 2: Table Of Contents

    SAFETY WARNINGS INDEX: SAFETY WARNINGS ..........ATTENTION OPERATION ............This equipment generates very high fluid pressure. High CLEANUP ............pressure spray can cause serious injury. Read and understand MAINTENANCE ............all instructions before operating. TROUBLESHOOTING GUIDE ......Never point the spray gun at anyone or at any part of the body. TECHNICAL DATA ..........

  • Page 3: Pressure Relief Procedure

    If you experience any static sparking or even a slight shock NOTE: while using the equipment, stop spraying immediately. Check Before starting to work the pump must be connected to ground. the system for proper grounding. Do not use the system again The pump must be connected to ground with a ground wire until the problem has been identified and corrected.

  • Page 4: Operation

    OPERATION b) To turn off the electricmotor. Set the pressure to minimum by turnig the - Attach and airless spray gun to the spray hose. Do not attach pressure control knob fully counterclockwise. the tip to the spray gun yet. Remove the tip if it is already attached.
  • Page 5 PAINTING - Turn the pressure control knob clockwise approximately 1/3 of the way down to increase pressure until the sprayer - Place the suction pipe into a container of paint. cycles evenly and solvent flows freely from the bleed hose. - Place the bleed hose into a metal waste container.

  • Page 6: Cleanup

    - Lock the gun by turning the gun trigger lock to the locked W A R N I N G position. - Turn off the unit Ground the gun by holding it against the edge of a) To turn off the gas engine the metal container while flushing.

  • Page 7: Maintenance

    C A U T I O N W A R N I N G Ground the gun by holding it against the edge of The sprayer, hose, and gun should be cleaned the metal container while flushing. Failure to do thoroughly after daily use.
  • Page 8 1- Check the hydraulic fluid daily. It should be at the ‘’Full’’mark 1º Clean and oil air filter pad on gasoline engine every 25 hours on the dipstick. If it is low, add only MBP Hydraulic Fluid. or once weekly. Do not permit the air intake screen around Never add or change hydraulic fluid except in a clean, the fly wheel of the gas engine to load up with paint or trash.

  • Page 9: Troubleshooting Guide

    TROUBLESHOOTING GUIDE FLUID SECTION TROUBLE POSSIBLE CAUSE SOLUTION Pump delivers on Lower foot valve ball is not seating due to Remove foot valve assembly. Clean and inspect. Test foot valve upstroke only or goes trash or wear. by filling with water; if ball fails to seal the seat, replace ball. up slowly and down Material too viscous to siphon.

  • Page 10: Technical Data

    PARTS LIST GROUND HYDRAULIC SHUT-OFF PUMP 101.400.00 VALVE WIRE GROUND 101.620.00 ON/OFF SWITCH TROLLEY DRAIN VALVE HYDRAULIC FLUID LEVEL PRESSURE MOTOR: CONTROL ELECTRIC (MAGNUS 8000) GAS HONDA 5.5HP(MAGNUS 8000 GAS) INLET HYDRAULIC SYSTEM FILTER OUTLET HYDRAULIC SYSTEM HYDRAULIC TANK TECHNICAL DATA MAGNUS 8000 •Delivery: 5,7 l/min.
  • Page 11 MOTOR Nº REF. DESCRIPTION 103.110.04 PLUG O-RING CJT.162 CYLINDER 103.110.01 BALL CB0.009 SPRING 103.110.03 0-RING CJT.161 103.110.02 PLUG 103.200.01 NIPPLE CTU.107 103.120.02 VALVE 103.120.00 SHAFT DISTRIBUTOR 103.110.05 O-RING CJT.163 WASHER 103.110.06 WASHER CAR.127 103.120.06 CJT.160 O-RING 103.100.02 CYLINDER 103.100.01 CAB.021 JOINT 103.121.00 BASE CYLINDER...
  • Page 12 DISPLACEMENT PUMP Nº REF. DESCRIPTION 104.200.06 104.240.04 FEMALE GLAND 104.240.01 PACKING 104.240.02 PACKING 104.240.03 MALE GLAND 104.200.07 SPRING 104.200.08 JOINT 104.200.05 CYLINDER 104.200.02 SPRING SEAT 104.200.03 SPRING CBO.102 BALL 104.230.00 PISTON 104.200.04 CYLINDER CJT.042 O-RING 104.200.01 BALL GUIDE CBO.103 BALL 104.200.09 JOINT 104.220.00...
  • Page 13 33 38 Nº REF. DESCRIPTION Nº REF. DESCRIPTION 104.600.01 TANK 104.600.08 KNOP 104.620.00 COVER 104.600.05 PLATE 104.621.00 VALVE 104.600.06 PULLEY 104.600.02 JOINT CTG.021 CTA.011 SCREW CTA.010 SCREW CAR.052 WASHER 104.640.00 COVER 104.600.14 PLUG CMH.003 FILTER CTA.014 SCREW CNA.064 ELBOW CAR.006 WASHER CMH.004 PISTON PUMP...

  • Page 14: Accesories

    ELECTRIC PUM GASOLINE PUM Nº REF. DESCRIPTION 104.700.01 PULLEY CTG.020 CAR.005 WASHER CTB.029 SCREW CAR.053 WASHER Nº REF. DESCRIPTION CTU.001 104.800.02 HANDLE 104.800.01 PULLEY 104.710.00 PLATE CTG.020 CEA.044 MOTOR CAR.006 WASHER CEA.048 SWITCH ON/OFF CTB.009 SCREW CAB.003 PLUG CAR.051 WASHER 102.630.00 CABLE CTU.001...

  • Page 15: Standard Spray Tips

    J.700.CS (CARBON STEEL) =1,150Kg J.700.AL (ALUMINIUM) =0,900Kg J.700.CS.L (CARBON STEEL) =1,830Kg J.700.AL .L ( ALUMINIUM) =1,430Kg AIRLESS GUN FILTER REF. MESH COLOUR J.260.01 WHITE SWIVEL CONNECTOR J.260.02 YELLOU REF:J.274 STANDARD TIP J.260.03 REF:J.274X REF: 90.XX.XX REVERSIBLE BASE TIP EXTENSIONS REF:J.790.00 REF: J.271.

  • Page 16: Warranty

    AITOR ORTIZ FECHA / DATE MBP, S.L. figura inscrita en el Registro Industrial del País Vasco con el Nº 01/8030 y cumple los requisitos para el desarrollo de su actividad comercial. MBP, S.L. is registered in the Industrial Register of the Basque Country with the Nº 01/8030.
