Domestic Washer—Technical Information
120 V, 60 Hz Models
SAV2555AW*
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3100007.
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor
before servicing, unless testing requires it.
October 2003
!
CAUTION
!
WARNING
1

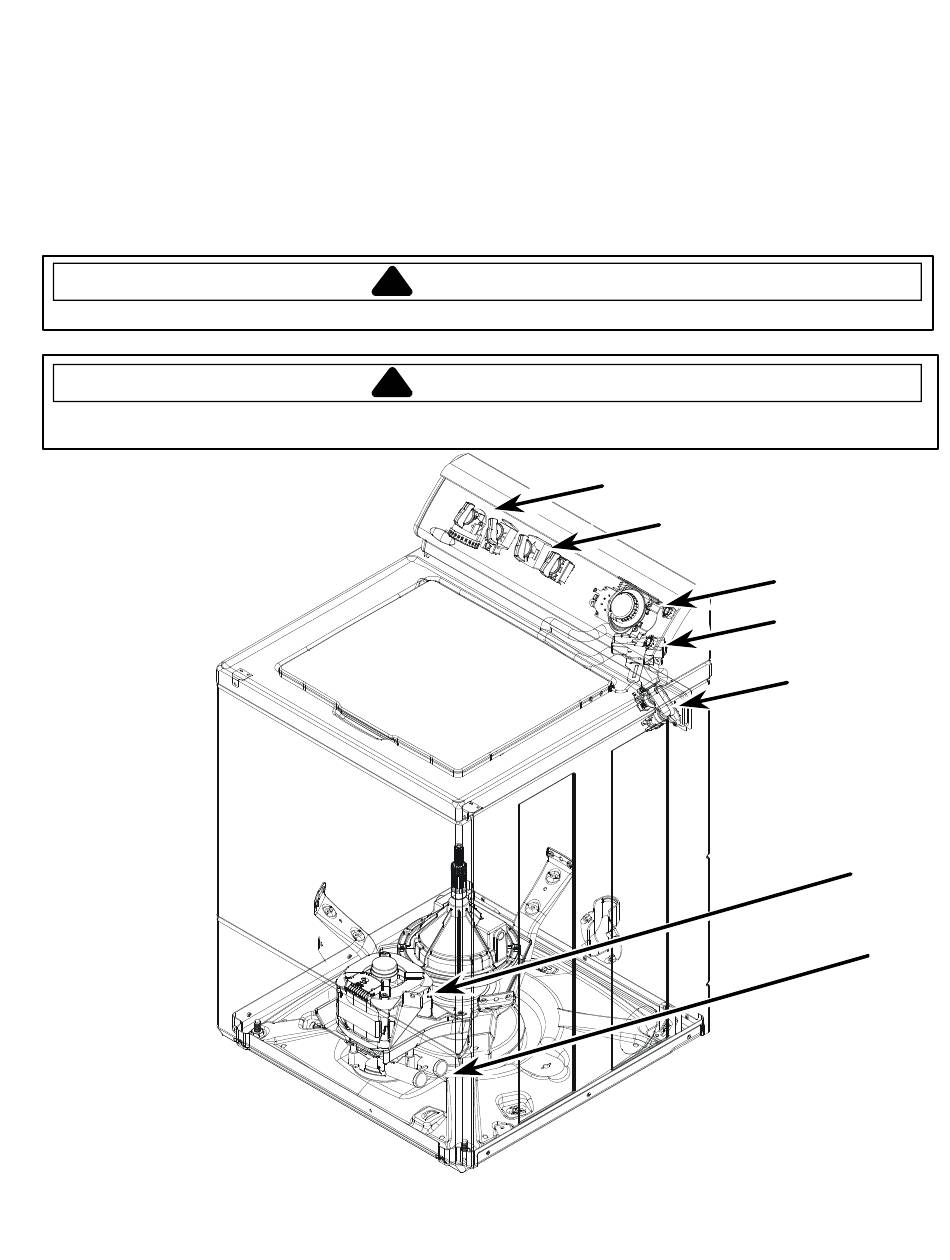

Pressure Switch
Temp Switch
Timer
Lid Switch
Water Valve
Motor
Drain
Pump
16022733 Rev. 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAV2555AW Series and is the answer not in the manual?

Questions and answers

Related Manuals for Maytag SAV2555AW Series

Summary of Contents for Maytag SAV2555AW Series

  • Page 1 Domestic Washer—Technical Information 120 V, 60 Hz Models SAV2555AW* • Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or repair of this unit. • Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly instructions.

  • Page 2: Troubleshooting

    Trouble Shooting WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Models SAV2555AW* Models SAV2555AW* Power Source Wash cycles Voltage AC 120 VAC Water temperatures Amperage (Single Unit) 10 A Water level Frequency...
  • Page 3 Trouble Shooting WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. • Check for broken impeller on pump. • Check for partial engagement of brake assembly. Check for obstruction between tubs. •...

  • Page 4: Component Testing Information

    Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results 2 Speed Motor See section “Internal Motor Diagram and Schematic for wiring contacts.
  • Page 5 Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results Temperature Switch Disconnect wires from component to properly measure the resistance. Place switch in the following positions and measure across the terminals below.

  • Page 6: Internal Motor Diagram And Schematic

    Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Red Run Violet Start Blue Yellow Brown White Common 1/2HP 120V/60hz, 7-8 amps, 1750 RPM Main wattage, 550-900 watts WIRING DIAGRAM PROTECTOR...

  • Page 7: Motor Trouble Shooting

    Motor Trouble Shooting WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. One or Two Speed Motors Continuity exists between switch terminal R and Red wire. Start Terminals Manually depress actuator.

  • Page 8: Timer Cycle Chart

    Timer Cycle Chart WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Water Motor Cycle Time Cycle Function Temperature Speed hh:mm:ss Select Wash: Fill & Agitate hot, warm, or cold fast 0:02:33 Soak...
  • Page 9 Timer Cycle Chart WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. October 2003 16022733 Rev. 0...

  • Page 10: Wiring Diagram And Schematic

    Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. GRN/YLW Motor Connector Timer Connector October 2003 16022733 Rev. 0...
  • Page 11 Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. 120 VOLTS A.C. 60 HZ PRESSURE SWITCH 4 POSITION WATER TEMP. SWITCH SWITCH L2-2 COLD N.O.
