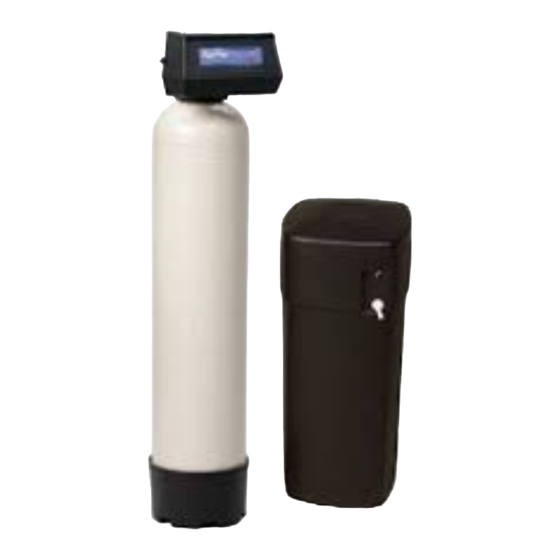

INSTALLATION AND OPERATING
MODELS:
CS1001
CSM1001
CS1501
CSM1501
CS2001
CSM2001
Installer, please leave with homeowner.
Homeowner, retain for future reference.
INSTR2201 0312
INSTRUCTIONS
CS/CSM SERIES RESIDENTIAL
WATER SOFTENERS
Advertisement
Related Manuals for 3M Aqua-Pure CS Series
Summary of Contents for 3M Aqua-Pure CS Series
- Page 1 CLICK ANYWHERE on THIS PAGE to RETURN TO AQUA SYSTEMS WATER SOFTENERS at InspectApedia.com INSTALLATION AND OPERATING INSTRUCTIONS CS/CSM SERIES RESIDENTIAL WATER SOFTENERS MODELS: CS1001 CSM1001 CS1501 CSM1501 CS2001 CSM2001 Installer, please leave with homeowner. Homeowner, retain for future reference. INSTR2201 0312...
- Page 2 • Utilize a NIOSH-approved dust fi lter mask, protective gloves, and appropriate eye protection when handling and pouring gravel and fi lter media. • To request an MSDS relating to this product, call 203-238-8965 or go to www.3M.com, select country, and use the search engine to search MSDS. For emergen- cies, call 800-364-3577 or 651-737-6501 (24 hours).
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION DESCRIPTION BEFORE INSTALLATION INSTALLATION REGENERATION INSTRUCTIONS MAINTENANCE SERVICE INSTRUCTIONS SPECIFICATIONS & OPERATING DATA PARTS LIMITED WARRANTY SECTION 1: BEFORE INSTALLATION Congratulations! We believe your purchase of this water softener will prove to be a very wise choice. When properly installed, operated, and maintained, your new water softener will provide years of dependable service. - Page 4 Check Your Pumping Rate and Water Pressure: Two water system conditions must be checked carefully to avoid unsatisfactory operation or equipment damage: 1) MINIMUM water pressure required at the water softener inlet is 20 psi (138 kPa). CAUTION To reduce the risk associated with property damage due to water leakage: •...
- Page 5 Facts to Remember While Planning The Installation: 1) All installation procedures MUST conform to local and state plumbing codes. 2) If lawn sprinklers, a swimming pool, or geothermal heating/cooling or water for other devices/activities are to be treated by the water softener, a larger model MUST be selected to accommodate the higher fl...
-
Page 6: Installation
SECTION 2: INSTALLATION TREATED WATER TREATED SOFT WATER PRESSURE TANK BRINE TANK WELL WATER WATER BACKWASH FILTER SOFTENER PRESSURE SWITCH. CHECK VALVE TYPICAL WELL INSTALLATION TREATED WATER TREATED SOFT WATER WATER FOR LAWN SPRINKLERS OR OTHER HIGH DEMAND METER BRINE TANK WATER WATER... - Page 7 Step 1 If not factory pre-installed, attach bypass valve or yoke assembly using adapter couplings, clips and screws to control valve (Figure 2). On meter initiated models, attach meter between bypass valve and control valve (Figure 2). Figure 2. Softener And Brine Tank Assembly, Top View Step 2 Shut off all water at main supply valve.
- Page 8 Step 5 EQUIPMENT DRAIN LINE Attach drain line to drain line fi tting. To prevent back pressure from reducing fl ow rate below minimum AIR GAP required for backwash, drain line must be sized according to run length and relative height. Be careful not to bend fl...
- Page 9 Step 13 Set time of day (refer to appropriate How To Set Time Clock/Meter Regeneration Control, Section 3). When shifting to daylight saving time (and back), you may wish to adjust time of day accordingly. NOTE: time of regeneration is preset for 2:00 a.m. because at this time water consumption is generally minimal (a built-in hard water bypass does, however, permit water to be drawn during regeneration).
-
Page 10: Regeneration Instructions
SECTION 3: REGENERATION INSTRUCTIONS INSTRUCTIONS FOR USING REGENERATION FREQUENCY SCHEDULES: (Time clock initiated models only) Determine ADJUSTED HARDNESS by adding three (3) times the iron content in parts per million (ppm) to the hardness in grains per gallon (gpg). The result- ing number is ADJUSTED HARDNESS. - Page 11 REGENERATION FREQUENCY SCHEDULES (Cont'd) (TIMES PER 12 DAYS) Model CS2001 Persons Hardness -- GPG Family...
- Page 12 HOW TO SET TIME CLOCK REGENERATION CONTROL Above time clock shown in the SERVICE POSITION with dot opposite TIME OF DAY ARROW. HOW TO SET DAYS ON WHICH WATER SOFTENER IS TO REGENERATE: Rotate the skipper wheel until the number "1" is at the red pointer. Set the days that regeneration is to occur by sliding tabs on the skipper wheel outward to expose trip fi...
- Page 13 HOW TO SET REGENERATION CYCLE PROGRAM The regeneration cycle program on your water softener has been factory preset, however, portions of the cycle or program may be lengthened or shortened in time to suit local conditions. To expose cycle program wheel, grasp time clock in upper left-hand corner and pull, releasing snap retainer and swinging time clock to the right.
- Page 14 HOW TO SET METER REGENERATION CONTROL TYPICAL RESIDENTIAL APPLICATION: To program, just set the time, set the hardness and it automatically monitors system needs and regenerates only when necessary. To set time of day press red time set button and turn 24-hour gear until present time of day is opposite "time of day arrow." Set program wheel by lifting the "people" dial and rotating it so that the number of people in the household is aligned with the grains per gallon water hardness (adjusted hardness*) scale.
-
Page 15: Maintenance
Any type of water softener salt may be used. There are advantages and disadvantages to every type of salt. Please ask your local dealer for advice. Your unit is designed to compensate for the disadvantages. 3M does not recommend the use block type salt. -
Page 16: Service Instructions
SECTION 5: SERVICE INSTRUCTIONS PROBLEM POSSIBLE CAUSE SOLUTION Hard water, (unit not using salt; Electrical service to unit interrupted. Assure permanent electrical service (check fuse, plug, pull liquid level in brine tank not chain or switch). too high). Time clock not working. Replace time clock motor. - Page 17 SECTION 6: SPECIFICATIONS AND OPERATING DATA ITEM Time Clock CS1001 CS1501 CS2001 Metered CSM1001 CSM1501 CSM2001 Nominal Media Volume, cu. ft. (cu. mtr.) 1.0 (0.03) 1.5 (0.04) 2.0 (0.06) Salt Dose, lbs. (kg) Factory Setting 6 (2.7) 9 (4.1) 12 (5.4) Maximum Setting 15.0 (6.8) 24 (10.9)
-
Page 18: Parts
SECTION 7: PARTS COMPONENT PARTS LIST TWO TANK MODELS (CS & CSM SERIES) CS1001 CS1501 CS2001 DESCRIPTION CSM1001 CSM1501 CSM2001 Control Valve, Time Clock Initiation, with Cover, less Bypass (CS Series) C100150-5W3-2N1 C100240-5W3-2N1 C100240-5W3-2N1 Control Valve, Meter Initiation, with Cover, less Bypass (CSM Series) C12J150-5W3-2N1 C12N240-5W3-2N1 C12R240-5W3-2N1... - Page 19 CEC 1000 SERIES SOFTENER CONTROL - 12 DAY TIME CLOCK...
- Page 20 ONLY THOSE PARTS CIRCLED IN DRAWING AND/OR LISTED BELOW ARE STOCK ITEMS ALL OTHERS ARE SPECIAL ORDER, NON-RETURNABLE PARTS LIST - 12 DAY TIME CLOCK REF. PART NO. DESCRIPTION 60049/18706X 1" Bypass Valve Assy. (Incl. 1, 2, 7 & 2 ea. Ref. Items 3-5) 60049/18706-02X 3/4"...
- Page 21 CEC 1000 SERIES SOFTENER CONTROL - METER INITIATED...
- Page 22 ONLY THOSE PARTS CIRCLED IN DRAWING AND/OR LISTED BELOW ARE STOCK ITEMS ALL OTHERS ARE SPECIAL ORDER, NON-RETURNABLE METER INITIATED PARTS LIST REF. PART NO. DESCRIPTION 60049/18706X 1" Bypass Valve Assy. (Incl. Ref. Items 1, 2, 7, & 2 ea. Ref. Items 3-5) 60049/18706-02X 3/4"...
- Page 23 WIRING DIAGRAM FOR VALVE DRIVE MOTOR AND Time clock CEC 1000 SERIES VALVES TIMER MOTOR VALVE MOTOR PROGRAM WHEEL PROGRAM RE-SET SWITCH DRIVE CAM SWITCH BLACK RAPID RINSE SERVICE CAM SWITCH SERVICE CAM BRINE TANK RAPID RINSE FILL BRINE AND SERVICE RINSE BRINE...
-
Page 24: Limited Warranty
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOMER OR USAGE OF TRADE. If the Product is found defective within the warranty period, your exclusive remedy and 3M Purifi cation Inc.’s sole obligation shall be, at 3M Purifi cation Inc.’s option, to replace or repair the Product or refund the purchase price of the Product.
