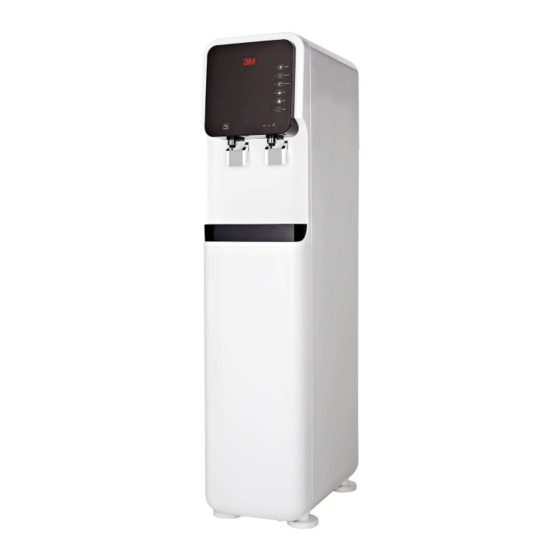

FILTERED WATER DISPENSER
HCD-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCD-1 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M HCD-1

Summary of Contents for 3M HCD-1

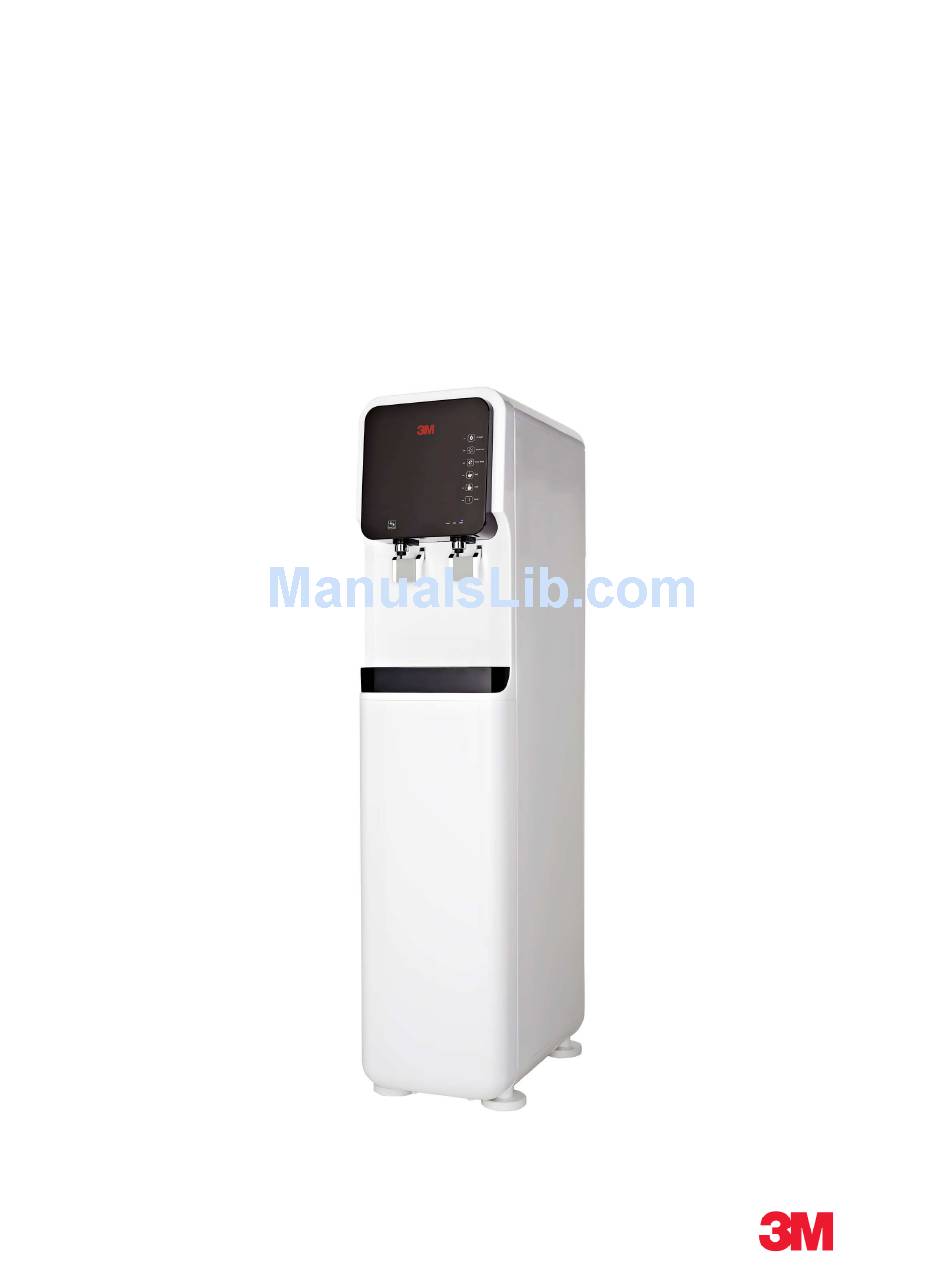

  • Page 1 Water Filtration Solutions Operating Instructions FILTERED WATER DISPENSER HCD-1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ..................3 WARNING ..........................3 CAUTION ..........................4 NAMES OF PARTS ....................5 WATER FLOW SCHEMATIC DIAGRAM ..............6 PANEL CONTROL ....................7 PANEL FUNCTIONS ........................7 HOW TO USE ......................8 INSTRUCTION BEFORE USE ....................... 8 HOW TO USE PANEL FUNCTIONS ....................

  • Page 3: Safety Information

    • Do not use the equipment if there is any damage to power cord, plug or the outlet. • Damaged parts are only to be repaired or replaced by 3M certified professionals. • In case of water leakage, please unplug the device immediately.

  • Page 4: Caution

    CAUTION Issues During Installation/Use • Do not use excessive force to pull the hot and cold water levers. It may cause damage or malfunction. • Do not clean the equipment using strong chemicals such as benzene or thinner. • Do not disconnect the hose at the back of the equipment or move the equipment while it is in operation, as this may lead to water leakage and potential breakdown.

  • Page 5: Names Of Parts

    NAMES OF PARTS...

  • Page 6: Water Flow Schematic Diagram

    WATER FLOW SCHEMATIC DIAGRAM...

  • Page 7: Panel Control

    PANEL CONTROL CONTROL PANEL FUNCTIONS FUNCTIONS 1. UV • Switch on/off the UV filter on/off the UV filter 2. Auto Dispense Auto Dispense • Function 1: Dispense up to 1 liter of cold water with one convenient touch. Function 1: Dispense up to 1 liter of cold water with one convenient touch. Function 1: Dispense up to 1 liter of cold water with one convenient touch.

  • Page 8: How To Use

    5. Cold Water • Function 1: Switch Function 1: Switch on/off the cold water function. • Function 2: Function 2: Adjust and set cold water temperatures. 6. Power • Switch on/off the dispenser. on/off the dispenser. 7. Safety Lock • Lock/unlock hot water dispensing lever. Lock/unlock hot water dispensing lever.

  • Page 9: How To Use Panel Functions

    HOW TO USE PANEL FUNCTIONS PANEL FUNCTIONS Cold Water 1. Ensure that the dispenser is switched on. Ensure that the dispenser is switched on. 2. Tap the Cold button. Tap the Cold button. • A beep sounds once and the Cold i A beep sounds once and the Cold indicator lights up.

  • Page 10: How To Customize Water Temperature

    • While the touch screen panel is locked, you can dispense hot/cold water the touch screen panel is locked, you can dispense hot/cold water the touch screen panel is locked, you can dispense hot/cold water. 2. To unlock the panel, To unlock the panel, tap and hold the Auto Dispense button for three seconds.

  • Page 11: How To Clean Excess Water Receiver

    • When the indicator is at level 4, tapping the Cold button will bring the Cold Water Temperature to level 0. 4. After the temperature is set, tap the Power button to save the settings, or wait for 10 seconds for the settings to be saved automatically.

  • Page 12: Troubleshooting Guide

    Drain the hot water tank and refill it before re- or smell time. use. The filter needs to be replaced. Replace the filter. Please contact 3M certified professional. The dispenser is not used for a long The tank needs to be cleaned. Please contact time.
  • Page 13 Close the water supply valve, unplug the equipment, and contact 3M certified professionals. Condensation on Environment is too humid Remove the source of humidity or contact 3M cold parts of the certified professionals to relocate the dispenser dispenser. Unable to stop Auto Dispense is switched on.

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS Filtration System DWS160-L Drinking Water Filtration System UV Lamp Removal Capabilities Up to 99.99% of water-borne Bacteria Cyst, Lead, Benzene, Toxaphene, P-Dichlorobenzene (Certified by NSF Standard 53) Chlorine, Taste and Odor (Certified by NSF Standard 42) Micron Rating 0.2 micron Filtration Capacity 6,000 gallons (22,712 litres)
  • Page 15 Product, model number and alleged defect. Limitation of Liability: 3M Technologies (Singapore) Pte Ltd will not be liable for any loss or damage arising from this product, whether direct, indirect, special, incidental, or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.
  • Page 16 3M Purification Division 3M Technologies (Singapore) Pte Ltd 1 Yishun Avenue 7 Singapore 768923 Telephone: +65 6450 8888 Email: innovation.sg@mmm.com Website: http://www.3Mpurification.sg/dispenser 3M Authorized Distributor 3M is a trademark of 3M Company. © 2012 3M Company. All rights reserved.
