HP Linux workstation x1100 Getting Started Manual page 17

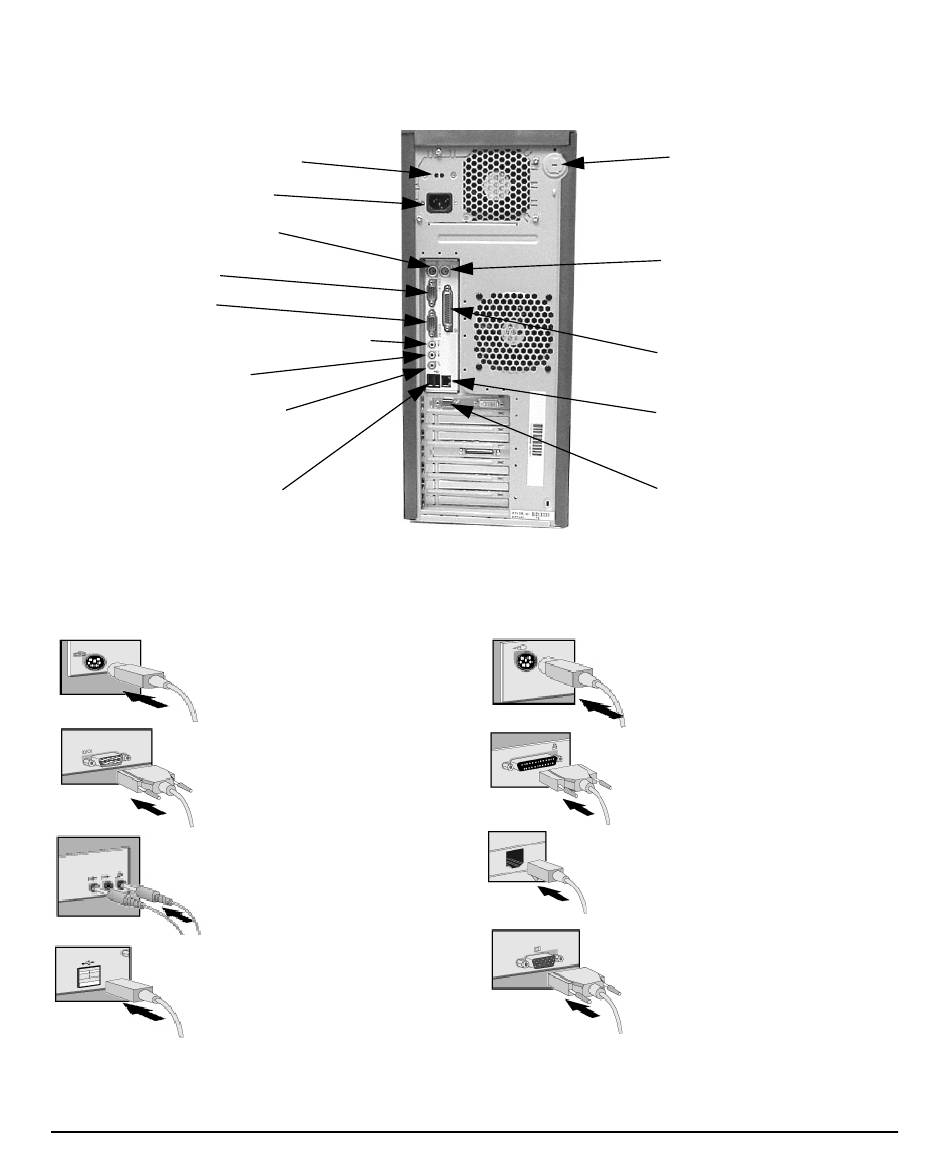

Figure 1-1
Line Voltage Switch
Power Connector
Keyboard connector
Serial port A
Serial port B
Line Out (headphone) connector
Line In connector
Microphone connector
Dual USB connectors
Figure 1-2
Keyboard (purple)
Two 9-pin Serial connectors
(turquoise)
Audio connectors:
Microphone (pink)
Audio In (blue)
Audio Out (lime green)
Note: plugging in the audio
out connector disables the
internal speaker
Two USB connectors (black)
Chapter 1
Location of Rear Panel Connectors
Match the color-codes of the connectors. The connectors are shaped to go
in one way only. Figure 1-2 shows typical connectors.
Typical Connectors
setting up and using your workstation
setting up your hp workstation x1100
Cover lock
Mouse connector
Parallel port
LAN connector
Monitor connector
Mouse (green)
25-pin Parallel connector
(burgundy):
Refer to the manual that came
with the printer.
LAN:
You must use the network card
connector to connect to a LAN.
Monitor connector:
Refer to the manual that came
with the monitor. You must use
the graphics card connector to
connect your monitor.
17
