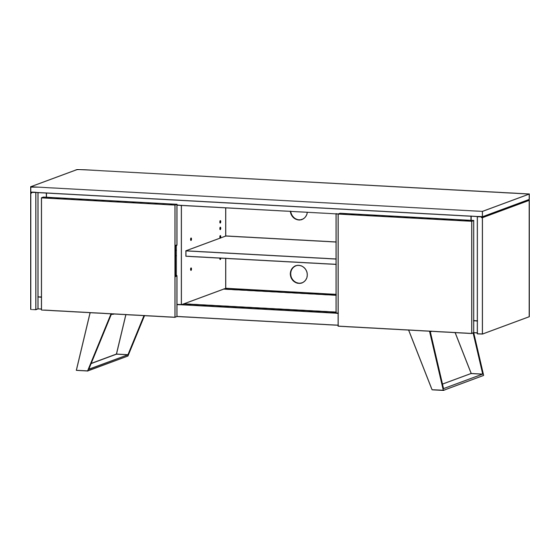

- Page 1 Lowry / Mitchell / Fulton TV Media Stand Model # AXCLRY-08-WHG...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty Automatic entry to win a $500 gift certificate ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
- Page 6 Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
-
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. - Page 8 Pre-Assembly Information Model # AXCLRY-08-WHG Part Description BOTTOM SHELF LEFT SIDE QTY 1 QTY 1 QTY 1 RIGHT SIDE LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 DOOR (L&R Same) SIDE SHELF MIDDLE SHELF QTY 2 QTY 2 QTY 1 Warning Label BACK PANEL...
- Page 9 Pre-Assembly Information Model # AXCLRY-08-WHG Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY SCREW M8 x 20 mm M6 X 30mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 12 QTY 24 QTY 12 QTY 12 PHILLIPS SCREW ALLEN KEY...
- Page 10 Components - Key Diagram Model # AXCLRY-08-WHG...
- Page 11 Assembly Model # AXCLRY-08-WHG Step 1 & 1. Insert two Dowels 11 into drilled holes on each Left Divider DL and Right Divider DR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCLRY-08-WHG Step 2 1. Attach Right Divider DR and Left Divider DL to Bottom Shelf B using six Allen Key Screws 4 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 13 Assembly Model # AXCLRY-08-WHG Step 3 & 1. Insert two Dowels 11 into drilled holes on each Left Side CL and Right Side CR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 14 Assembly Model # AXCLRY-08-WHG Step 5 1. Repeat Step-4 for Right Side CR .
- Page 15 Assembly Model # AXCLRY-08-WHG Step 6 1. Attach Top A to Sides CL , CR using six Allen Key Screws 4 ( three Screws / each Side ). 2. Attach Top A to Dividers DL , DR using six Allen Key Screws 4 ( three Screws / each Side ).
- Page 16 Assembly Model # AXCLRY-08-WHG Step 7 1. Attach Legs I to Bottom Shelf B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure part I and B (six Bolts, six Lock Washers and six Washers on each Leg). 3.
- Page 17 Assembly Model # AXCLRY-08-WHG Step 8 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach the Top Back Panel H to back frame by using Phillips Screws 6 .
- Page 18 Assembly Model # AXCLRY-08-WHG Step 9 1. Attach Adjustable Hinges 12 to Doors E using Phillips Screws 10 into guide holes on Doors E .
- Page 19 Assembly Model # AXCLRY-08-WHG Step 10 1. Attach Adjustable Hinges 12 on Doors E to Sides CL , CR using Phillips Screws 10 into guide holes on Sides CL , CR . 2. Attach Magnets 7 using Phillips Screws 9 into guide holes on Left Divider DL and Right Divider DR .
-
Page 20: Important Note
Assembly Model # AXCLRY-08-WHG IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 21 Assembly Model # AXCLRY-08-WHG Step 11 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 F & 1. Use four Shelf Supports 8 for each Shelf F , G in desired location . 2. Two Shelf Supports 8 may be used on back top of each Shelf F , G as a tipping restraint.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
