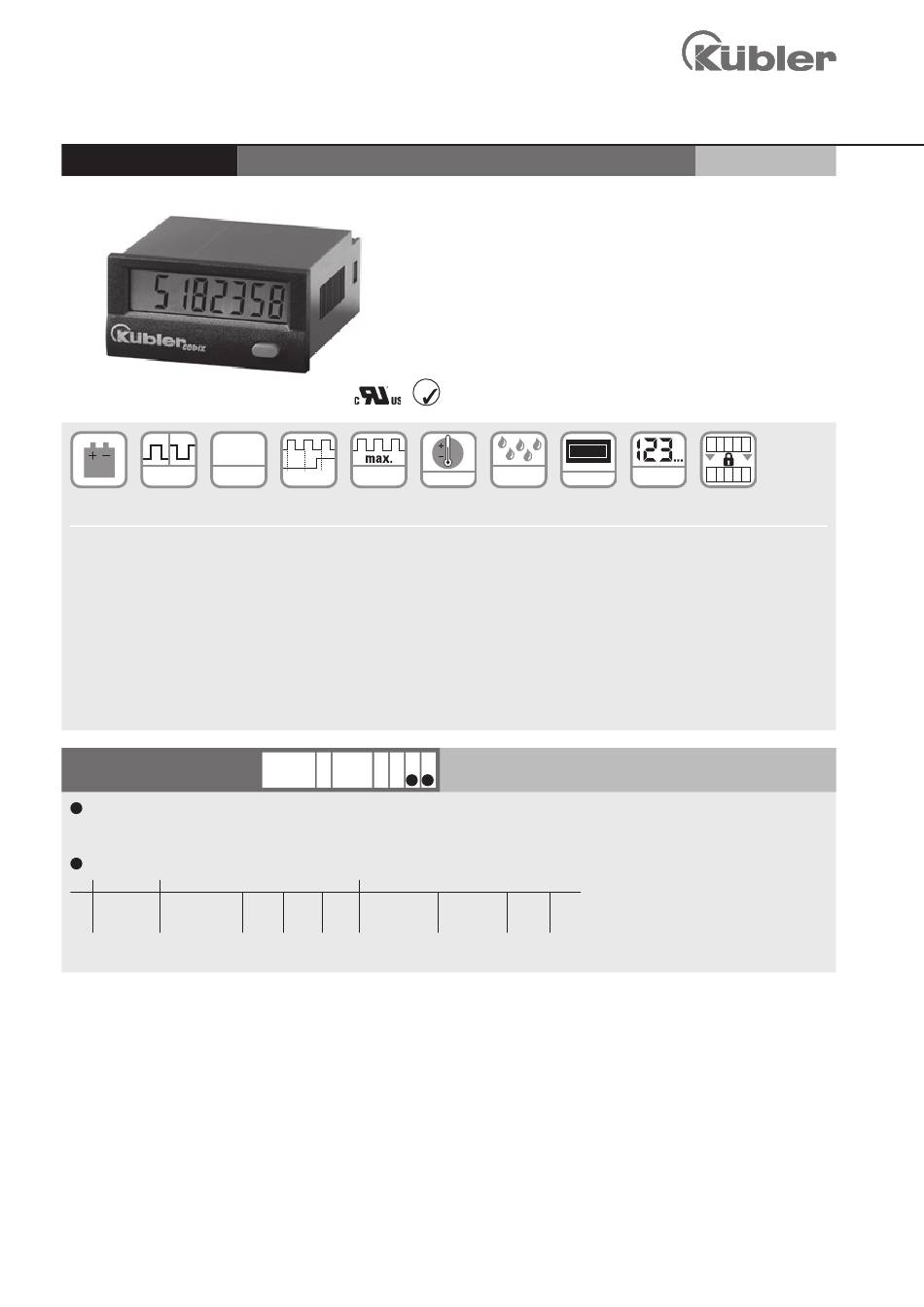

Kübler Codix 132 Manual

Pulse counters, electronic
LCD pulse counters
AC/DC
PNP/NPN 10...260 V
Battery Pulse counter/ Pulse voltage
powered Totaliser
Powerful
• High quality LCD display with 8 mm high figures
• Count direction adding and subtracting via direction input
• Battery life approx. 8 years
• Optional display backlighting
• Filter function for bounce-free counting with mechanical
contacts
• Count frequency max. 30 Hz
• High protection level IP65
Order code
a
Backlighting
1)
5 = without
6 = with 1)
b
Count input (input type: count) – single-channel, adding or subtracting counting
Input type INP A
3 1) = Cnt.Dir 2) 10 ... 260 V AC/DC
1) Stock types
2) Counting input with counting direction input
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
With count direction AC (battery)
RoHS
30 Hz
1 2 1
Count with Max. count
direction (DIR) frequency
6.132 . 012 . 8 X 3
a b
INP B
Direction AC/DC 30 Hz 10 ... 260 V AC/DC count
The Codix 132 is a simple battery powered pulse counter with
count and count direction input, 8-digit LCD display, optional
backlighting, for high voltage applications 10 ... 260 V AC/DC.
000000
IP65
-10°... +60°C
DIN 48 x 24
Temperature High protection DIN front bezel
range level
Simple
• Screw terminals, RM 5 mm
• Reset key lockable via the input ‚Reset Enable'
• High voltage version for 10 ... 260 V AC/DC voltage pulses
• Large 8-digit LCD display with 8 mm high figures
Delivery specification
– Pulse counter
– Mounting clip
– Front bezel for screw mounting (T008181)
– Front bezel for clip mounting (T008180)
AC/DC 30 Hz
– Gasket
– Instruction manual, multilingual
Codix 132
1 2 3 4 5
0 0 0 0 0
8 LCDs
LCD display Lockable
reset
56 x 40 mm [2.20 x 1.57"],
panel cut-out 50 x 25 mm [1.97 x 0.98"]
53 x 28 mm [2.09 x 1.10"],
panel cut-out 50 x 25 mm [1.97 x 0.98"]
