AmpliVox W250 Assembly Instructions

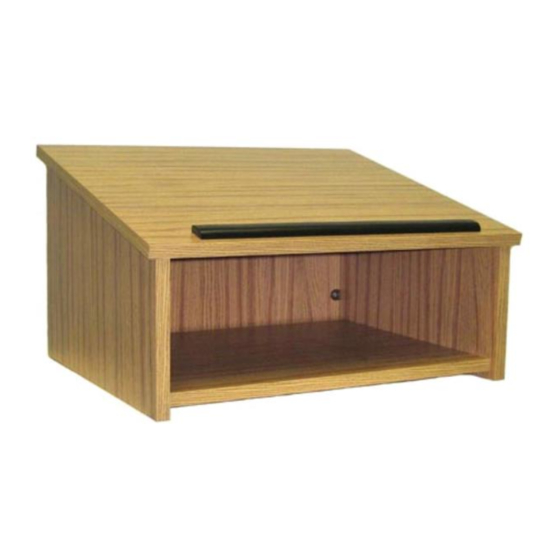

Thank you for choosing the W250 Lectern from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique lectern. Our lectern combines flexibility with functionality. Please refer to this
user guide as you enjoy the unique capabilities of another quality product from AmpliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty coverage, sign up to receive
our newsletter, download our catalog, and learn more about the complete line of AmpliVox audio visual products, including
portable PA systems, and other lecterns.

PANEL DESCRIPTIONS

Panel 2 - Left Side Panel

HARDWARE LIST

ITEM DESCRIPTION
A Cam Lock

GETTING STARTED

Unpack all panels from shipping box. Locate accessories and open.
TOOLS NEEDED: Philips Screw Driver, Rubber Mallet

CAM LOCK AND DOWEL PIN INSTALLATION

·
Locate Panels (1) (2) (3) (4) (5), including item (A) . Lay all the panels on a flat sur-
face with the side that has all the cutouts facing up.
·
Take one item (A) Cam Lock, and press into each cutout with your fingers or softly
tap in with rubber mallet.
·
Repeat on all panels.

ASSEMBLY

·
With the Front Panel (1) still on a flat surface take one of the side panels (2) (4) and align
the holes with the cam locks sticking out from Panel (1). Tap in place.
·
Lock panels in place by rotating cam lock with screw driver, turning lock clockwise until
you can not turn any more.
Ready to Assemble Lectern
Panel 3 - Top Reading Surface
Panel 1 - Front Panel
A
QTY
12
Assembly Instructions
W250
Panel 4- Right Side Panel
Panel 5— Shelf
Lock cam locks.
2 or 4
1
