Summary of Contents for Daewoo KOR-63D7
- Page 1 S/M No. : R63D79S002 Service Manual Microwave Oven Model: KOR-63D7 DAEWOO ELECTRONICS CO., LTD.
-
Page 2: Safety And Precautions
SAFETY AND PRECAUTIONS 1. FOR SAFE OPERATION Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator. IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE. (Only a trained service personnel should make repairs.) (1) A broken door hinge. -
Page 3: Specifications
SPECIFICATIONS MODEL KOR-63D7 POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH GROUNDING MICROWAVE 1200W POWER GRILL CONSUMPTION COMBINATION MICROWAVE ENERGY OUTPUT 800W MICROWAVE FREQUENCY 2450MHz OUTSIDE DIMENSIONS 465 x 279 x 364 mm (18.3 x 11.0 x 14.4 in) CAVITY DIMENSIONS 290 x 220 x 306 mm (11.4 x 8.7 x 12.0 in) NET WEIGHT APPROX. -

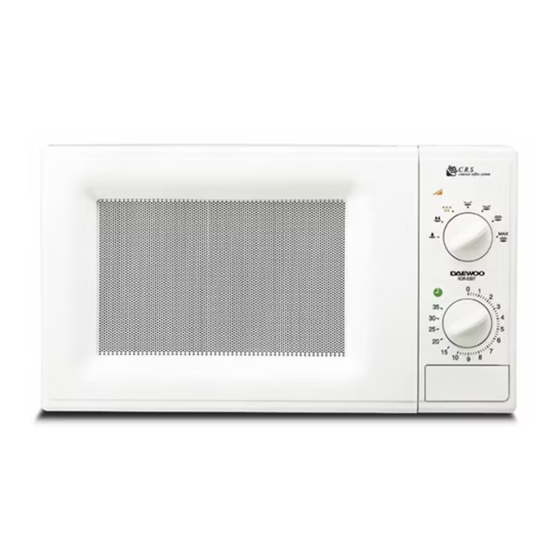

Page 4: External View
EXTERNAL VIEW 1. OUTER DIMENSION 2. FEATURE DIAGRAM 1. SAFETY INTERLOCK SYSTEM 7. ROLLER GUIDE This must always be used for cooking together with the 2. DOORVIEWING SCREEN glass cooking tray. Allos viewing of food. The screen is designed so that light can pass through, but not the microwave. -
Page 5: Installation
• This appliance is supplied with cable of special type, which, if damaged, must be repaired with cable of same type. Such a cable can be purchased from DAEWOO and must be installed by a Qualified Person. 6. Examine the oven after unpacking for any damage such as: A misaligned door, broken door or a dent in cavity. -
Page 6: Operations And Functions
OPERATIONS AND FUNCTIONS 1. Connect the main lead to an electrical outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always be in place during cooking. 3. -
Page 7: Disassembly And Assembly
DISASSEMBLY AND ASSEMBLY Cautions to be observed when trouble shooting. Unlike many other appliances, the microwave oven is high-voltage, high-current equipment. It is completely safe during normal operation. However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit. You are asked to observe the following precautions carefully. - Page 8 3. To remove door parts. REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK 3512203880 FRAME DOOR PP SI83C KOR-63D7 3517007300 BARRIER-SCREEN *O PET T0.125 3515204100 STOPPER HINGE *T AS KOR-63150S 3511705500 DOOR WELD ASSY KOR-61150S 3517002800 BARRIER SCREEN *I PE T0.1...
- Page 9 (1) Remove the gasket door from door weld as. (2) Remove the door frame from door weld as. (3) Remove the stopper hinge top from door weld as. (4) Remove the spring and the hook. (5) Remove the barrier screen outer from door frame. (6) Reverse the above steps for reassembly.
- Page 10 PART CODE PART NAME DESCRIPTION Q’TY REMARK 3513405500 KNOB VPC ABS XR-401 H-2938 3516725300 CONTROL-PANEL ABS SG-0760D SG-175 (KOR-63D7) 3515101600 SPRING FLAT SUS 301 T0.5 3517400510 COUPLER VPC KNOB 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 3517400400 COUPLER TIMER 3518204300...
- Page 11 6. To remove high voltage capacitor. 1) Remove a screw which secure the grounding ring terminal of the H.V. diode and the capacitor holder. 2) Remove the H.V. diode from the capacitor holder. 3) Reverse the above steps for reassembly. High voltage circuit wiring 7.
- Page 12 NOTE : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to pre- vent microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It shall not exceed 4mW/cm for a fully assembled oven with door normally closed. 8.
-
Page 13: Interlock Mechanism And Adjustment
INTERLOCK MECHANISM AND ADJUSTMENT The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave. (1) Primary interlock switch When the door is closed, the hook locks the oven door. -
Page 14: Measurement And Test
MEASUREMENT AND TEST 1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below. PROCEDURE 1. Microwave power output measurement is made with the microwave oven supplied at rated voltage and operated at its maximum microwave power setting with a load of 1000±5cc of potable water. - Page 15 2. MICROWAVE RADIATION TEST WARNING : Make sure to check the microwave leakage before and after repair of adjustment. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy. Do not place your hands into any suspected microwave radiation field unless the safe density level is known. Care should be taken not to place the eyes in direct line with the source of microwave energy.
- Page 16 3. COMPONENT TEST PROCEDURE • High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle. • It is neither necessary nor advisable to attempt measurement of the high voltage. • Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor.
-
Page 17: Wiring Diagram
WIRING DIAGRAM... -
Page 18: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST 1. DOOR ASSEMBLY Refer to Disassembly and assembly. 2. CONTROL PANEL ASSEMBLY Refer to Disassembly and assembly. 3. TOTAL ASSEMBLY... - Page 19 PART CODE PART NAME DESCRIPTION Q'TY 3511714420 DOOR AS KOR-63D59A 3516720620 CONTROL-PANEL AS KOR-63D79S 3510805000 CABINET SECC T0.5 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 3516109000 CAVITY WELD AS CAVITY WELD AS 3516109600 CAVITY JOINT AS KOR-63150S 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 7122401211 SCREW TAPPING...
- Page 20 VP-533A-OF SPNO #187 200G 4415A66910 SW MICRO VP-531A-OF/SZM-V16-FA-61 4415A17352 SW MICRO VP-533A-OF SPNO #187 200G 3513702600 LEVER LOCK 3513811730 LOCK POM NATURAL (KOR-63D7) 3513601600 LAMP BL 240V 25W T25 C7A H187 3512714500 HARNESS MAIN KOR-6315OS 7121400611 SCREW TAPPING T2S PAN 4X6 MFZN 3966310100 MOTOR SYNCRO 220V 2.5W GM-16-24FD12...
