Summary of Contents for Daewoo KOR-6315
-

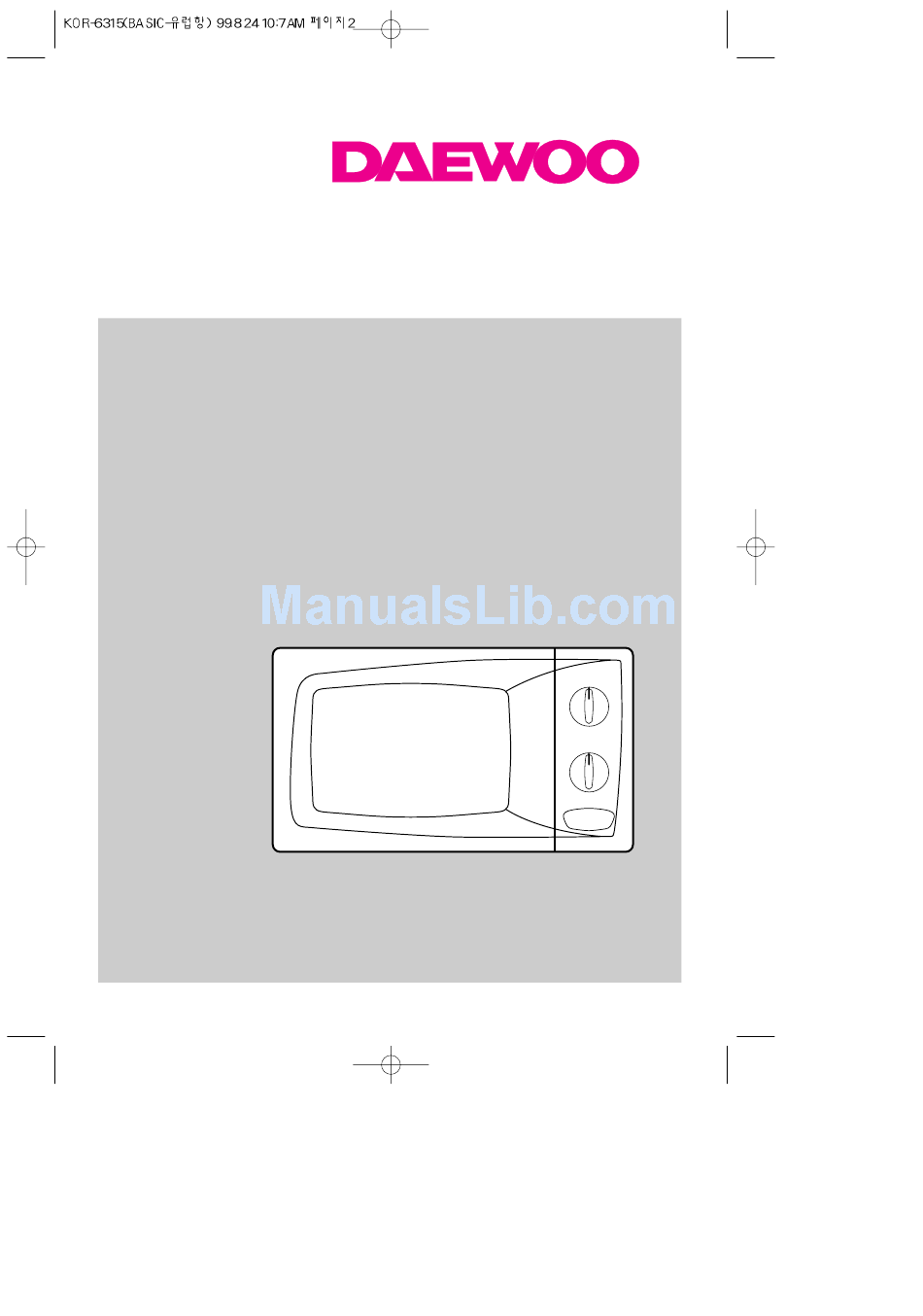

Page 1: Microwave Oven
MICROWAVE OVEN OPERATING INSTRUCTIONS KOR-6315 Model No.: Before operating this oven, please read these instructions completely. -
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. -
Page 4: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTIONS WARNING:To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes. -
Page 5: Features Diagram
FEATURES DIAGRAM 1 Safety Interlock System. 2 Door Viewing Screen - Allows viewing of food. The screen is designed so that light can pass through, but not the microwave. 3 Door Hook - When door is closed, it will automatically lock shut. If the door is opened while the oven is operating, magnetron will immediately stop operating. -
Page 6: Operation
OPERATION Connect the mains lead to an electrical outlet. After placing the food in a suitable utensil, open the oven door and put it on the glass tray. Glass tray must always be in place during cooking. Shut the door. Make sure that it is firmly closed. -
Page 7: Care And Cleaning
CARE AND CLEANING Although your oven is provided with safety features, it is important to observe the following: 1. It is important not to defeat or tamper with safety interlocks. 2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. -
Page 8: Specifications
SPECIFICATIONS POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH EARTHING MICROWAVE POWER CONSUMPTION 1200 W OUTPUT POWER 800 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 465 X 279 X 360 mm CAVITY DIMENSIONS (W X H X D) 290 X 220 X 306 mm NET WEIGHT APPROX.
