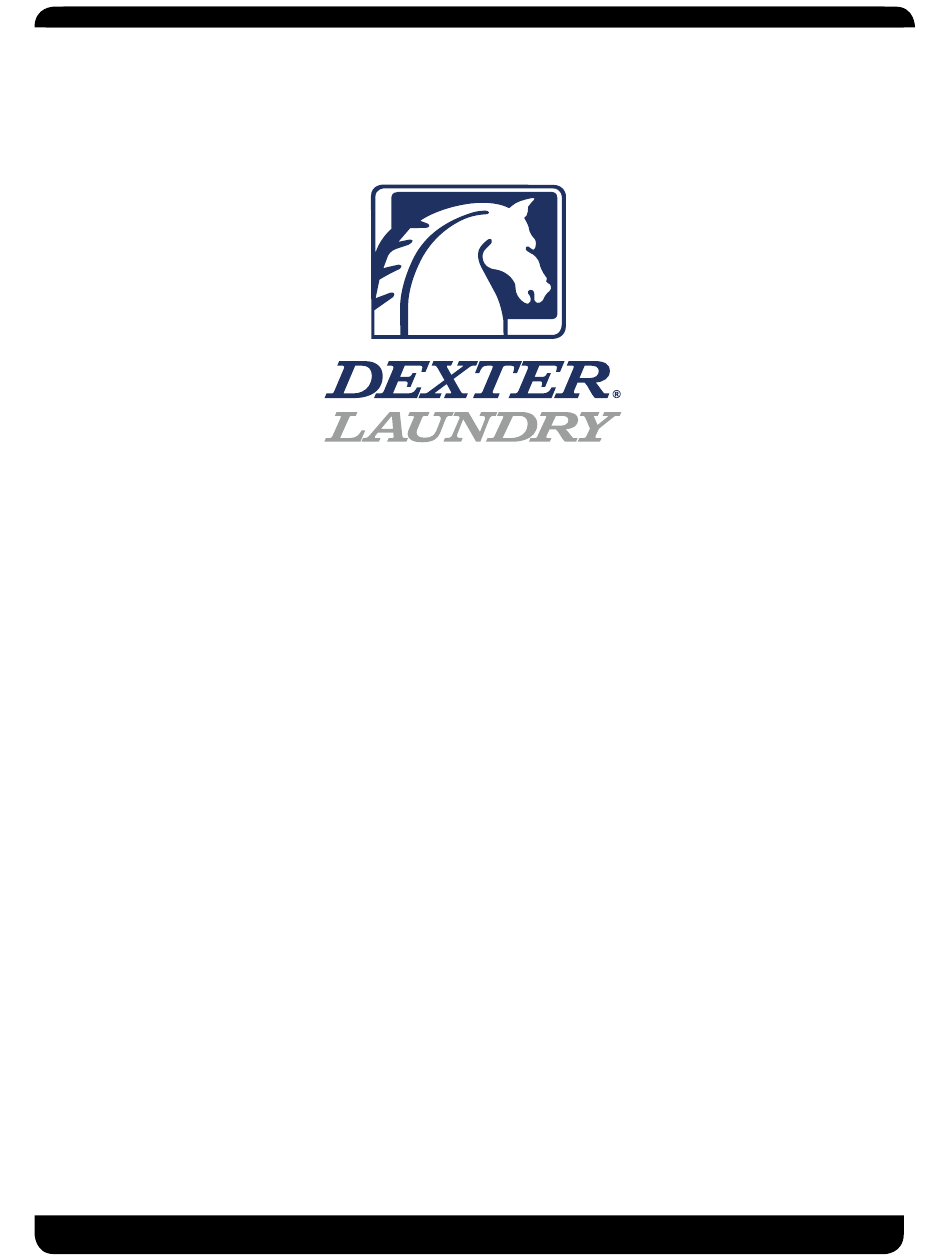

USE THE BLUE TABS LOCATED ON THE
RIGHT AND LEFT SIDES OF THE FOLLOWING
DOCUMENT TO ADVANCE TO EACH SECTION.
8533-115-001 3/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dexter Laundry C Series

Summary of Contents for Dexter Laundry C Series

  • Page 1 USE THE BLUE TABS LOCATED ON THE RIGHT AND LEFT SIDES OF THE FOLLOWING DOCUMENT TO ADVANCE TO EACH SECTION. 8533-115-001 3/22...
  • Page 2 C-Series Accessories Kits, Assemblies, & Common Parts WC0350XB-12EC4X 208-240 volts 60hz. Single Phase or Three Phase Coin Acceptor Components Part Number Optical Coin Acceptor 9021-092-002 WC0450XB-12EC4X 208-240 volts 60hz Single Phase or Three Phase Optical Coin Switch Replacement 9801-099-001 Coin Drop Screws 9545-053-002 Retainer, Coin Acceptor 9486-149-001...
  • Page 3 Wiring Harness Part # by Model Description T350 T450 Control Panel Wiring Harnesses Wiring Harness, Door Lock 9627-791-003 9627-791-003 Wiring Harness, Drain/Thermo/DoorSol 9627-796-001 9627-796-001 Wiring Harness, Relay Board to Control Board (P20/P21) 9627-793-001 9627-793-001 Wiring Harness LED PCB Board to Control Board 9627-797-001 9627-797-001 Control Trough Wiring Harnesses...
  • Page 4 Cabinet and Front Panel Group Part # by Model Description T-350 T-450 Description T350 T450 Panel, Side (Left or Right) - stainless 9732-359-007 Panel, Right Side-stainless 9989-640-001 Panel, Left Side - stainless 9989-640-002 Screw, (Side Panel to Base) 9545-018-018 9545-018-013 Nut, Hex 1/4-20 UNC 8640-414-006 8640-414-006...
  • Page 5 Cabinet and Front Panel Group Part # by Model Continued Notes 24, 25 Description T350 T450 Panel Top, Assembly (includes catch) 9989-498-002 9989-563-004 Catch, Top Panel 9086-017-001 9086-017-001 Rivit-Catch, Top Panel 8638-190-009 8638-190-009 Lock, Top (w/Key) 8650-012-003 8650-012-003 Lock Spacer 9538-189-001 9538-189-001 Key, Top- # 6324...
  • Page 6 Rear View Access Part # by Model Description T350 T450 Drive Motor, 3 Phase (Inverter duty) 9376-307-001 9376-319-001 Pulley, Motor 9453-180-001 9453-181-001 Set Screw,Sq.Hd(motor pulley) 9545-028-015 9545-028-015 Rod, Motor Mtg 9497-222-002 9497-222-002 Screw (end of motor rod) 9545-029-005 9545-029-005 Lockwasher (end of motor rod) 8641-582-014 8641-582-014 Motor Bushing (Rubber)
  • Page 7 Cylinder, Seals & Bearings Part # by Model Description T350 T450 Bearings and Seal Kit 9732-219-008 9732-219-005 Housing, Bearing- Assembly (items #2-#6) 9803-179-003 9803-186-001 Housing, Bearing 9241-169-002 9241-180-002 Bearing, Front (LARGE) 9036-159-009 9036-159-005 Bearing, Rear (SMALL) 9036-159-008 9036-159-004 Spacer, Bearing 9538-158-001 9538-167-001 Ring, Bearing Retainer...
  • Page 8 Door Latching Assembly Part # by Model Contuied Description T350 T450 Screw, Hx. 10-32 x 1” 9545-012-020 9545-012-020 Nut, Elastic Stop 10-32 8640-413-004 8640-413-004 Spring, Return 9534-364-001 9534-364-001 Pin, Guide 9451-193-001 9451-193-001 Ring, Retaining 9487-200-005 9487-200-005 Washer 8641-581-031 8641-581-031 Switch, Latching Sensing 9539-461-008 9539-461-008 Shield, Switch...
  • Page 9 Gear Motor Door Lock Assembly Notes Description T350 T450 Actuator Assembly (Includes 1-12, Rod NOT included) 9892-015-001 9892-015-001 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 Bracket Slide Lock 9029-204-001 9029-204-001 Spacer, Plastic 9538-157-021 9538-157-021 Arm - Door Lock 9001-063-001...
  • Page 10 Loading Door Part # by Model Description T350 T450 Loading Door, Complete #1-10 9960-308-001 9960-309-001 Loading Door, Ring 9487-264-002 9487-265-002 Gasket, Loading Door 9206-411-002 9206-419-001 Window, Loading Door 9635-018-001 9635-016-001 Shaft Assy, Locking (includes 4 thru 7) 9913-136-001 9913-136-001 Shaft, Door Locking 9537-195-002 9537-195-002 Cam, Locking...
  • Page 11 Drain Valve Group Part # by Model Loading Door Hinge 180 Degree Opening Description T350 T450 Valve, Drain (includes #2 thru #11) 9379-199-001 9379-202-001 Description T350 T450 Body, Valve (w/ball) 9064-068-002 9064-072-001 Door Hinge Assembly (mounts to tub front) 9955-030-001 9955-030-001 Motor &...
  • Page 12 Chassis and Drain Part # by Model Description T350 T450 Base Assy,Frame 9945-119-002 9945-141-002 Outer Tub Assy 9930-160-001 9930-162-001 Tub & Cylinder Assy 9869-029-002 9869-031-001 Ring Assy, Tub Mtg-Front 9950-057-002 9950-051-004 Bolt, 1/2-13x1 1/4 (Ring to Base) 9545-017-009 Nut, Wizlock, 1/2-13 (Ring to Base) 8640-417-005 Bolt, 5/8-11x1 1/2 (Ring to Base) 9545-060-001...
  • Page 13 Water Inlet Valve Breakdown Part # by Model Notes Description T350 T450 Valve, Water Inlet (includes 1 thru 6) 9379-183-012 9379-183-012 Screen, Inlet end of valve 9555-056-001 9555-056-001 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001...
  • Page 14 Water Inlet & Rear Channel 36,37 Key Description T350 T450 Channel Assembly, Rear 9947-025-001 9947-026-001 Screw, #10B x 1/2 9545-008-026 9545-008-026 Nut, Spring 8640-399-007 8640-399-007 Mounting Plate Water Valves 9452-813-001 9452-813-001 Nut-Elastic stop, #10-32 8640-413-002 8640-413-002 Valve, Water Inlet (dual outlet) (see Water Inlet Valve Breakdown for individual 9379-183-012 9379-183-012 parts)

  • Page 15: Electrical Components - Top Compartment

    Electrical Components - Top Compartment Description T350 T450 Trough Assy,Control 208-240 volt (all parts below 7-28 & trough) 9857-255-001 9857-257-001 Trough only 9839-018-001 9839-018-001 Screw, Trough Sides 9545-008-026 9545-008-026 Lockwasher Exttooth #10 8641-582-006 8641-582-006 Angle Support Trough 9003-337-001 9003-337-001 Screw, Trough Bracket 9545-008-026 9545-008-026 Screw GRN.
  • Page 16 Control Panel Part # by Model Description T350 T450 Panel Control Assembly(panel only) 9989-557-001 9989-558-001 Screw, to Side Panels 5/16, Hxwshrhdundct #10Bx 1/2” 9545-008-026 9545-008-026 Plate-Latch, Top 9452-625-001 9452-625-001 Nut, #8-32 8640-412-005 8640-412-005 Post Locator Top 9467-024-001 9467-024-001 Nut Hexkeps #6-32 8640-411-003 8640-411-003 Locator Panel...
  • Page 17 Labels and Diagrams WC0 Models Notes Description T350 T450 Wiring Diagram and Schematic, Coin 9506-872-001 9506-873-001 Instructions Spin Direction 8507-273-001 8507-274-001 Transient Voltage Surge Suppressor Infomational 8507-330-001 8507-330-001 Label High Voltage Warning 8502-614-004 8502-614-004 Label Fusing & Installation 8502-619-004 8502-619-004 Label Quality 8511-001-002 8511-001-002...
  • Page 18 Notes Section 9: Coin Handling Parts: Wiring Diagrams & Schematics & maintenance Procedures Part # 8533-115-001 3/22 Part # 8533-115-001 3/22...
  • Page 19 Kit - Electronic Acceptor Optical Coin Acceptor (USA and Canada) Description T350 T450 Description T350 T450 KIT - Electronic Acceptor Conversion for C-Series (USA and Canada) 9732-301-004 9732-301-004 Optical Coin Acceptor 9021-092-002 9021-092-002 Contact the Dexter Factory for Other Countries Replacement Optical Sensor 9801-099-001 9801-099-001...

  • Page 20: Dip Switches

     Electronic Acceptor Coin Drop Setting the electronic coin acceptor switches Some washer models come equipped with an electronic coin acceptor. Follow the instructions below for setting the switches for the desired country and currencies. 1. The electronic coin acceptor has switch settings depending on the coins and country. See the table below for available values of the left and right coin inputs for the available countries.
  • Page 21         Part # 8533-115-001 3/22 Part # 8533-115-001 3/22...

  • Page 22: Maintenance Instructions

    Maintenance Instructions Notes Electronic Acceptor Cleaning the electronic coin selector The EMP 500 v5 is an extraordinarily robust coin selector and operates relatively maintenance free. However, it should be cleaned at regular intervals (minimum once a year) especially if it is operating in an environment with high levels of dust, smoke or nicotine.

  • Page 23: Wiring Diagrams & Schematics

    Notes Section 10: Parts 50Hz Models: Parts in this section used only in these models. All other parts are same as standard 60 Hz pages. Wiring Diagrams & Schematics Part # 8533-115-001 3/22 Part # 8533-115-001 3/22...
  • Page 24 Water Valve Assy # by Model 50Hz. Key Description T350 T450 Circuit Breaker 5198-211-002 5198-211-002 Transformer 200/250V-24V 8711-004-004 8711-004-004 Hose Inlit 9990-027-014 9990-027-014 Harness, Power Terminal Block 9627-747-006 9627-747-006 Harness Main, V1.5 9627-914-001 9627-914-001 Harness, Coin Accecptorless 9627-895-001 9627-895-001 Wiring Label , Schematic & Diagram 9506-887-001 9506-888-001 Owners Booklet...
  • Page 25 Door Lock Motor Assy # by Model 50Hz. Drain Valve Group Part # by Model 50Hz. Description T350 T450 Valve, Drain (includes #2 thru #11) 9379-199-002 9379-202-002 Body, Valve (w/ball) 9064-068-002 9064-072-001 Motor & Gear Train (complete) 9914-137-019 9914-137-022 Plate, Motor Mtg 9452-538-001 9452-538-001 Screw...
  • Page 26 T-350 -59 Schematic CE Parts Group (-59) After Serial # Description T-350 T-450 Controls Assembly - Trough, 9839-018-001 9839-018-001 Circuit Breaker 5198-211-002 5198-211-002 Instructions, Transformer Connect 8507-449-004 8507-449-004 Controls Transformer 8711-004-004 8711-004-004 Transformer 8711-009-003 8711-009-003 Terminal Strip Marker 9558-028-002 9558-028-002 Line Reactor 9477-006-001 9477-006-001...
  • Page 27 T-350 -59 Schematic T-350 Express: Vended 230/50/1 Voltage Schematic Part # 8533-115-001 3/22...
  • Page 28 T-450 Express: Vended 230/50/1 Voltage Schematic T-350 Express: Vended 230/50/1 Voltage Diagram...
  • Page 29 T-450 Express: Vended 230/50/1 Voltage Diagram...
