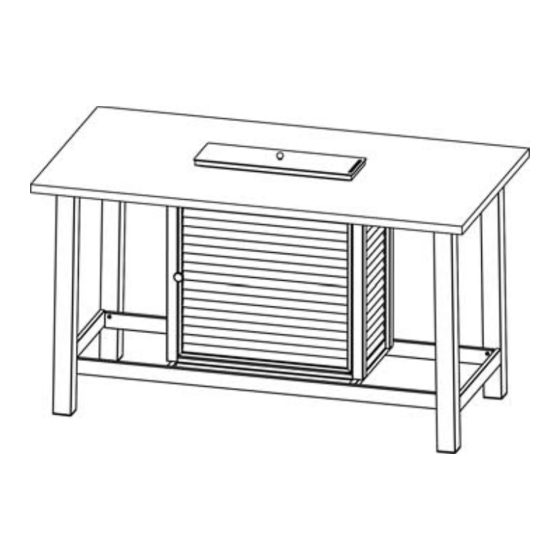

Galloway bar top & base

Advertisement

GALLOWAY BAR TOP & BASE
ASSEMBLY INSTRUCTIONS
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference
DANGER

If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
Questions, Problems, Missing Parts? Before returning to
your retailer, call our customer service department in the
US and Canada at 1-800-416-3511, Monday-Friday, 9 a.m.–
5 p.m. Eastern Time.
Jul-01-2018
CARBON MONOXIDE HAZARD
CSA Model WT17IL
SKU: 272-4292\4293
Factory Model: ARV04700K02/K04
WARNING: It is UNSAFE to use this
product for cooking!
.
WARNING:
Improper installation, adjustment alteration,
service, or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING: For Outdoor Use Only
FOR
USE
WITH
CYLINDER WITH TYPE 1 CONNECTION OR FOR
USE WITH NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE PROFESSIONALLY
INSTALLED).
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE
OF UNAPPROVED PART OR
ACCESSORIES CAN VOID
THE WARRANTY ON THIS
PRODUCT AND RESULT IN A
HAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES,
ELECTRODES, IGNITION
MODULES, LAVAROCKS,
LOGS, FIRE ICE, ETC.
1
20LB
(9KG)
PROPANE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 272-4292 and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Creations 272-4292

  • Page 1 GALLOWAY BAR TOP & BASE ASSEMBLY INSTRUCTIONS CSA Model WT17IL SKU: 272-4292\4293 Factory Model: ARV04700K02/K04 WARNING: It is UNSAFE to use this Installer: Leave these instructions with consumer. product for cooking! Consumer: Keep these instructions for future reference DANGER  ...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information Important About Propane Specification Parts Identification List Installation Natural Gas Conversion Batteries Maintenance Lighting Instructions Troubleshooting Guide Warranty...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
  • Page 4: Important About Propane

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S.
  • Page 5: Parts Identification List

    PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP2329 GAS VALVE FP2330 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 LP REGULATOR HOSE FP1916 LP TANK RETAINING FP0585 KNOB ADJUSTABLE FOOT FC0754 CAPS PROPANE ORIFICE FP2122 NATURAL GAS ORIFICE FP2123 AIR SHUTTER FP1922...
  • Page 6 HEX BOLT DRIVER HW0006 CROSS POINT HW0900 SCREWDRIVER FIREPIT TABLETOP FP1692 BACK PANEL FP1693 SIDE PANEL-1 FP1694 SIDE PANEL-2 FP1695 DOOR PANEL FP1696 TOP SUPPORT FP1697 BASE FRAME FP1700 FIREPAN/BURNER FP2658 ASSEMBLY BURNER PAN FP2659 PROTECTIVE RING BURNER COVER FP1698...
  • Page 7: Installation

    INSTALLATION 1.Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2.Attach the back panel to the base frame by using two 1/4"x25 mm bolts and Ø6.5x1.0 mm washers as shown in Figure 2.Guide bolts through holes in back panel, into pre-drilled holes in the base frame.
  • Page 8 Figure 4a Figure 4b 5. With the help of another person, carefully place the table top onto the firepit base. After making any necessary adjustments to the alignment of the table top and the assembled base, use four 1/4"x40 mm bolts and Ø20xØ6.5x2.0 mm as shown in Figure 5. Hand tighten only. Figure 5 6.
  • Page 9 8. Pour ALL the provided media (fire ice or lava rock) into the burner pan. The burner MUST be completely covered to ensure the appliance functions properly and safely. Remove any lava rocks or fire ice on top of the ignition well. See Figure 7. Figure 7 9.
  • Page 10: Natural Gas Conversion

    NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. 1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE OR APPLICANCES 2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see step1).
  • Page 11: Batteries

    9. Restore your gas supply and check ALL of the connections for leaks using a solution of soapy water. If a leak is discovered and any bubbles are seen, close the main gas valve and re-tighten ALL the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS! Step5 10.
  • Page 12: Lighting Instructions

    BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one Alkaline AA size battery (1.5V). The negative (-) end goes in first. See Figure 12.Dispose of battery safely.
  • Page 13: Troubleshooting Guide

    2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button pushed in, push and turn the control knob to the “ON” position. The fire should light within a few seconds. Once the flame is lit, release the igniter button and continue to hold the control knob in for 10 to 15 seconds.
  • Page 14: Warranty

    ONE-YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in material and workmanship for the following parts from the date of purchase for the period of warranty as outlined below, but only when the unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: Limited 1 Year...
