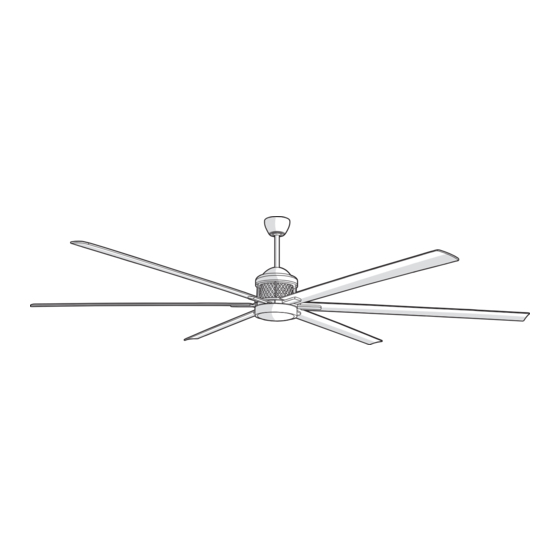

120 in. ceiling fan

Advertisement

Quick Links

USE AND CARE GUIDE
ROYALTY 120 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1003 236 493
#1003 236 492
Model #AM590-BN
#AM590-NI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROYALTY AM590-BN and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection ROYALTY AM590-BN

  • Page 1 USE AND CARE GUIDE ROYALTY 120 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to find...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Preparing the Transmitter ............Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Warm/Cool Weather Operating Instructions ......Pre-installation .............. Care and Cleaning ............Specifications ................Tools Required .................
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Description Quantity Plastic wire nut Canopy mounting screw (preassembled) Neck of the mounting bracket screw (preassembled) Stop valve screw (preassembled) Blade attachment screw and fiber washer Blade arm screw with lock washer (preassembled) Clevis pin (preassembled) Cotter pin (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Fan motor assembly Stop Valve (preassembled) Blade arm Neck of the mounting bracket (preassembled) Blade Canopy Light kit mounting plate Canopy bottom cover 18 watt LED Light kit Hanger ball/downrod assembly Light cover Coupling cover...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 8: Assembly

    Assembly Preparing the canopy Preparing the mounting bracket □ □ Unscrew the four neck of the mounting bracket Remove the canopy bottom cover (E) from the canopy screws (CC) on the mounting bracket (A) to apart the (D) by turning the canopy bottom cover (E) counter- mounting plate and neck of the mounting bracket clockwise.
  • Page 9 Assembly (continued) Preparing the motor Assembling the fan □ Remove the cotter pin (HH) and clevis pin (GG), and WARNING: Failure to properly install the cotter pin (HH) loosen the two collar setscrews (LL) from the motor could result in the fan loosening and possibly falling. collar.
  • Page 10: Hanging The Fan

    Assembly — Hanging the Fan Hanging the fan from the Attaching the mounting mounting bracket bracket to the ceiling WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (F).
  • Page 11 Assembly — Hanging the Fan (continued) Installing the safety cable and the stop valve □ Secure the safety cable (SS) to the building structure using a wood screw (not included). □ Secure the stop valve (B) onto mounting bracket (A) by tightening two stop valve screw (DD) to close up the opening of mounting bracket (A).
  • Page 12 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White WARNING: To avoid possible electrical shock, be sure conductor electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 13 Assembly — Hanging the Fan (continued) Attaching the canopy Installing the canopy bottom cover WARNING: Make sure the tab on the mounting bracket (A) NOTE: Adjust the canopy mounting screws (BB) as necessary properly sits in the groove in the hanger ball/downrod until the canopy (D) and canopy bottom cover (E) are snug.
  • Page 14: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Attaching the blades to the Fastening the blade blade arms assemblies to the motor □ Attach the blades (J) to the blade arms (I) using the WARNING: To reduce the risk of personal injury, do not three blade attachment screws and fiber washers (EE).
  • Page 15: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and light cover □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (MM) from the mounting ring (UU) and loosen power by turning off the circuit breaker or removing the fuse the other two screws.
  • Page 16: Operation

    Operation PREPARING THE TRANSMITTER Batteries will weaken with age and should be NOTE: replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □ Remove the battery cover by pressing firmly on the arrow and sliding the cover off.
  • Page 17: Operating Your Fan And Remote Control

    Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. button.
  • Page 18: Warm/Cool Weather Operating Instructions

    Operation (continued) Timer □ Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
  • Page 19: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 20 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
  • Page 21: Service Parts

    Service Parts Part Description Part Description Mounting bracket (preassembled) Plastic wire nut Stop Valve (preassembled) Canopy mounting screw (preassembled) Neck of the mounting bracket (preassembled) Neck of the mounting bracket screw (preassembled) Canopy Stop valve screw (preassembled) Canopy bottom cover Blade attachment screw and fiber washer Hanger ball/downrod assembly Blade arm screw with lock washer...
  • Page 22 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. AM590001-A...
