Item #699 804
Model #AM239-PN
USE AND CARE GUIDE

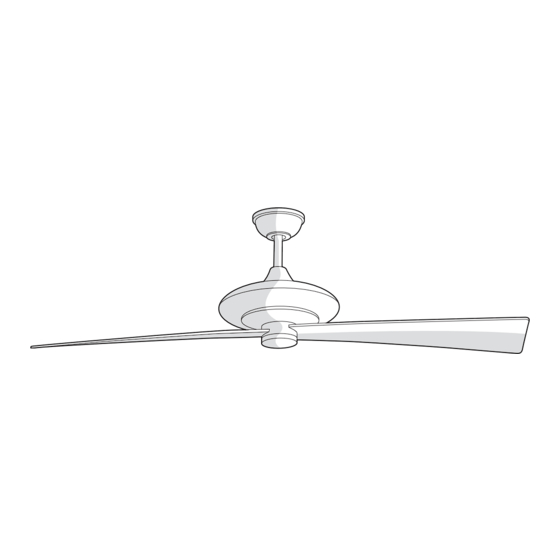

TETIA 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection TETIA
Summary of Contents for Home Decorators Collection TETIA
- Page 1 Item #699 804 Model #AM239-PN USE AND CARE GUIDE TETIA 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Operation ..............Table of Contents ............Remote Control Operating Instructions ........Safety Information ............Installing the Remote Control Holder ........Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-Installation .............. Troubleshooting ............Tools Required ................. Service Parts ............... -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting bracket screw with washer (preassembled) Blade attachment screw and fibber washer (not to scale) Remote control holder mounting screw (not to scale) Remote control holder plug (preassembled) Clevis pin (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Mounting plate Canopy Decor cover Canopy bottom cover (preassembled) Receiver Hanger ball/downrod assembly Remote control Coupling cover Remote control holder Fan motor assembly... -
Page 7: Dual Mounting Instructions
Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades. -
Page 8: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 9: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ Remove the cotter pin (GG) and clevis pin (FF), and □ Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (JJ) from the motor collar. -
Page 10: Close-To-Ceiling Mounting
Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the canopy ring (B) from the canopy (C). Remove three of the six collar mounting screws with lock washers (KK) (every other one) from the collar on □... -
Page 11: Hanging The Fan
Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box. - Page 12 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
- Page 13 Assembly — Hanging the Fan (continued) □ If your outlet box (NN) has a ground wire (green Making the electrical connections or bare copper) connect it to the fan ground wires; otherwise connect the hanger ball/downrod assembly (E) ground wire to the mounting bracket (A). WARNING: Check to see that all connections are tight, □...
- Page 14 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Locking slots of the canopy (C) are provided WARNING: Make sure the tab on the mounting bracket (A) only as an aid to mounting. Do not leave the fan assembly properly sits in the groove in the hanger ball (E) before unattended until all four canopy screws (BB) are engaged and attaching the canopy (C) to the mounting bracket (A) by...
-
Page 15: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not bend the blades (H) while installing, balancing the blades (H), or cleaning the fan. WARNING: Do not insert foreign objects between rotating fan blades (H). -
Page 16: Installing The Decor Cover
Assembly — Installing the Decor Cover Attaching the mounting plate and decor cover □ Remove one of the three mounting plate screws (LL) from the mounting ring (SS) and loosen the other two screws. (Do not remove.) □ Place the key holes in the mounting plate (I) over the two mounting plate screws (LL) previously loosened from the mounting ring (SS). -
Page 17: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS □ Install the 12V MN21/A23 battery (MM) (included) into the remote control (L). To prevent damage to the remote control (L), remove the battery if not used for long periods. □ Restore power to the ceiling fan and test for proper operation. HI, MED, LOW buttons: Sets the fan speed. -
Page 18: Reverse Switch Operating Instructions
Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. -
Page 19: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 13. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 20: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting bracket screw with lock washer Canopy (preassembled) Canopy bottom cover (preassembled) Blade attachment screw and fiber washer Hanger ball/downrod assembly Remote control holder mounting screw Coupling cover Remote control holder plug (preassembled) - Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. AM23900001-Y...
