USE AND CARE GUIDE

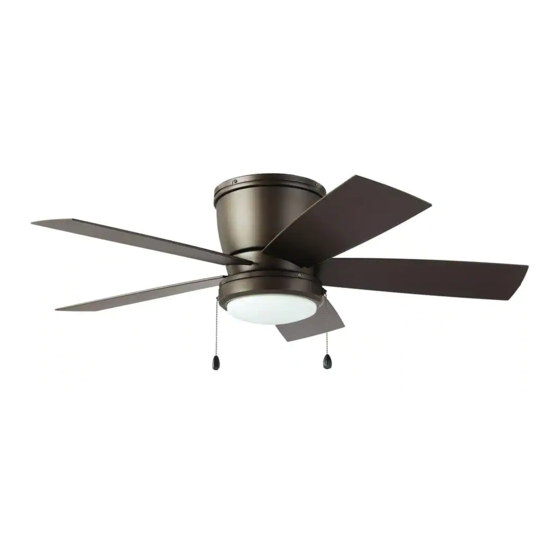

ARLEIGH LED 44 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1004 120 949
#1004 120 943
Model #AM589H-EB
#AM589H-WH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection ARLEIGH AM589H-EB
Summary of Contents for Home Decorators Collection ARLEIGH AM589H-EB
- Page 1 USE AND CARE GUIDE ARLEIGH LED 44 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Tools Required ................. Service Parts ..............Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Motor mounting screw with lock washer (preassembled) Blade attachment screw with lock washer Light kit mounting plate screw (preassembled) Light kit mounting screw (preassembled) Pull chain and fob HOMEDEPOT.COM/HOMEDECORATORS... -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket Light kit mounting plate Fan motor assembly Light kit assembly Blade Glass shade Blade support plate... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 8: Assembly
Assembly — Hanging the Fan Hanging the fan to the Installing the mounting bracket mounting bracket to the electrical box □ Remove two of the four motor mounting screws with WARNING: To reduce the risk of fire, electric shock or lock washers (BB) from the motor assembly (B) and other personal injury, mount the fan only to an outlet box or loosen the other two screws with lock washers (BB). - Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 10 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections □ On a single switch the fan and light can be turned on or On a dual switch the fan and light can be turned on or off off together.
- Page 11 Assembly — Hanging the Fan (continued) Attaching the fan motor assembly to the mounting bracket □ Remove the fan motor assembly (B) from the mounting bracket hook (II), and engage the key holes on the mounting bracket (A) with the two motor mounting bracket screws with lock washers (BB) previously loosened.
-
Page 12: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not insert foreign objects between rotating fan blades (C). □ The fan motor assembly (B) is shipped with rubber packing mounts (JJ) to prevent movement during transportation. -
Page 13: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the light kit to plate to the mounting ring the light kit mounting plate □ Remove the four light kit mounting screws (EE) from CAUTION: Before starting installation, disconnect the the light kit assembly (F). - Page 14 Assembly — Installing the Light Kit (continued) Installing the glass shade CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
-
Page 15: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (FF) onto the pull chains located on the light kit assembly (F). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 16: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time. - Page 17 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
-
Page 18: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket Plastic wire nut Fan motor assembly Motor mounting screw with lock washer (preassembled) Blade Blade attachment screw with lock washer Blade support plate Light kit mounting plate screw (preassembled) Light kit mounting plate Light kit mounting screw (preassembled) Light kit assembly... - Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
