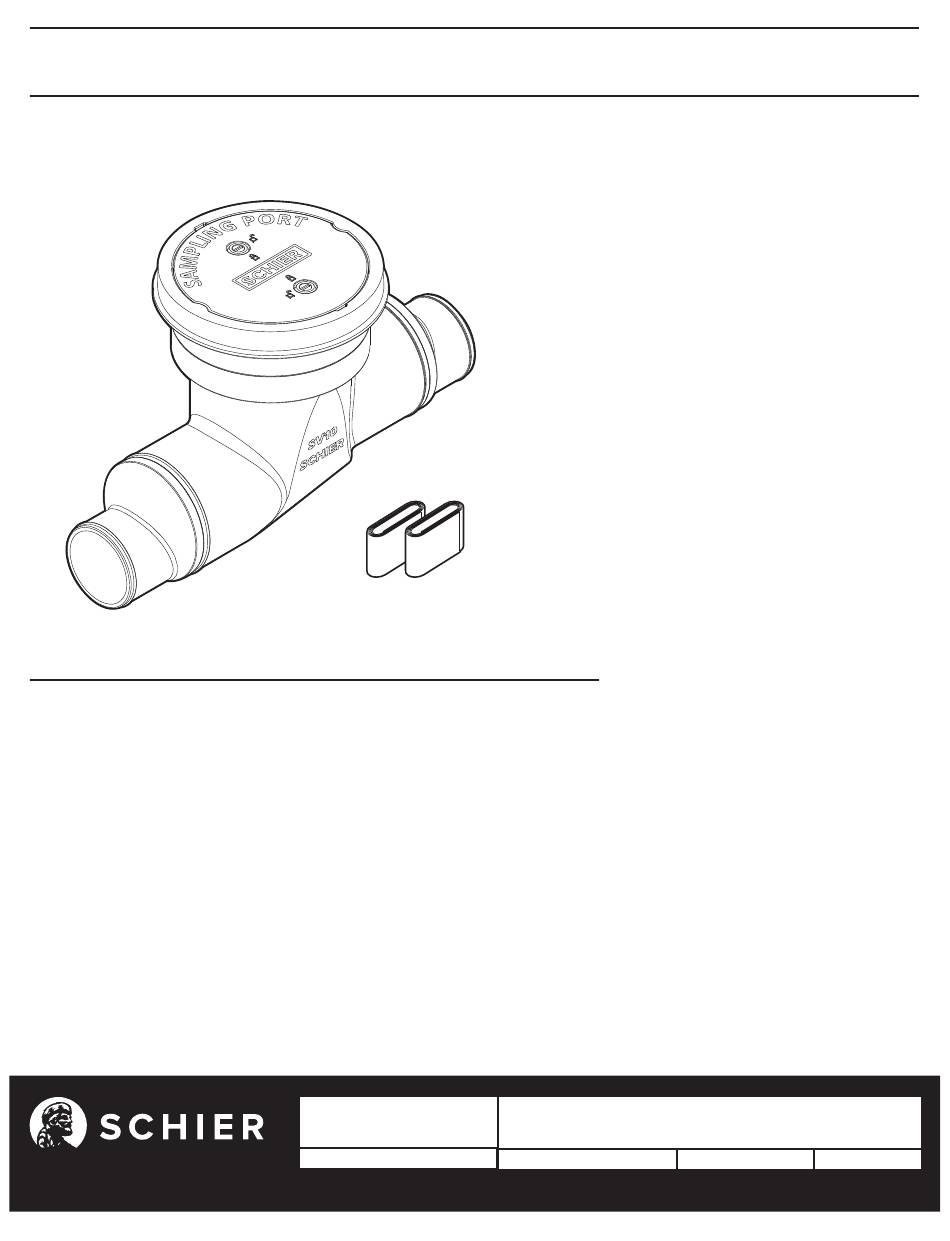

INSTALLATION GUIDE
SV10
Wastewater Sampling Port
Contents
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Getting to Know the SV 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Buried Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
On the Floor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
6455 Woodland Dr. | Shawnee, KS 66218 | 913-951-3300 | schierproducts.com
MODEL NUMBER:
SV10
PART #: 8065-001-01
DESCRIPTION: Wastewater Sampling Port
DATE: 01/01/2023
REV:
ECO:
© Copyright 2023 Schier, All Rights Reserved
page 1 of 10
Advertisement
Table of Contents
Related Manuals for Schier SV10
Summary of Contents for Schier SV10
- Page 1 On the Floor Installation ........9-10 MODEL NUMBER: DESCRIPTION: Wastewater Sampling Port SV10 PART #: 8065-001-01 DATE: 01/01/2023 REV: ECO: 6455 Woodland Dr. | Shawnee, KS 66218 | 913-951-3300 | schierproducts.com © Copyright 2023 Schier, All Rights Reserved page 1 of 10...
-
Page 2: Special Precautions
SPECIAL PRECAUTIONS For Schier Grease Interceptor Installations - Failure to follow this guidance voids your warranty DO NOT AIR TEST UNIT OR RISER SYSTEM! Do not install this unit in any manner Doing so may result in property damage, personal injury or death. - Page 3 SPECIAL PRECAUTIONS For Schier Grease Interceptor Installations - Failure to follow this guidance voids your warranty High Water Table Installations Fully Support Base of Unit Install unit on solid, level surface in concrete floor contact with the entire footprint of unit max water table height for base;...
-
Page 4: Getting To Know The Sv10
GETTING TO KNOW THE SV10 Polyethylene Cover with Gasket 6. Sampling Port Body 9. 4" Plain End Inlet Connection (standard) 2. Quarter-Turn Camlock 6" Plain End Outlet Connection Cover Bolts (x2) (achieved by cutting off the 4" 10. 6" Plain End Inlet Connection connection at the trim line) (achieved by cutting off the 4"... -
Page 5: Buried Installation
flexible PVC caps. Remove cover and fill with water to just above the highest connection. Call customer care at 913-951-3300 Inspect unit and connections for leaks. Check water level at Hours 8am-5pm CST, M-F specific time intervals per local code. SV10 Installation Guide page 5 of 10... - Page 6 IMPORTANT! Make sure the sampling port is correctly aligned. The SV10 outlet is 2" lower than the inlet to facilitate sample retrieval and comply with local codes. DO NOT install backwards as doing so will result in improper drainage slope.
- Page 7 BURIED INSTALLATION Bring Cover Flush-to-Grade The SV10 is ready for burial depth of 14-1/2" from finished grade to bottom of unit (or 10-1/4" to centerline of inlet, 12-1/4" to centerline of outlet). Deeper burials will require adding a risers. Measure dimension X to determine riser height needed.
- Page 8 1/2") grade 60 steel per ASTM A615: connected with tie wire. Rebar to be 2-1/2" from edge of concrete and spaced in a 12" grid with 4" spacing around access openings. 45º 18" Pedestrian Traffic or Greenspace Areas: Minimum 4" thick concrete slab with rebar required. SV10 Installation Guide page 8 of 10...
-
Page 9: On The Floor Installation
flexible PVC caps. Remove cover and fill with water to just above the highest connection. Call customer care at 913-951-3300 Inspect unit and connections for leaks. Check water level at Hours 8am-5pm CST, M-F specific time intervals per local code. SV10 Installation Guide page 9 of 10... - Page 10 FLOOR BELOW INSTALLATION DETAIL Connect Piping vent per local code 4" Plain End INLET The SV10 sampling port comes from the factory ready to connect to 4" drain lines. OUTLET 6" Connections Only Cut off the 4" connections at the premarked cut Mechanically couple inlet and lines.
