SPECIFICATION AND INSTALLATION GUIDE
FCR10
For Use with Sampling Port Model SV10
Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting to Know the FCR10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
9500 Woodend Road | Edwardsville, KS 66111 | 913-951-3300 | schierproducts.com

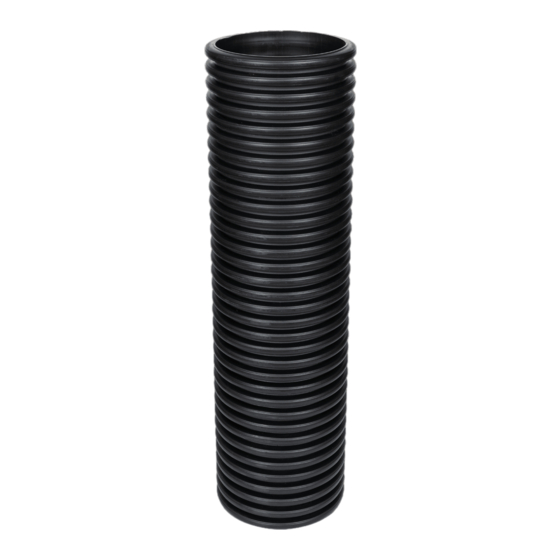

Field Cut Riser System
MODEL NUMBER:
FCR10
PART #: 8010-020-01

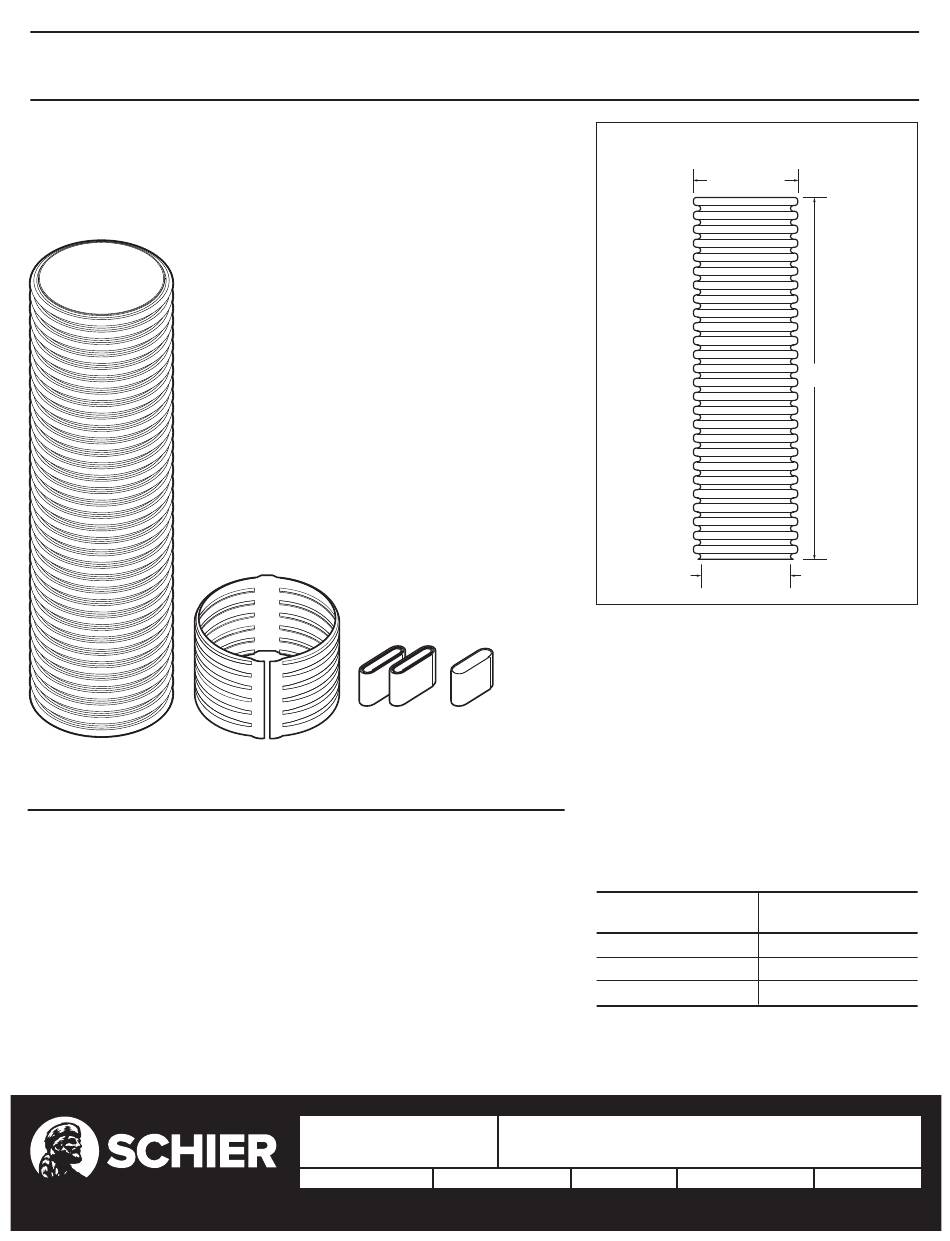

RISER SIDE VIEW
Notes
1.
Unit weight: 6 lbs.
2. Riser not designed to hold water
Engineer Specification Guide:
Field-cut adjustable riser system to consist of 8"
nominal diameter polyethylene corrugated
drainage pipe and coupling, and butyl mastic
tape for riser joints. Riser shall allow field
adjustability of cover to grade.
Installation Note
Riser system may be stacked no more than three
units high to a maximum of 97" extension.
Riser Height Needed
0" - 31"
>31" - 64"
>64" - 97"
DESCRIPTION: SV10 Sampling Port Field Cut Riser System
DWG BY: B. Karrer
DATE: 3/1/2020
ø 9-1/8" OD
33"
ø 7-7/8" ID
Risers Required
FCR10
FCR10 (x2)
FCR10 (x3)
REV:
ECO:
© Copyright 2020 Schier, All Rights Reserved
Advertisement
Related Manuals for Schier FCR10
Summary of Contents for Schier FCR10
- Page 1 Special Precautions ........2 Getting to Know the FCR10 ......2 Installation .
- Page 2 SPECIAL PRECAUTIONS For Schier Grease Interceptor Installations - Failure to follow this guidance voids your warranty DO NOT AIR TEST UNIT OR RISER SYSTEM! Do not install this unit in any manner Doing so may result in property damage, personal injury or death.
- Page 3 >0 - 31" Go to Step 3 - Cut and Install Riser >31 - 64" Follow Steps 2a -2c to join two FCR10 risers >64 - 97" Follow Steps 2a -2c to join three FCR10 risers Spread open the corrugated pipe Use the 6"...
- Page 4 33" length of butyl tape check to see if flush with grade. (provided with SV10). Make sure joint If too high, remove cover and is completely sealed and cover is trim riser as needed. level and flush-to-grade. FCR10 Installation Guide page 3 of 4...
