SPECIFICATION AND INSTALLATION GUIDE
PP3
Pumpout Port Kit for use with Grease Interceptors
Models GB-50, GB-75, GB-250 and GB-500
Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting to Know the PP3 . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
9500 Woodend Road | Edwardsville, KS 66111 | Tel: 913-951-3300 | www.schierproducts.com

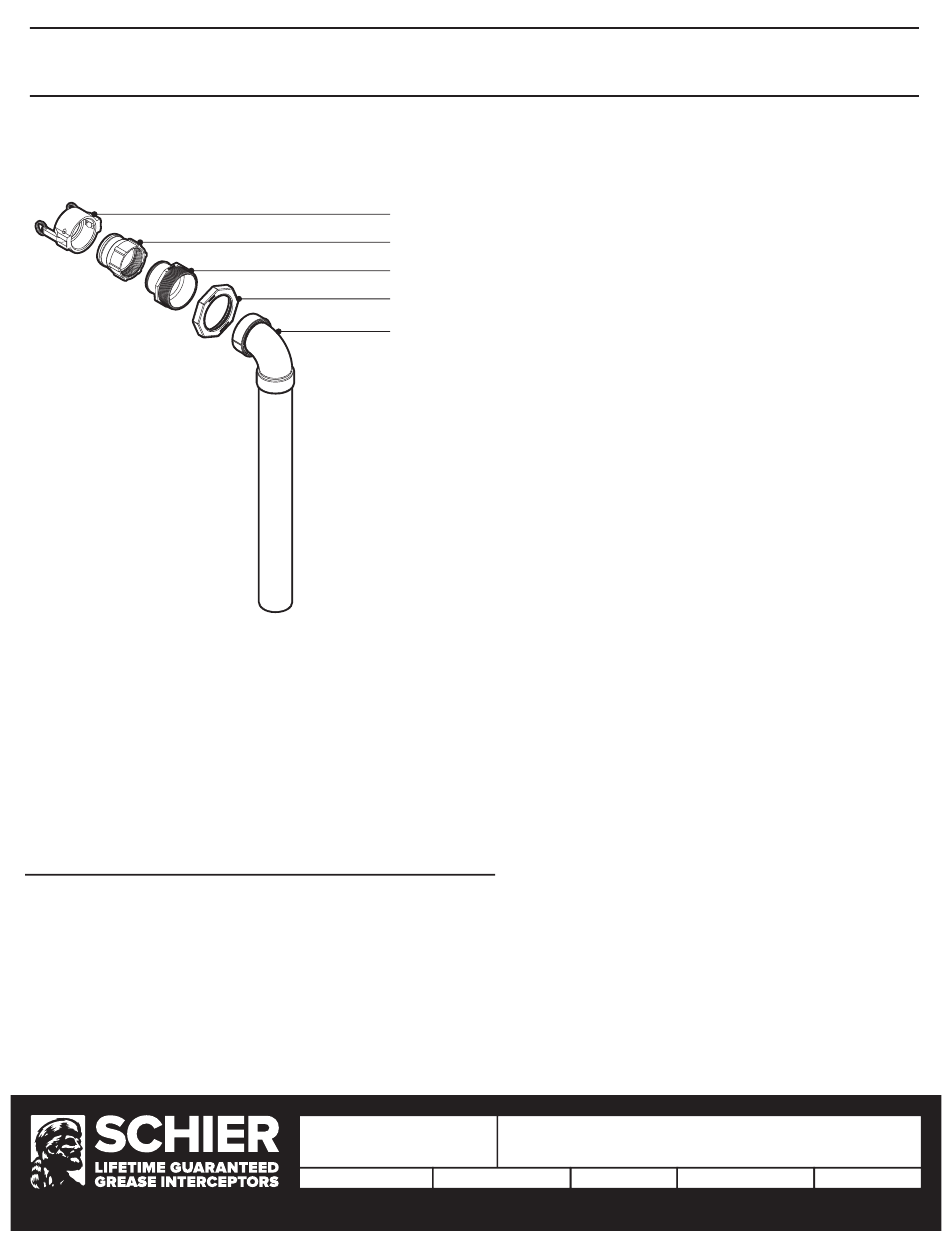

3" Cam and Groove Cap
3" Cam and Groove Fitting
4" MPT x 3" Plain End Fitting
Retaining Nut
Pumpout Adapter and Internal Pipe Assembly
Notes
1. Additional plumbing fitting(s) required to complete kit installation.
Fitting(s) determined by unit outlet configuration.
2. Unit weight: 8 lbs.
Engineer Specification Guide:
Pumpout port kit to consist of internal PVC 3" piping, injection molded PVC
internal fitting adapter, injection molded polypropylene retaining nut,
injection molded polypropylene 4" MPT x 3" plain end fitting and standard 3"
cam and groove fitting (for pumper hook-up).
Installation Notes
1. Maximum vertical distance from static water line of
grease interceptor to pumpout port hook-up shall
not exceed 21 feet.
2. Maximum horizontal distance from grease
interceptor to pumpout truck (including pumper
hose) shall not exceed 100 feet.
3. Plumbing from interceptor to hook-up to have a
maximum quantity of 6 elbow fittings.
MODEL NUMBER:
PP3
PART #: 8400-014-01
DWG BY: B. Karrer
DESCRIPTION: Pumpout Port Kit
DATE: 8/5/2019
REV:
ECO:
© Copyright 2019 Schier, All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Schier PP3
Summary of Contents for Schier PP3
- Page 1 Special Precautions ......2 Getting to Know the PP3 ......3 Installation Ideas .
- Page 2 SPECIAL PRECAUTIONS For Schier Grease Interceptor Installations - Failure to follow this guidance voids your warranty DO NOT AIR TEST UNIT OR RISER SYSTEM! Do not install this unit in any manner Doing so may result in property damage, personal injury or death.

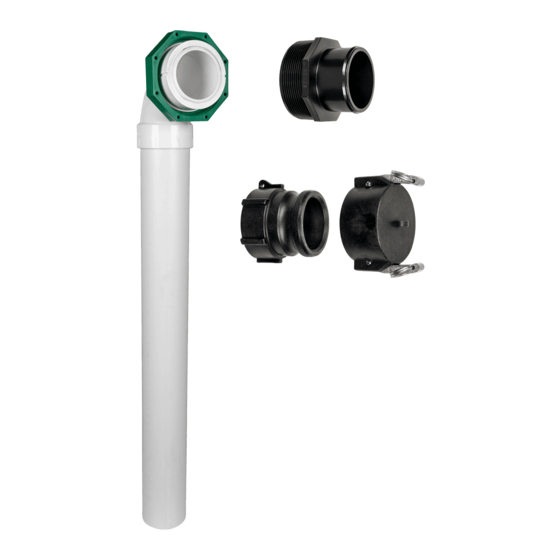

- Page 3 GETTING TO KNOW THE PP3 3" Cam and Groove Cap 4. 4" x 3" PVC Pumpout Adapter 6. 3" PVC Elbow Fitting 2. 3" Cam and Groove Fitting 5. Bulkhead Connection Retaining Nut 7. Internal 2" PVC Pipe 3. 4" MPT x 3" Plain End Fitting...
- Page 4 At Grade Basement Installation with Below Grade Installation with Outdoor Remote Pumpout Hook-up Indoor Remote Pumpout Hook-up At Grade Floor Below Installation with Recessed and Suspended Installation with Indoor Remote Pumpout Hook-up Outdoor Remote Pumpout Hook-up PP3 Installation Guide Page 4 of 7...
- Page 5 Prepare interceptor for pumpout port installation Remove cover bolts, Remove preinstalled cleanout plug then remove cover. from outlet chosen to become a pumpout port. PP3 Installation Guide Page 5 of 7...
- Page 6 (Not included with this kit). Maximum quantity of 6 elbow fittings. Max. height from static water line of interceptor to hook-up is 21 feet. Max horizontal distance from interceptor to pumper truck (including hose) is 100 feet. PP3 Installation Guide Page 6 of 7...
- Page 7 Cap off hookup and re-assemble interceptor Install Cam and Groove Cap at hookup Replace cover and cover bolts, tightening securely. PP3 Installation Guide Page 7 of 7...
