SPECIFICATION AND INSTALLATION GUIDE
PP3
Pumpout Port Kit for use with Grease Interceptors Models GB-50, GB-75,
GB-250 and GB-500 and Legacy Models GB-50, GB-75 and GB-250
Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting to Know the PP3 . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
9500 Woodend Road | Edwardsville, KS 66111 | 913-951-3300 | schierproducts.com

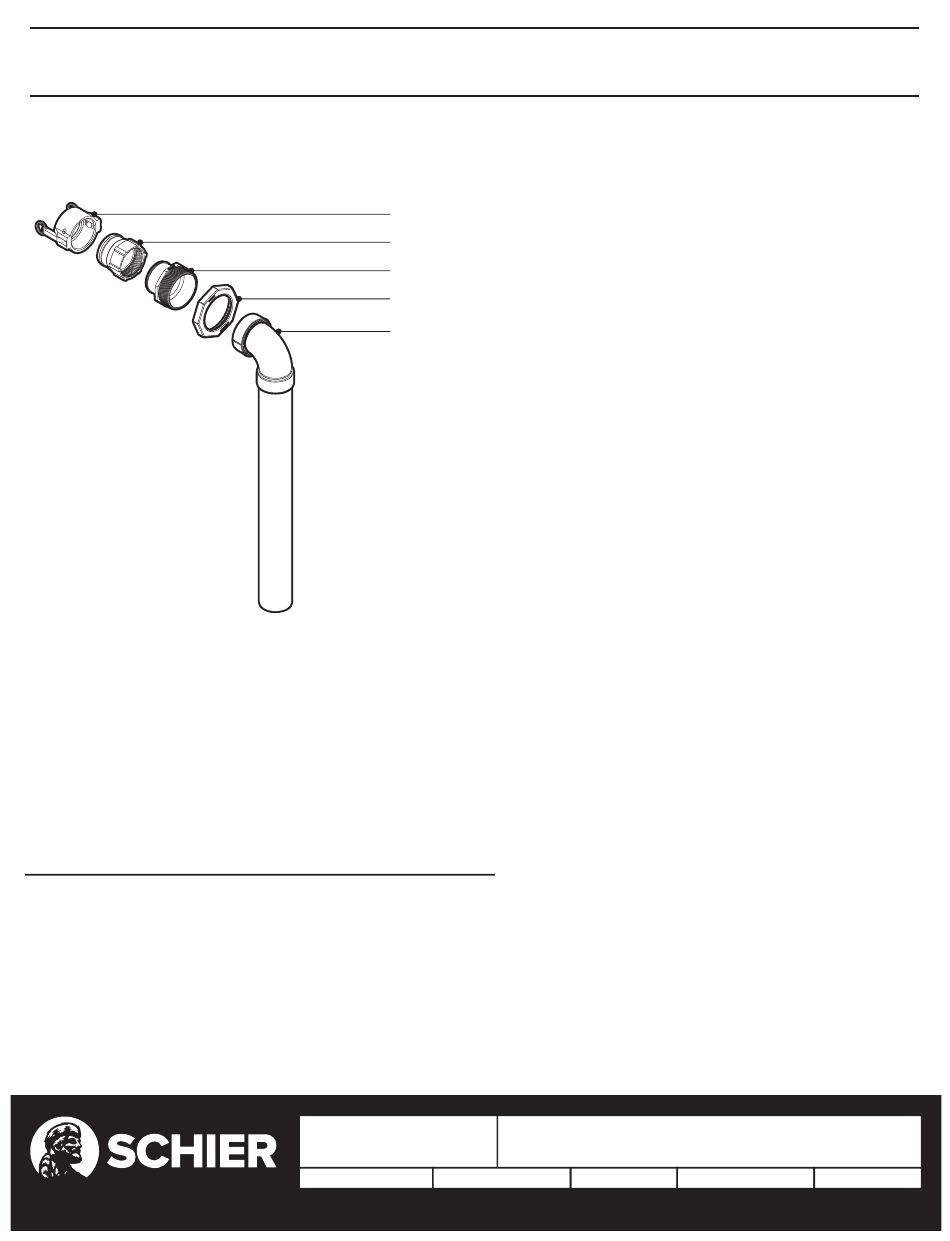

3" Cam and Groove Cap
3" Cam and Groove Fitting
4" MPT x 3" Plain End Fitting
Retaining Nut
Pumpout Adapter and Internal Pipe Assembly
Notes
1. Additional plumbing fitting(s) required to complete kit installation.
Fitting(s) determined by unit outlet configuration.
2. Unit weight: 8 lbs.
Engineer Specification Guide:
Pumpout port kit to consist of internal PVC 3" piping, injection molded PVC
internal fitting adapter, injection molded polypropylene retaining nut,
injection molded polypropylene 4" MPT x 3" plain end fitting and standard 3"
cam and groove fitting (for pumper hook-up).
Installation Notes
1. Maximum vertical distance from static water line of
grease interceptor to pumpout port hook-up shall
not exceed 21 feet.
2. Maximum horizontal distance from grease
interceptor to pumpout truck (including pumper
hose) shall not exceed 100 feet.
3. Plumbing from interceptor to hook-up to have a
maximum quantity of 6 elbow fittings.
MODEL NUMBER:
PP3
PART #: 8400-014-01
DWG BY: B. Karrer
DESCRIPTION: Pumpout Port Kit
DATE: 6/25/2020
REV:
ECO:
© Copyright 2020 Schier, All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the PP3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schier PP3

  • Page 1 Special Precautions ......2 Getting to Know the PP3 ......3 Installation Ideas .
  • Page 2 SPECIAL PRECAUTIONS For Schier Pumpout Port Installations - Failure to follow this guidance voids your warranty DO NOT AIR TEST UNIT OR RISER SYSTEM! Do not install this unit in any manner Doing so may result in property damage, personal injury or death.
  • Page 3 SPECIAL PRECAUTIONS For Schier Pumpout Port Installations - Failure to follow this guidance voids your warranty Below Grade Installation Slab Requirements DO NOT USE CAST IRON A concrete slab to finished grade with rebar is required when installing COVERS IN ABOVE GRADE OR interceptor below grade.

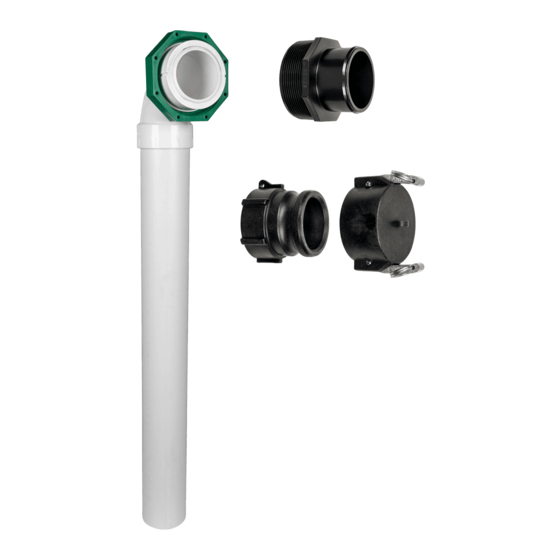

  • Page 4 GETTING TO KNOW THE PP3 3" cam and groove cap 4. 4" x 3" PVC pumpout adapter 6. 3" PVC elbow fitting 2. 3" cam and groove fitting 5. Bulkhead connection retaining nut 7. Internal 3" PVC pipe 3. 4" MPT x 3" plain end fitting...
  • Page 5 Below Grade Installation with Outdoor Remote Pumpout Hook-up Indoor Remote Pumpout Hook-up At Grade Floor Below Installation with Recessed and Suspended Installation with Indoor Remote Pumpout Hook-up Outdoor Remote Pumpout Hook-up Schier | PP3 Installation Guide page 5 of 9...
  • Page 6 Prepare interceptor for pumpout port installation Remove cover bolts (if applicable), then remove cover. Remove safety star insert, leave tethered to unit. Remove preinstalled cleanout plug from outlet chosen to become a pumpout port. page 6 of 9 Schier | PP3 Installation Guide...
  • Page 7 For new or legacy GB-50, GB-75 or GB-250, cut internal pipe at pre-labeled location and keep the top section. unit. Securely tighten hand tighten retaining nut. For GB-500 use entire length of supplied pipe. Schier | PP3 Installation Guide page 7 of 9...
  • Page 8 Groove Fitting to pipe nipple using pipe thread sealant or tape. At the end of the pumpout plumbing line, install a 3" MPT pipe nipple (Not included with this kit) using a coupling of your choice. page 8 of 9 Schier | PP3 Installation Guide...
  • Page 9 Cap off hookup and re-assemble interceptor Install cam and groove cap at hookup Replace safety star insert and cover, tightening cover bolts securely (if applicable). Schier | PP3 Installation Guide page 9 of 9...
