MULTISPAN MPD-192 Manual page 6

Motor protection device

Advertisement

If Reset
Mode
is Manual
Reset Mode:
1) If Reset Mode Selected is Manual, then the Fault
will Reset Manually by pressing the Reset key on
the instrument.
2) If Reset Mode Selected is Auto, then the Relay will
be reset after Selected Reset time once the healthy
condition achieved.
3) If Reset Mode Selected As ZVR (Zero Value Reset),then
the Relay will be reset after Selected Reset time once
the healthy condition achieved OR Zero Value reached.
Relay Fault:
1) If Relay fault selected is "off" than Relay will turn
"off" when fault is achieved, otherwise Relay will
remain turn "on".
2) If Relay fault selected is "on" then Relay will turn
"on" when fault is achieved, otherwise Relay will
remain turn "off".

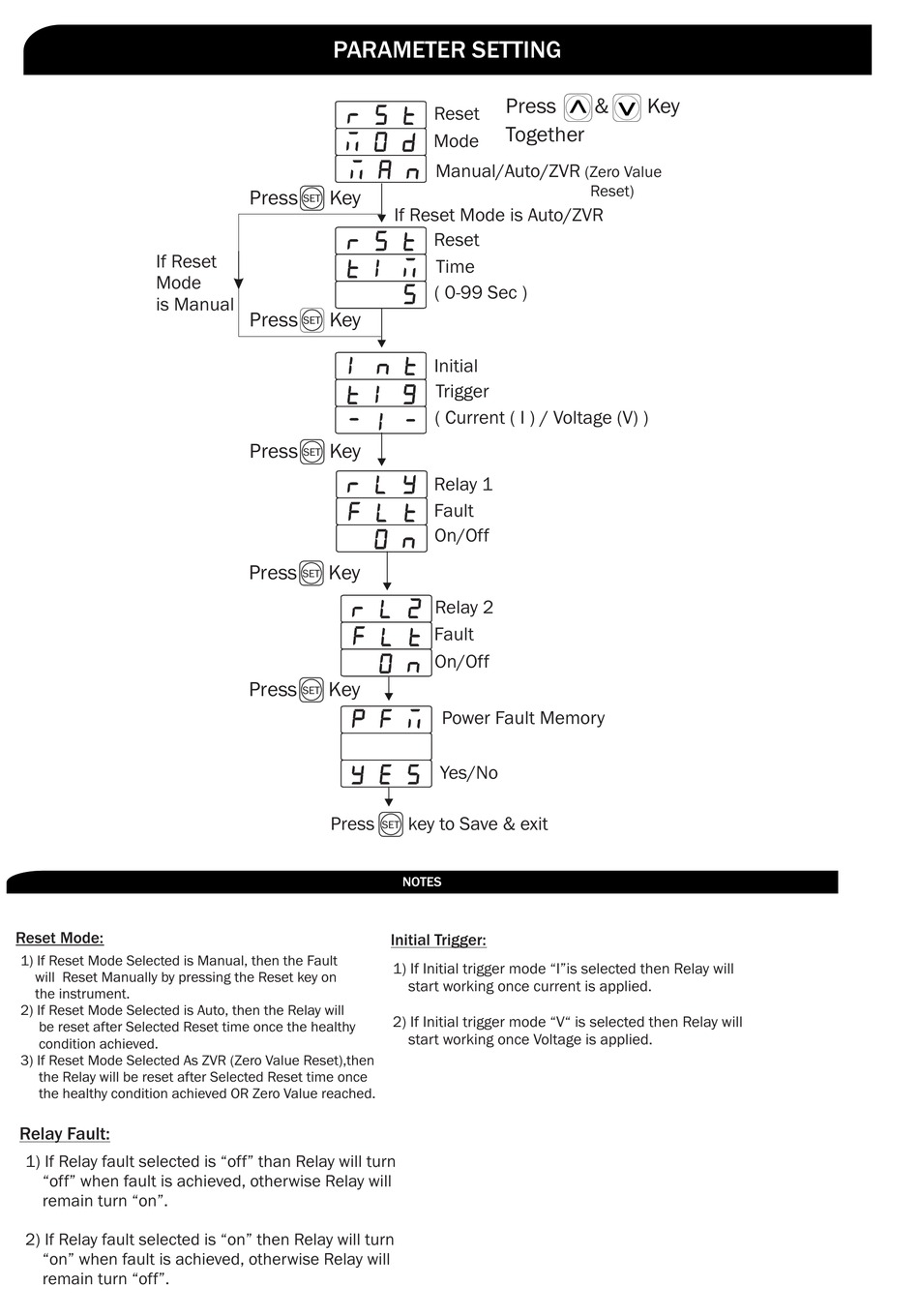

PARAMETER SETTING
P A S
R S T
m O D
M A N
2 9
Press
Key
SET
If Reset Mode is Auto/ZVR
P A S
r s t
T I M
5
2 9
Press
Key
SET
I N T
P A S
t I g
2 9
I
Press
Key
SET
R L Y
P A S
F L T
O N
2 9
Press
Key
SET
R L 2
P A S
F L T
O N
2 9
Press
Key
SET
p f m
P A S
y e s
2 9
Press
key to Save & exit
SET
NOTES
Initial Trigger:
1) If Initial trigger mode "I"is selected then Relay will
start working once current is applied.
2) If Initial trigger mode "V" is selected then Relay will
start working once Voltage is applied.
Press
&
Reset
Together
Mode
Manual/Auto/ZVR
(Zero Value
Reset)
Reset
Time
( 0-99 Sec )
Initial
Trigger
( Current ( I ) / Voltage (V) )
Relay 1
Fault
On/Off
Relay 2
Fault
On/Off
Power Fault Memory
Yes/No
Key
