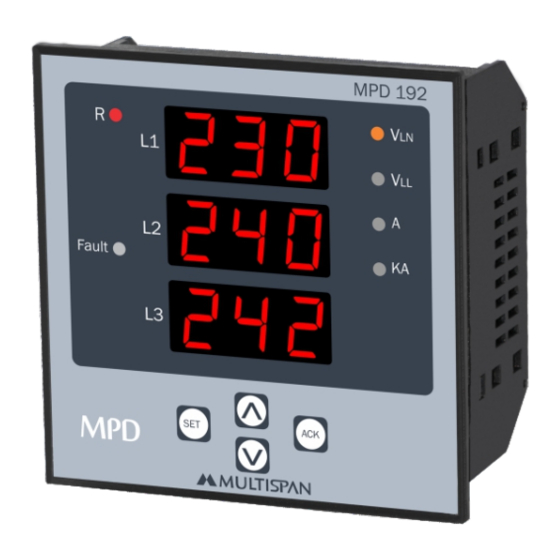

Motor protection device

Advertisement

Quick Links

FEATURES

User Selectable Trip Time
Auto/Manual Reset Function
True RMS Measurement

Protection Available

Over/Under Voltage
Over/Under Current
Over/Under Frequency
Single Phase Prevention
Short Circuit

TECHNICAL SPECIFICATION

INPUT:
Direct Voltage AC
Burden
Current AC
Primary CT Ratio
Secondary Current AC
Burden
Overload
Frequency

DISPLAY AND KEYS:

Display
Keys

DIMENSION:

Size (mm)
Panel Cutout (mm)

NETWORK SELECTION:

3 Phase - 4 Wire,3 Phase - 3 Wire
Motor Protection Device
MPD-192
Unbalance
Phase Loss
Lock Rotor Point
Phase Sequence
Neutral Loss
Voltage AC
Voltage AC
30 to 300V(L - N)
50 to 500V(L - L)
< 0.2VA
5 to 6000 Amp selectable
60mA to 5 Amp
< 0.2VA
Up to 6A continuous
45.0 to 65.0 Hz
3 Digit, 3 Line 7 Seg 0.56",
RED LED
SET, INC, DEC, ACK
96 (H) X 96 (W) X 52 (D) mm
92 (H) X 92 (W) mm

ACCURACY

Class 1.0 (Standard)
TRIP SETTING:
Under Current
Over Current
Under Voltage
Over Voltage
Over / Under Frequency
Short Circut
Lock Rotor Point
Unbalance
TIME PARAMETER:
Power On Delay
Initial Time Delay
Trip Delay Time
(Voltage, Current, Frequency,
SSP, Unbalance)
Scrolling Time
Reset Time

OUTPUT SPECIFICATION:

Relay
Relay Type
Rating

AUXILIARY SUPPLY:

Supply Voltage
Power Consuption

ENVIRONMENTAL CONDITION:

Working Temperature
Storage Temperature
Relative Humidity
Protection Level
(As Per request)

TERMINAL CONNECTION

20
19
18
17
R
Y
S1
S2
S1
S2
Range:
Current:
CAT III
60mA To 5.00A AC
CT Primary: 5A to 6000A
Voltage
Made in India
(P-P) : 50-520V AC
100
~
(P-N) : 30-300V AC
!
270V AC
50Hz,4VA
Relay-1
C
NO
L
N
1
2
3
4
0.00 to CTR
0.00 to CTR
50 to 520V For 3Ø - 3W
30 to 300V For 3Ø - 4W
50 to 550V For 3Ø - 3W
30 to 330V For 3Ø - 4W
45.0 to 65.0 Hz
1 - 9 Scale
0.5 to 9.0 Scale
5 - 60%
0 to 99 Sec
0 to 99 Sec
0 to 999 Sec
1 to 99 Sec
0 to 99 Sec
2 Nos
st
1 Relay ( NO - C - NC )
nd
2 Relay ( NO - C )
st
1 Relay 10Amp, 250V AC
nd
2 Relay 5 Amp, 250V AC
100 to 270V AC, 50Hz
4VA @ 230 AC MAX
0 to 55°C
0 to 55°C
95 % RH Non-Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
16
15
14
13
12
B
S1
S2
C
NO
Relay-2
System:
3Ph-4W/3Ph-3W
Accuracy Class: 1.0
www.multispanindia.com
NC
V
V
V
Y
B
R
5
6
7
8
9
11
N
10
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPD-192 and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN MPD-192

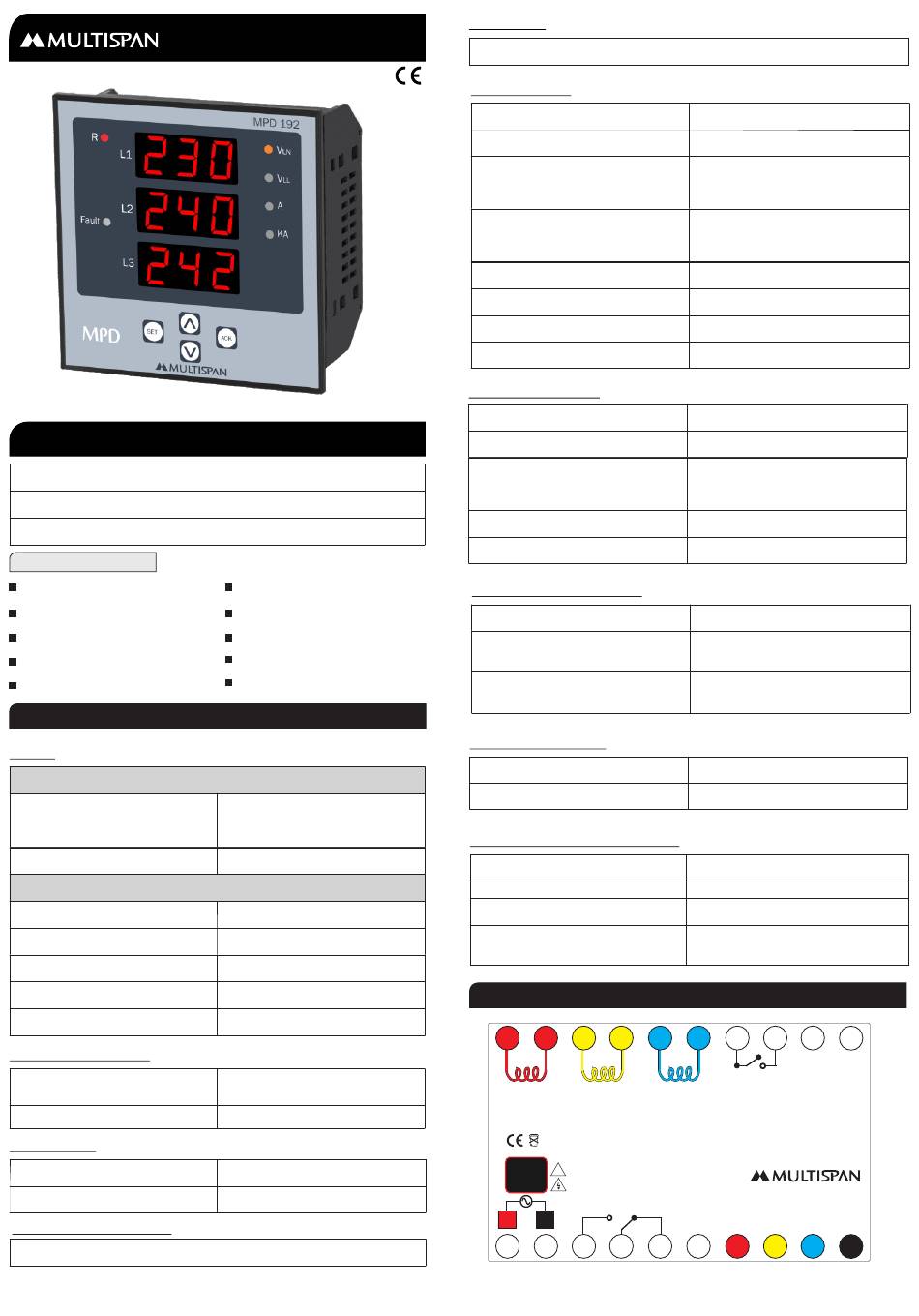

  • Page 1 ACCURACY Motor Protection Device MPD-192 Class 1.0 (Standard) TRIP SETTING: Under Current 0.00 to CTR Over Current 0.00 to CTR 50 to 520V For 3Ø - 3W Under Voltage 30 to 300V For 3Ø - 4W 50 to 550V For 3Ø - 3W Over Voltage 30 to 330V For 3Ø...
  • Page 2 Key Operation INSTALLATION GUIDELINES Operator Mode 1. This equipment, being built-in-type, normally becomes a part of main control panel and in such case the terminals To View Individual Parameters Value do not remain accessible to the end user after installation and internal wiring.
  • Page 3 FAULT MASSAGE Under Current fault Message Phase Loss Message 1) Unc in R Phase 1) R Phase loss Fault in R phase U N C Under Current P H A Phase 2 8 7 R phase Current Value L O S Loss 2) Unc in Y Phase 3) Unc in B Phase...
  • Page 4 DISPLAY PAGES ø ø ø - 4W NETWORK CONNECTION - 3W / 3 - 4W NETWORK CONNECTION - 3 W NETWORK CONNECTION 1) V Page 1) V Page 1) Fault Massage 2 4 0 4 2 0 2 4 0 U N C 4 2 0 Fault...
  • Page 5 Password = 19 » Power On Time & ITD Time Selection Password = 39 » Network Selection & CT Ratio Selection » Under Current, Over Current, Under Voltage, Over Voltage, Password = 59 » Display Mode Selection (Hold / Scroll) Under Frequency, Over Frequency »...
  • Page 6 PARAMETER SETTING P A S Enter Password = 39 P A S P A S Enter Password = 29 Enter Password = 29 Press Press C T R C.T. Ratio S P P Single Phase Prevention ( 5-6000A ) E N B (Enable / Disable) Press Press...
  • Page 7 PARAMETER SETTING CONTROL FUNCTION Press & Key Together Single Phase Prevention (SPP) (For Voltage) SPP Time:- 5 Sec Power On:- 5 Sec Reset Time:- 5 Sec Initial Time Delay:- 5 Sec P A S R S T Reset Reset Fault:- OFF SPP:- Enable m O D Fault Reset mode:- Auto...
  • Page 8 CONTROL FUNCTION Lock Rotor Point Lock Rotor Point:- 2.0 Power On:- 5 Sec Unbalance Intial Time Delay:- 5 Sec Over Current Value:- 2.0A Lock Rotor Point:- Enable Relay Fault:- OFF Over Current:- Disable Unbalance Percentage:- 50% Power On:- 5 Sec Reset Mode:- Auto Initial Time Delay:- 5 Sec Unbalance Time:- 5 Sec...
