MULTISPAN MPD-152 Manual

FEATURES
User Selectable Trip Time
Auto/Manual/ZVR Reset Function
True RMS Measurement
Protection Available
Over/Under Voltage
Over/Under Current
Over/Under Frequency
Single Phase Prevention
Short Circuit
TECNICAL SPECIFICATION
INPUT :
Voltage AC
Direct Voltage AC
Burden
Current AC
Primary CT Ratio
Secondary Current AC
Burden
Overload
Frequency
DISPLAY AND KEYS :
Display
Keys
DIMENSION :
Size (mm)
NETWORK SELECTION :
3 Phase - 4 Wire,
3 Phase - 3 Wire,
ACCURACY
Class 1.0 (Standard)

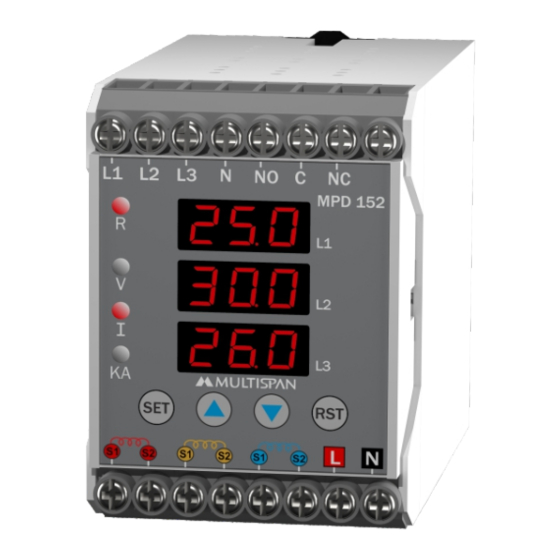

Motor Protection Device
MPD-152
Unbalance
Phase Loss
Lock Rotor Point
Phase Sequence
Neutral Loss
Voltage AC
30 to 300V(L - N)
50 to 520V(L - L)
< 0.2VA
5 to 6000 Amp selectable
0.5 to 5 Amp
< 0.2VA
Up to 6A continuous
45.0 to 65.0 Hz
3 Digit, 3 Line 7 Seg 0.28",
RED LED
SET, INC, DEC, RST
75(H)X 55(W)X110(D)
TRIP SETTING :
Under Current
Over Current
Under Voltage
Over Voltage
Over / Under Frequency
Short Circut
Lock Rotor Point
Unbalance
TIME PARAMETER :
Power On Delay
Initial Time Delay
Trip Delay Time
(Voltage, Current, Frequency,
SSP, Unbalance)
Scrolling Time
Reset Time
OUTPUT SPECIFICATION :
Relay
Relay Type
Rating
AUXILIARY SUPPLY :
Supply Voltage
Power Consuption
ENVIRONMENTAL CONDITION :
Working Temperature
Storage Temperature
Relative Humidity
TERMINAL CONNECTION
L1 L2 L3
R
V
KA
SET
S1 S1
S2
L1
L2
L3
N
0.00 to CTR
0.00 to CTR
50 to 520V For 3Ø - 3W
30 to 300V For 3Ø - 4W
50 to 550V For 3Ø - 3W
30 to 330V For 3Ø - 4W
45.0 to 65.0 Hz
1 - 9 Scale
0.5 to 9.0 Scale
5 - 60%
0 to 99 Sec
0 to 99 Sec
0 to 999 Sec
1 to 99 Sec
0 to 99 Sec
1 Nos
1 C/O (NO-C-NC)
10Amp, 250V AC
100 to 270V AC, 50Hz
3VA @ 230 AC MAX
0 to 55°C
0 to 55°C
95 % RH Non-Condensing
N NO C NC
MPD 152
L1
L2
L3
RST
N
L
S2 S1 S2
TO
LOAD
Page 1
