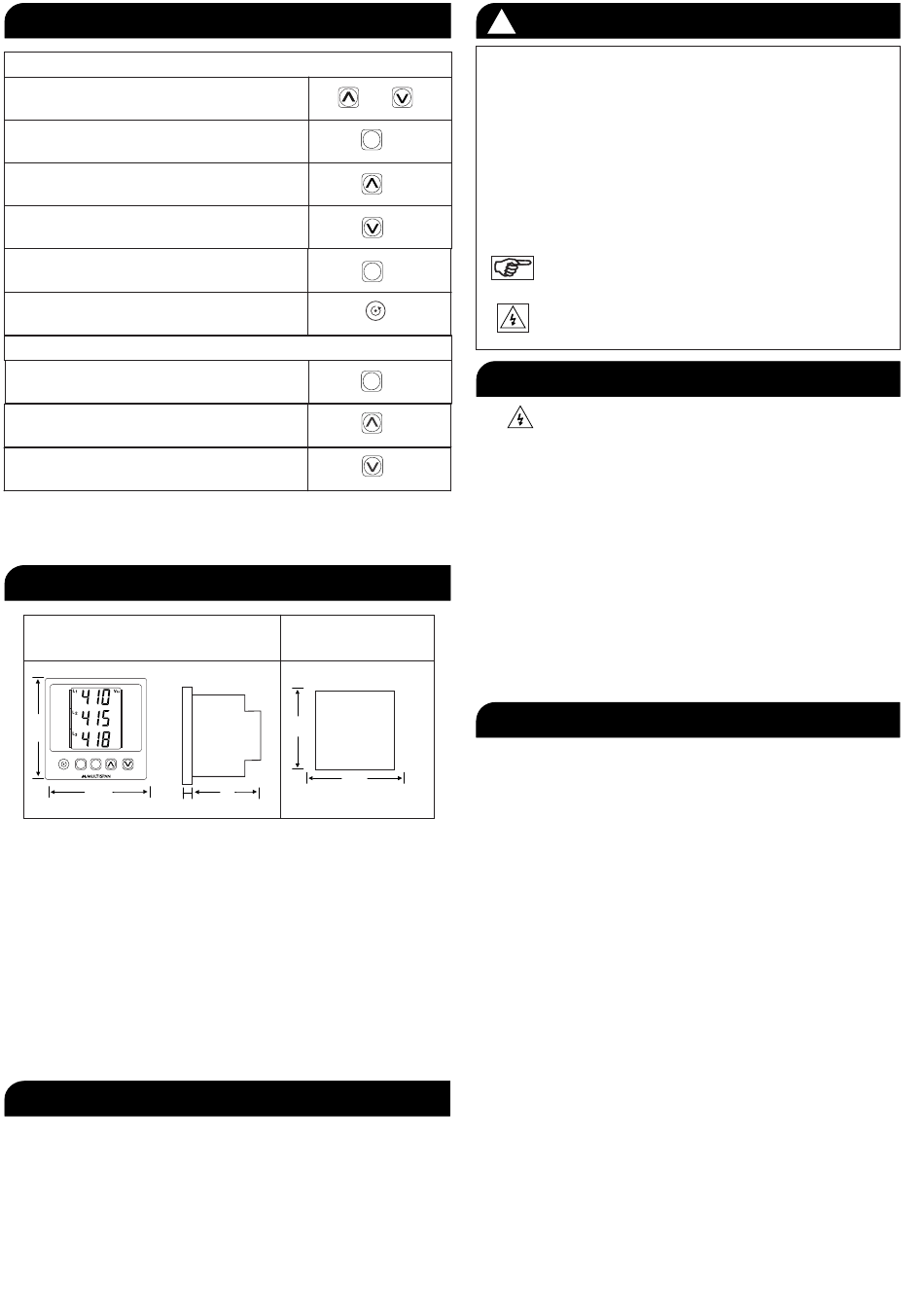

KEY OPERATION
Operator Mode
To View Individual Parameters Value
To Enter In Parameter Setting Mode
To View The Voltage Page While Display
Indicate fault
To View The Current Page While Display
Indicate fault
To Reset The Relay Contact manually after
Tripping
To Scroll & Hold For 5 Second Press
Parameter Setting Mode
Edited Parameter Value to be Set, And Move
to the Next Step
To Increment Parameter Value
To Decrement Parameter Value
MECHANICAL INSTALLATION
Outline Dimension (mm)
MPD 192
R1
96
SET
RST
Scroll
96
3
1. Prepare the panel cutout with proper dimensions as shown
above.
2. Fit the unit into the panel with the help of clamp given.
3. The equipment in its installed state must not come in close
proximity to any heating source, caustic vapors, oil steam,
or other unwanted process byproducts.
4. Use the specified size of crimp terminal (M3.5 screws) to
wire the terminal block. Tightening the screws on the
terminal block using the tightening torque of the range of
1.2 N.m.
5. Do not connect anything to unused terminals.
MAINTENANCE
MAINTENANCE
1. The equipment should be cleaned regularly to avoid
blockage of ventilating parts.
2. Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.
OR
SET
RST
Scroll
SET
Panel Cutout
Dimension (mm)
92
92
53
SAFETY PRECAUTION
!
Please read the "Safety Warnings" in the instruction
manual supplied with the instrument thoroughly and
completely for correct use. Failure to follow the safety rules
can cause fire, trouble, electrical shock, etc. Therefore, make
sure to operate the instrument on a correct power supply
and voltage rating marked on each
If all the equipment is not handled in a manner specified
by the manufacturer, it might impair the protection provided
by the equipment.
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
WARNING GUIDELINES
WARNING : Risk of electric shock.
1) To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is
being supplied.
2) To reduce electro magnetic interference, use wire with
adequate rating and twists of the same of equal size shall
be made with shortest connection.
3. Cable used for connection to power source, must have a
cross section of 1mm or greater. These wires should have
insulations capacity made of at least 1.5kV.
4) A better anti-noise effect can be expected by using
standard power supply cable for the instrument.
INSTALLATION GUIDELINES
1) Do not allow pieces of metal, wire clippings, or fine
metallic fillings from installation to enter the product or
else it may lead to a safety hazard that may in turn
endanger life or cause electrical shock to the operator.
2) Circuit breaker or mains switch must be installed
between power source and supply terminal to facilitate
power 'ON' or 'OFF' function. However this mains switch
or circuit breaker must be installed at convenient place
normally accessible to the operator.
3) Use and store the instrument within the specified ambient
temperature and humidity ranges as mentioned in this
manual.
instrument.
