OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
637118-C for air section repair (see page 6).
637137-63-C for fluid section repair.
PUMP DATA
Models . . . . . . . . . . . . . . . . . 650717-C
Application . . . . . . . . . . . . Diesel Fuel, Kerosene, Aviation Fuel,
Fuel Oil and Unleaded Fuel
Pump Type . . . . . . . . . . . . . U.L. Listed Metallic Air Operated Double
Diaphragm for use with Petroleum Product Dispensing Systems
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.0 lbs (9.96 kg)
Maximum Air Inlet Pressure . . . . . . . . . . . 50 psig (3.4 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 50 psig (3.4 bar)
Maximum Flow Rate (flooded inlet) . . . 29 gpm (109.8 l.p.m.)
Maximum Particle Size . . . . . . . . . . . . . . . . 1/8" (3.2 mm)
Maximum Temperature Limits . . . . . . . . . -20° to 180° F (-29° to 82° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 60 cpm . . . . . . . . . . 64.5 db(A)
 The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (L
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
GENERAL DESCRIPTION
The ARO U.L. listed pump for pumping petroleum products,
offers high volume delivery at low air pressures and easy
self-priming. This model is designed specifically for the trans-
fer, bulk un-loading or fueling applications. It includes a pres-
sure relief valve (per U.L. Specification 79) which restricts the
fluid outlet pressure to under 50 psi (3.4 bar), The relief valve
can be plumbed to return the bleed off fuel to the storage
container.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
U.L. LISTED, 1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
) to meet the intent of
Aeq
© 2023
CCN 15201437
650717-C

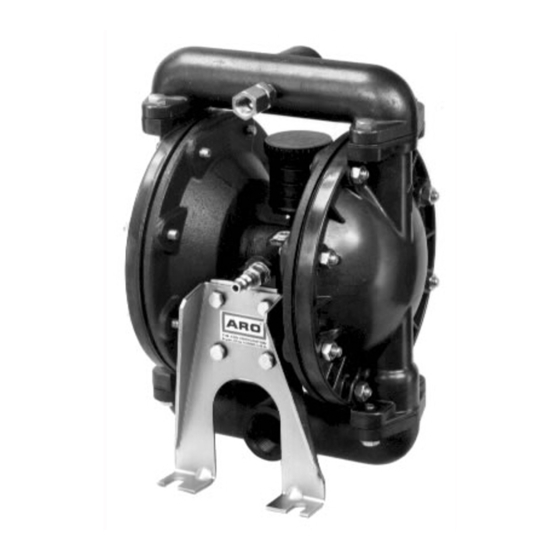

1" DIAPHRAGM PUMP
Figure 1
MODEL DESCRIPTION CHART
DIAPHRAGM MATERIAL
7 - Viton
“
CENTER BODY MATERIAL, THREADS
Aluminum, 1 - 11-1/2 NPTF - 1
FLUID CAP / MANIFOLD MATERIAL, INLET / OUTLET
Aluminum, Single (Steel Hardware)
Seat Material
PVDF
Ball Material
Acetal
650717-C
RELEASED:
8-11-03
REVISED:
1-27-23
(REV: F)
65071 X - C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO 650717-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingersoll-Rand ARO 650717-C

Summary of Contents for Ingersoll-Rand ARO 650717-C

  • Page 1 OPERATOR’S MANUAL 650717-C INCLUDING: OPERATION, INSTALLATION & MAINTENANCE RELEASED: 8-11-03 REVISED: 1-27-23 (REV: F) 1" DIAPHRAGM PUMP U.L. LISTED, 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS 650717-C 1"...

  • Page 2: Operating And Safety Precautions

    OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. HAZARDOUS MATERIALS. Can cause serious WARNING EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS injury or property damage. Do not attempt to return STATIC SPARK HAZARDOUS PRESSURE a pump to the factory or service center that contains hazardous material.

  • Page 3: Air And Lube Requirements

    AIR AND LUBE REQUIREMENTS OPERATING INSTRUCTIONS EXCESSIVE AIR PRESSURE. Can cause pump The pump should never be operated at pressures ex- WARNING and property damage. The air supply must be limited ceeding 50 psig (345 kPa) inlet air pressure. This pump is to 50 psig (3.4 bar) maximum inlet air pressure.

  • Page 4: Fluid Section Disassembly

    PARTS LIST / FLUID SECTION  KITS INCLUDE: (22) BALLS, (7) DIAPHRAGM, items: 2, 3, 19, (Refer to chart below) and 94276 Lubriplate® FML-2 grease. WETTED COMMON PARTS Item Description Qty Part No. Item Description Qty Part No. (size) (size) Fluid Section Service Kits 637137-63-C 21 Seat...
  • Page 5 PARTS LIST / FLUID SECTION DIAPHRAGM BALL TORQUE REQUIREMENTS LUBRICATION / SEALANTS Apply Lubriplate® FML-2 grease to all “O” rings, “U” Cups & mating parts. Apply gasoline-resistant pipe sealant to pipe threads. Figure 2 650717-C Page 5 of 8...

  • Page 6: Pilot Valve Reassembly

    PARTS LIST / AIR MOTOR SECTION  Indicates parts included in 637118-C air section service kit. AIR MOTOR PARTS Item Description Qty Part No. Item Description Qty Part No. (size) (size) 101 Motor Body (1) 66836-1 117 Gasket (1) 92004 [B/Ny] ...
  • Page 7 PARTS LIST / AIR MOTOR SECTION IMPORTANT BE CERTAIN TO ORIENT (115) SPACER LEGS AWAY FROM BLOCKING INTERNAL PORTS 105 ( WHEN REASSEMBLING AIR SECTION MAJOR VALVE See cross section detail gure 4. Figure 3 195A 195A 195B ) 105 PILOT VALVE MAJOR VALVE CROSS SECTION DETAIL ) TORQUE REQUIREMENTS (...

  • Page 8: Troubleshooting

    TROUBLE SHOOTING Check for pump cavitation - suction pipe should be sized Product discharged from exhaust outlet. Check for diaphragm rupture. at least as large as the inlet thread diameter of the pump Check tightness of diaphragm nut. for proper flow if high viscosity fluids are being pumped. Air bubbles in product discharge.
