OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE.
INCLUDE MANUALS: 253XX-XXX Heavy Duty Air Line Filter-Regulator-Lubricator (pn 103942).
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
Apply anaerobic pipe sealant to male threads at assembly.
3
4 4

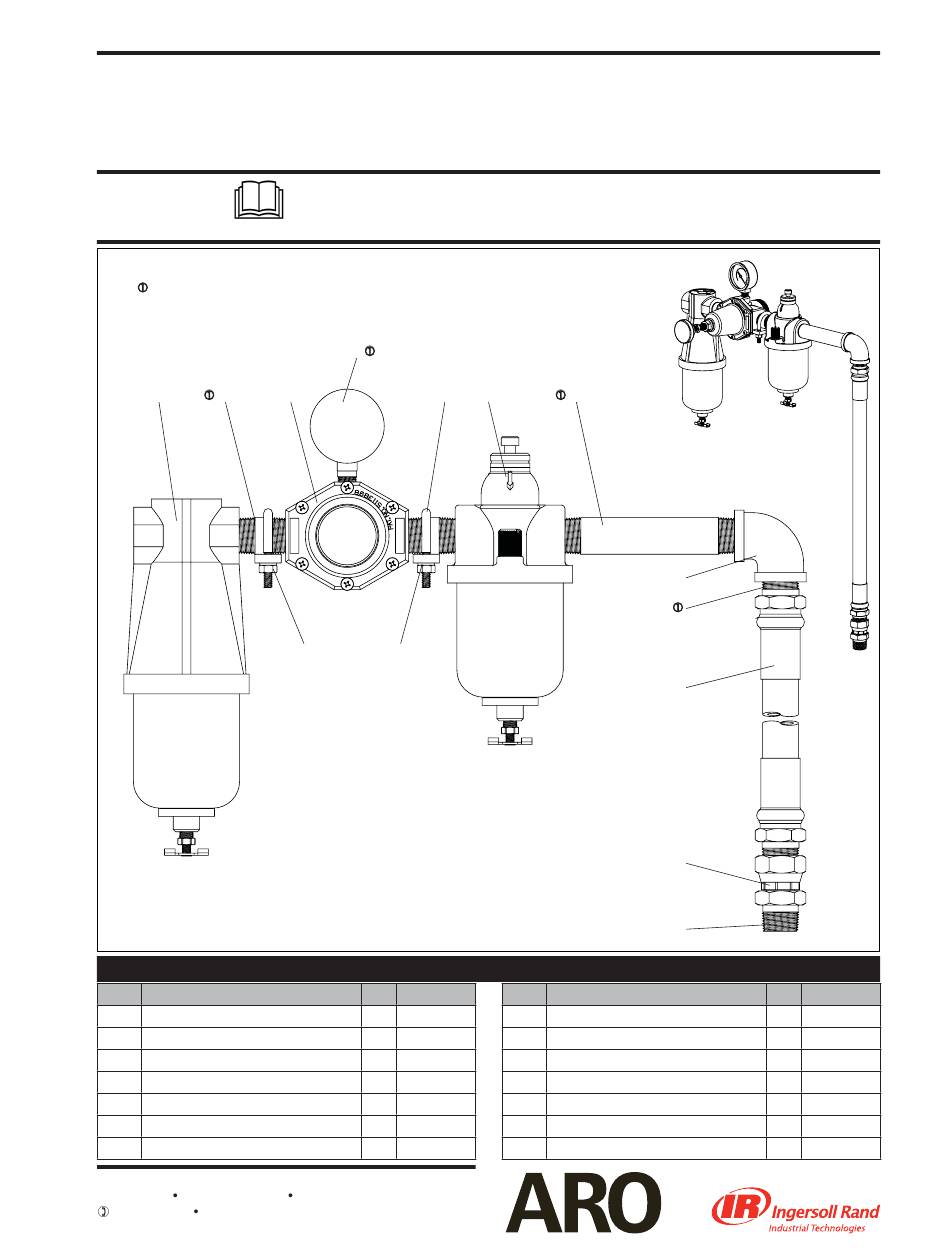

Figure 1
Item Description
(size)
3 Filter
4 Nipple
(3/4 - 14 N.P.T. x 2")
5 Gauge
6 Lubricator
7 Nipple
(3/4 - 14 N.P.T. x 5-1/2")
8 Elbow
(3/4 - 14 N.P.T.)
9 Hose
(3/4 - 14 N.P.T.F. x 1.5 feet)
INGERSOLL RAND COMPANY LTD
P.O. BOX 151 ONE ARO CENTER BRYAN, OHIO 43506-0151
(800) 276-4658 FAX (800) 266-7016
fl uids.ingersollrand.com
651729

Air Manifold Assembly

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
5 5
15 15
11 11
12 12
13 13

PARTS LIST

(Qty) Part No.
(1) 25351-010
(2) Y27-55-C
(1) 29728
(1) 26351-010
(1) Y44-48-C
(1) Y43-15-C
(1) 622651-1-F
© 2008
CCN 99711277
6
7 7
3/4 - 14 N.P.T. Air Outlet
Item Description
(size)
10 Swivel
11 "U" Bolt
(1/4" - 20)
12 Nut
(1/4" - 20)
13 Lock Washer
(1/4")
14 Mounting Plate
(see fi gure 2)
15 Air Regulator
16 Cap Screw
(1/4" - 20 x 5/8") (see fi gure 3)
651729
RELEASED:
9-9-94
REVISED:
5-7-08
(REV. D)
8
9
10 10
(Qty) Part No.
(1) 75367
(2) 76254
(4) Y12-4-C
(8) Y14-416
(2) 90935
(1) 27354-000
(4) Y6-42-C
