Summary of Contents for THORLABS HTPS

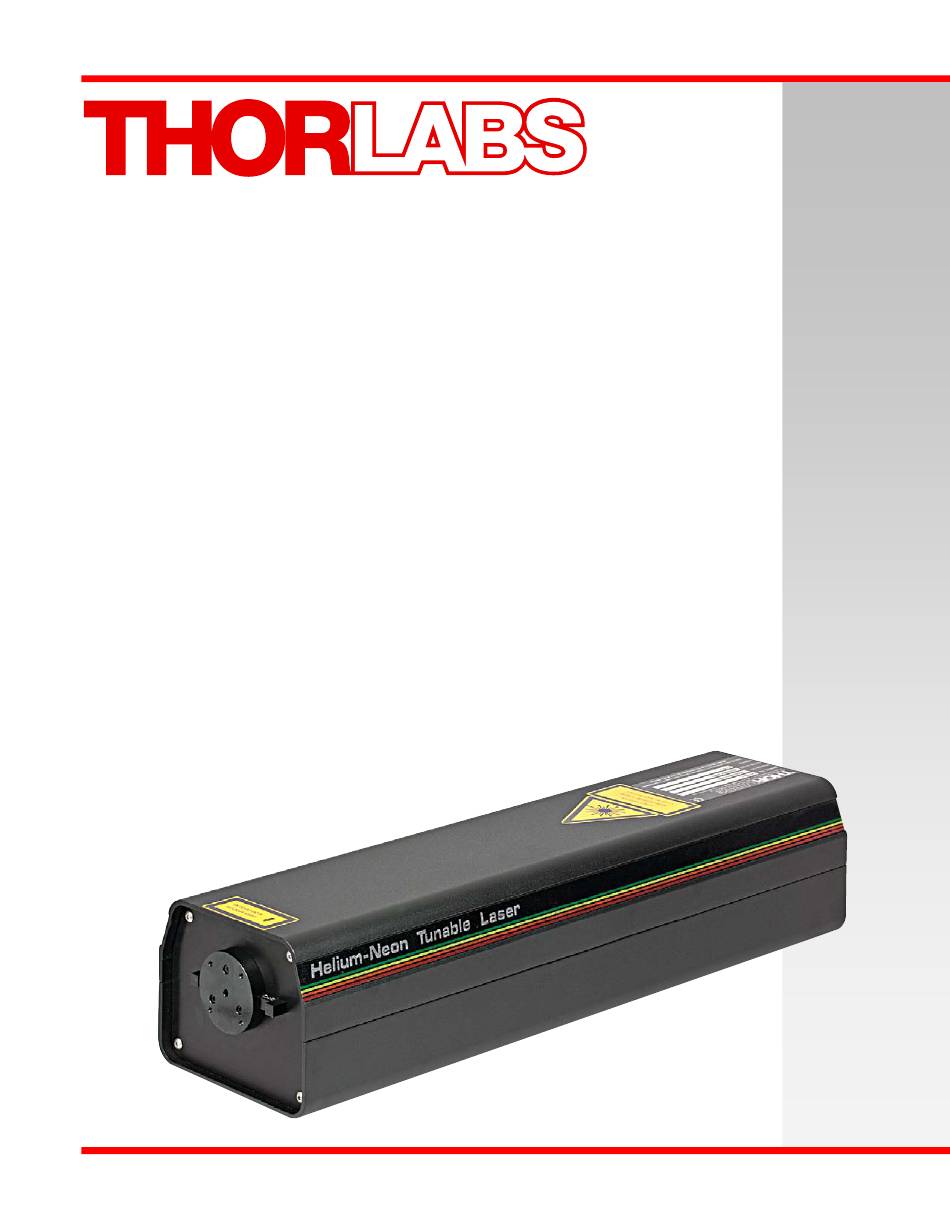

- Page 1 HTPS, HTPS-EC Tunable HeNe Laser Systems Operating Manual...
-
Page 2: Table Of Contents
Noise, Oscillations, and Fluctuation Sources ......................19 Part 7. Specifications ..........................20 7.1. Mechanical Drawing ..........................20 Part 8. Regulatory ..........................21 Part 9. Thorlabs Worldwide Contacts ....................22 12112-S01 Rev B, August 30, 2010 Page 2 www.thorlabs.com... - Page 3 Figure 8 Laser Rear Panel ........................13 Figure 9 Laser Shutter Control, Picture shows the Shutter CLOSED..........13 Figure 10 Dimensional Drawing ......................20 12112-S01 Rev B, August 30, 2010 Page 3 www.thorlabs.com...
-
Page 4: Part 1. Safety
• Operating this product in the presence of flammable gases or fumes is extremely hazardous. • Disconnect the power cord before replacing fuses. • Clean the laser head and power supply with a dry, soft cloth. Do not use liquids. 12112-S01 Rev B, August 30, 2010 Page 4 www.thorlabs.com... -
Page 5: Ce Compliance
CE requirements. In order for the CE regulations to be met, all Thorlabs power supplies must be used with an input line cord with a length of less than three meters. The factory-included line cord has a length of approximately two meters. Other cords may be used, but they must have a length of no longer than three meters in order for the laser system to remain CE compliant. -
Page 6: Part 2. Description
Tunable HeNe Laser System Part 2. Description Thorlabs’ high-power red (632.8) Helium-Neon gas lasers have a maximum stable output power of 50.0 mW and a fundamental Gaussian beam. The laser comes in two versions, one for 115 VAC and another for 220 VAC voltage source. The output beam is linearly polarized. -
Page 7: Laser Power Supply
Systems one end of the laser tube, and an output coupler mirror with approximately 1% transmission at the other end. 12112-S01 Rev B, August 30, 2010 Page 7 www.thorlabs.com... -
Page 8: Hene Linewidth
Transmission at Output Coupler (OC) HeNe lasers tend to be small, with cavity lengths of around 15 cm up to 0.5 m and optical output powers ranging from 1 mW to 100 mW. Thorlabs offers output powers up to 50 mW. HeNe Linewidth A red HeNe laser wavelength is 632.816 nm in air, though it is often reported as either 632 nm or... -
Page 9: Figure 4 Hene Gain Curve Showing Cavity Modes
From these states, the electrons quickly decay to the ground state. The HeNe laser’s power output is limited because the neon upper level saturates with higher current, while the lower level varies linearly with current. 12112-S01 Rev B, August 30, 2010 Page 9 www.thorlabs.com... -
Page 10: Hene Polarization
Depending on the time scale of an application, large power fluctuations are possible. Polarized Beam The state of polarization in a polarized HeNe laser beam is linear, making these lasers ideal for polarization-sensitive applications. 12112-S01 Rev B, August 30, 2010 Page 10 www.thorlabs.com... -
Page 11: Part 3. Unpacking
The equipment included in this shipment should match the packing slip attached to the box. Verify that the correct product was shipped to you by matching the item number on the box. If the shipment is incomplete, or if an incorrect item was shipped to you, please notify Thorlabs immediately. This package should contain: •... -
Page 12: Part 4. Set-Up
Connector not locked into place Incorrectly Inserted Correctly Inserted 5) Insert the power switch keys into the power supply. 12112-S01 Rev B, August 30, 2010 Page 12 www.thorlabs.com... -
Page 13: Part 5. Operation
Figure 8 Laser Rear Panel 3) Open the aperture by sliding the lever left so the ON label is visible. Lever Slides Figure 9 Laser Shutter Control, Picture shows the Shutter CLOSED. 12112-S01 Rev B, August 30, 2010 Page 13 www.thorlabs.com... -
Page 14: Laser Alignment Procedure
Number of Turns Color Selector Transverse Selector The adjustment values are usable with this unit only! Serial No.: If the laser still fails to lase, contact your local tech support office for assistance. 12112-S01 Rev B, August 30, 2010 Page 14 www.thorlabs.com... -
Page 15: Cleaning
Then remove the two top screws from the rear panel of the laser. Remove these screws last. Remove these screws first. 3. Carefully remove the top cover and the front plate from the laser housing. 12112-S01 Rev B, August 30, 2010 Page 15 www.thorlabs.com... - Page 16 7. Rotate the color selector knob to ensure that all wavelengths are present. If not, ensure that the system is tuned to its optimal power. If all wavelengths are still not present, repeat steps 5 and 6 again. 12112-S01 Rev B, August 30, 2010 Page 16 www.thorlabs.com...
- Page 17 14. Verify that the alignment marks on the two adjustment knobs have not changed. If they have, annotate in this manual their present turn values by turning each one clockwise until they stop and then counting the number of turns until the new alignment is reached. 12112-S01 Rev B, August 30, 2010 Page 17 www.thorlabs.com...
-
Page 18: Part 6. Troubleshooting
However, any polarization optics in the path (intentional or unintentional) can cause large variations in the output power. These applications should only be used with a polarized laser. 12112-S01 Rev B, August 30, 2010 Page 18 www.thorlabs.com... -
Page 19: Noise, Oscillations, And Fluctuation Sources
• Switching noise from DC high voltage power supplies (40 kHz) • Plasma oscillation (tens of MHz) • Transverse mode beat notes (hundreds of MHz) • Axial mode beats (at FSR, hundreds of MHz) 12112-S01 Rev B, August 30, 2010 Page 19 www.thorlabs.com... -
Page 20: Part 7. Specifications
Tunable HeNe Laser System Part 7. Specifications Item # HTPS HTPS-EC 633/612/604/594/543 nm Wavelength 4.0/2.5/0.5/0.6/0.3 mW Min Output Power 10.0 mW Maximum Output Power <1% rms Noise (30 Hz – 10 MHz) Linear > 500:1 Polarization > 99% Mode Structure 0.77/0.76/0.75/0.74/0.71 mm... -
Page 21: Part 8. Regulatory
CB’s, housing gs etc.). If you wish t to return a T Thorlabs uni it for waste r recovery, pl ease contact t Thorlabs o or your neare est dealer for further in nformation. 8.1. Was ste Treatm ment is Y... -
Page 22: Part 9. Thorlabs Worldwide Contacts
Tunable HeNe Laser System Part 9. Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com... - Page 23 www.thorlabs.com...
- Page 24 HeNe Laser Quick Start Guide 1. Unpack the Laser and Power Supply 2. High-Voltage Power Supply a. Carefully unpack the laser, and place a. Your laser comes with a built-in, high-voltage power supply designed for use it securely on a solid, stable work with either 120 VAC or 230 VAC (-EC version).
