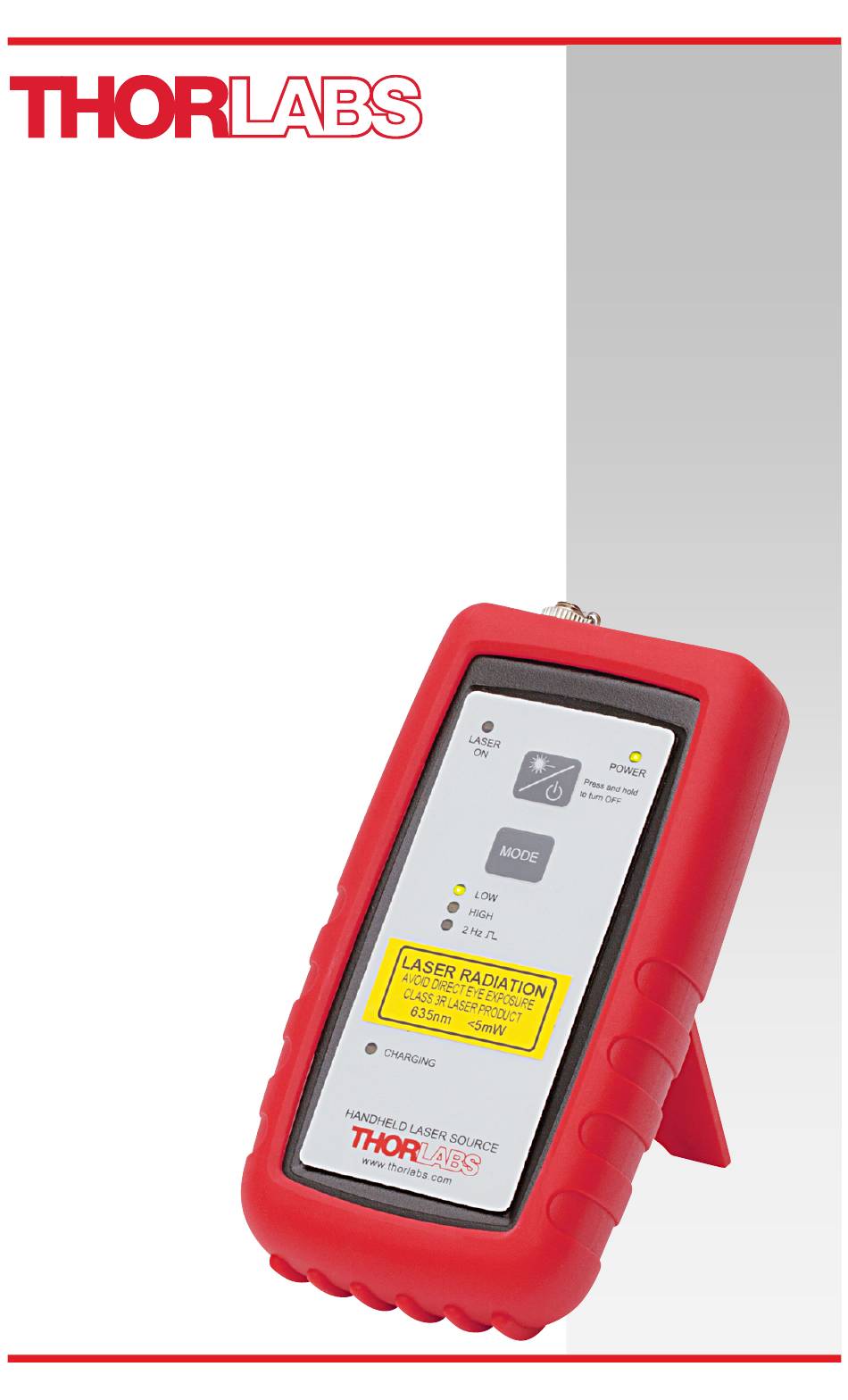

- Page 1 HLS635 Handheld Laser Source User Guide...
-
Page 2: Table Of Contents
Chapter 8 Troubleshooting and Cleaning ........11 Chapter 9 Regulatory ................ 12 Chapter 10 Certificate of Conformance ..........13 Chapter 11 Thorlabs Worldwide Contacts ........14 Page 1 Rev E, January 11, 2018... -
Page 3: Chapter 1 Warning Symbol Definitions
Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or chassis Terminal Equipotentiality... -
Page 4: Chapter 2 Safety
<5 mW Important Note The HLS635 has been designed to provide many hours of trouble-free performance. To ensure proper operation, be sure follow the instructions below. The unit is supplied with a battery charger which has a multi-blade wall adapter. -
Page 5: Chapter 3 Description
The laser output of the HLS635 may be set in 3 modes: low power (~1 mW), high power (≥2.5 mW), and a pulse mode that switches the laser from high power to off at 2 Hz. The selected mode is indicated by indicator lights on the front panel of the HLS635. -
Page 6: Chapter 4 Setup
When the device is fully charged, the LED will turn off. 4.2. Quick Start Information The HLS635 can be used right out of the box safely, but it must be connected to the AC mains during use. In addition, the battery will not charge while the device is powered on and enabled. -
Page 7: Chapter 5 Operation

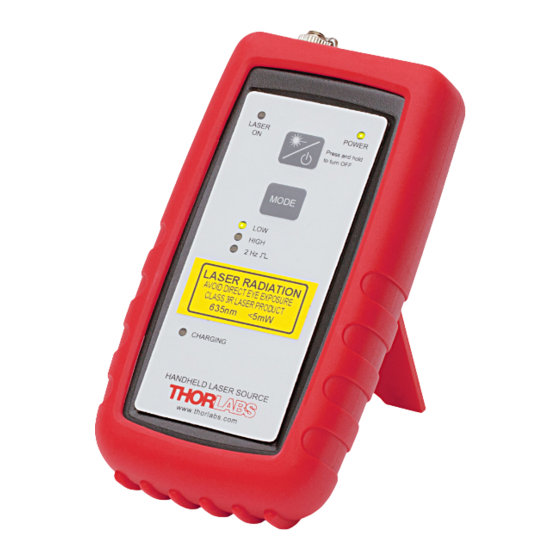

Chapter 5: Operation Chapter 5 Operation Power Adapter FC/PC Fiber Port Port Fiber Port Dust Cover Laser Enabled LED Power On LED When green, laser is on. Unit is on when green. Unit will not charge when this LED is green. Power/Enable Button Mode Indicator LED Press for 3 seconds to... -
Page 8: Turning On The Source
Handheld Laser Source 5.1. Turning on the Source The HLS635 can be used right out of the box safely, but it must be connected to an AC outlet during use. Also, the battery will not charge while the device is powered on and enabled. -
Page 9: Charging The Unit
To prevent this, it is safe to leave the unit plugged into the power adapter and allow the unit to self-charge periodically. The HLS635 is powered by the DC connector any time it is attached. Battery power is only used when the DC connector is removed. DC power may be connected and disconnected while the HLS635 is being used without interruption. -
Page 10: Chapter 6 Specifications
When not in use, the HLS635 should be stored in a cool dry place. The HLS635 battery cannot be charged below 10 °C (50 °F) or above 38 °C (100°F). The charging lamp will go out and charging will discontinue under these conditions. -
Page 11: Chapter 7 Mechanical Drawing
Chapter 7: Mechanical Drawing Chapter 7 Mechanical Drawing 0.48 in (12.2 mm) 0.94 in (24 mm) 0.60 in 0.60 in (15.1 mm) (15.1 mm) 4.95 in 5.33 in (125.7 mm) (135.4 mm) 2.74 in (69.6 mm) 21144-D02 Page 10... -
Page 12: Chapter 8 Troubleshooting And Cleaning
Handheld Laser Source Chapter 8 Troubleshooting and Cleaning Once it is set up, the HLS635 is easy to operate and provides many hours of use. In case you experience any problems, below are a few checks to help in troubleshooting the problem. If you have any questions, please contact your local Tech Support office. -
Page 13: Chapter 9 Regulatory
9.1. Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 14: Chapter 10 Certificate Of Conformance
Handheld Laser Source Chapter 10 Certificate of Conformance Page 13 Rev E, January 11, 2018... -
Page 15: Chapter 11 Thorlabs Worldwide Contacts
Fax: +46-31-703-40-45 www.thorlabs.de www.thorlabs.com Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33 (0) 970 444 844 Tel: +55-16-3413 7062... - Page 16 www.thorlabs.com...
