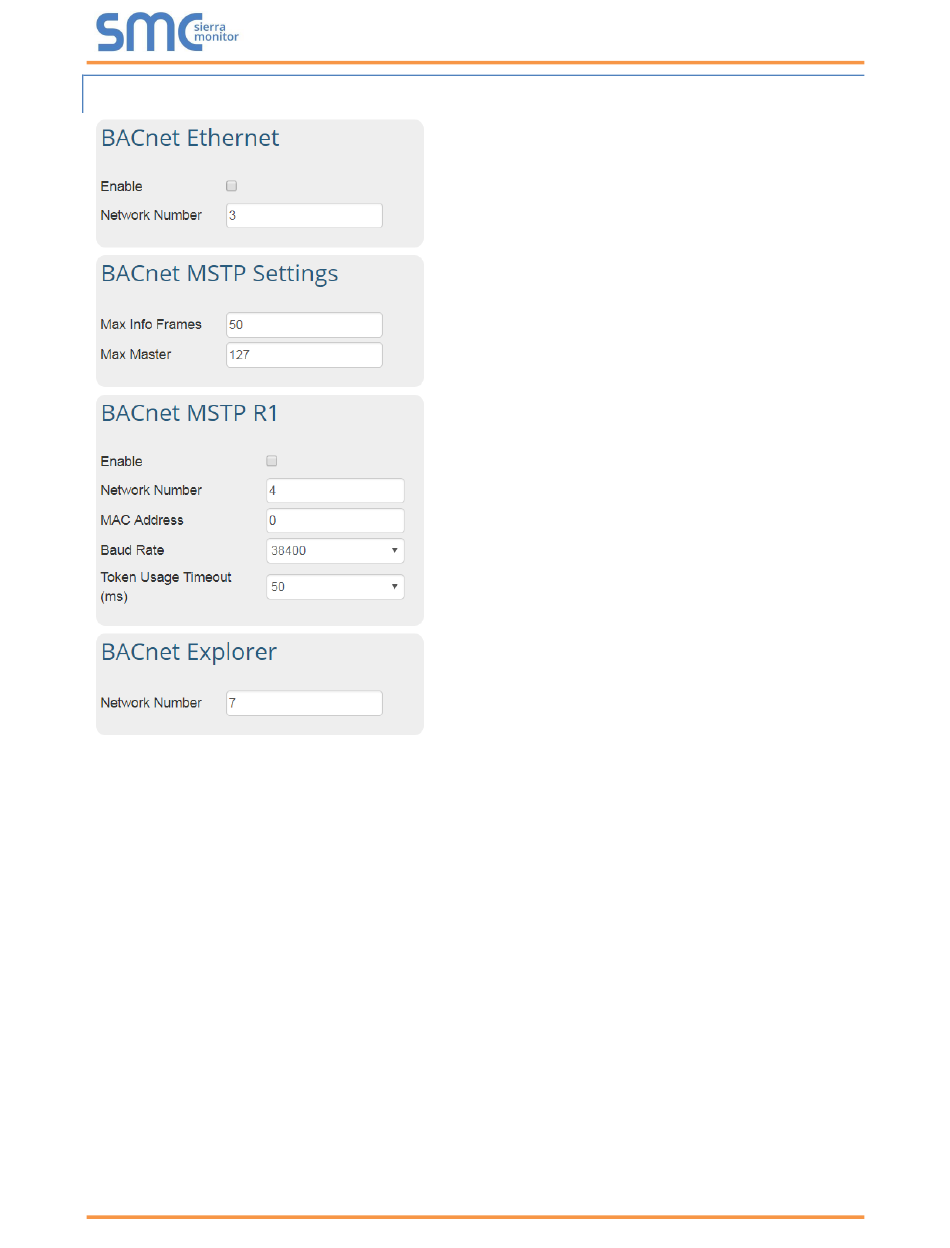

6.1.5 BACnet MS/TP, BACnet Ethernet and BACnet Explorer

• Max Info Frames – the number of transactions the

Router may initiate while it has the MS/TP token.

Default is 50.

• Max Master – the highest MAC address to scan for

other MS/TP master devices. The default of 127 is

guaranteed to discover all other MS/TP master

devices on the network.

• MAC Address – legal values are 0 to 127, must be

unique on the physical network.

• Baud Rate – the serial baud rate used on the

network.

• Token Usage Timeout (ms) – the number of

milliseconds the router will wait before deciding that

another master has dropped the MS/TP token. This

value must be between 20ms and 100ms. Choose a

larger value to improve reliability when working with

slow MS/TP devices that may not be able to meet

strict timing specifications.
