Instructions – Parts List
Parts

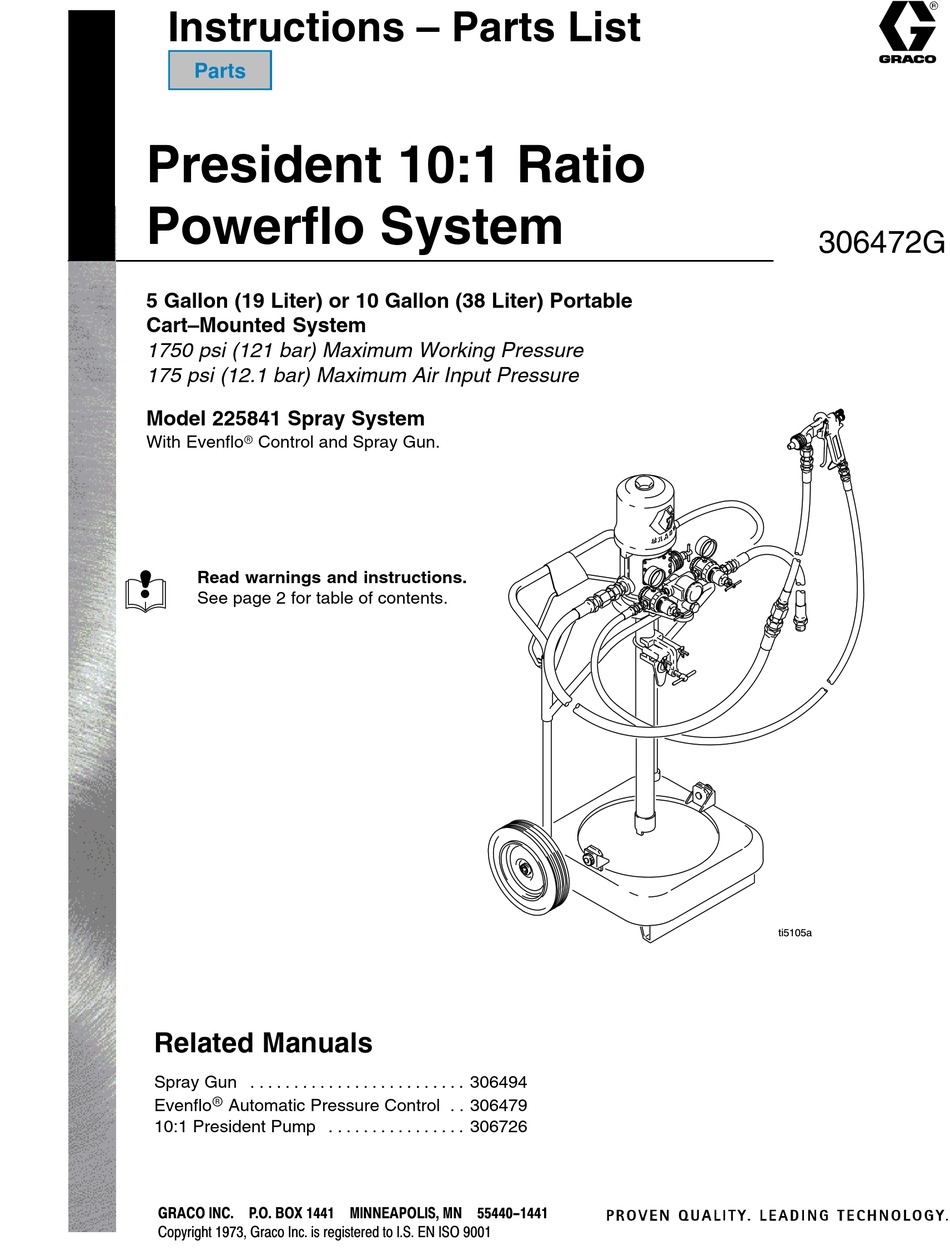

President 10:1 Ratio
Powerflo System
5 Gallon (19 Liter) or 10 Gallon (38 Liter) Portable
Cart–Mounted System
1750 psi (121 bar) Maximum Working Pressure
175 psi (12.1 bar) Maximum Air Input Pressure
Model 225841 Spray System
With Evenflor Control and Spray Gun.
Read warnings and instructions.
See page 2 for table of contents.
Related Manuals
Spray Gun
. . . . . . . . . . . . . . . . . . . . . . . . .
r
Evenflo
Automatic Pressure Control
10:1 President Pump
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1973, Graco Inc. is registered to I.S. EN ISO 9001
306494
. .
306479
. . . . . . . . . . . . . . . .
306726
306472G
ti5105a
Advertisement
Related Manuals for Graco 225841
Summary of Contents for Graco 225841
- Page 1 306479 10:1 President Pump ....306726 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1973, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment.
- Page 3 WARNING INJECTION HAZARD Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin is a serious injury.
- Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re- sult in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 5. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
- Page 5 5. Object being sprayed: follow your local code. NOTE: Always use Genuine Graco Parts and Acces- 6. Solvent pails used when flushing: follow your local sories, available from your Graco distributor.
- Page 6 Installation Typical Installation WARNING Slide the truck handle (206) through the elevator (304) A bleed-type master air valve (A) is required in your slide tubes and into the truck base sockets. Tighten system to reduce the risk of serious bodily injury, the setscrews (205) it the sockets as shown in Fig.
- Page 7 Installation Bleed-type Master Air Valve Air Filter Air Hose Ground Wire 18” Hose Evenflo Control 3/4” Union 3/8” Union Swivel Union Nipple 1” ID Fluid Hose 3/4” ID Fluid Hose 3/4 x 1” Union Air Supply Hose Gun Air Hose Pump Hand Spray Gun Screw...
- Page 8 Operation Pressure Relief Procedure Relax-A-Valve Automatic Position With the Evenflo control, its bypass valve, and the To set the pump Relax-A-Valve (G) in the automatic pump Relax-A-Valve properly set, fluid pressure is position, loosen the locknut (H), turn the T-handle (J) relieved from the pump and hose each time you re- clockwise as far as possible, and then back-off the lease the gun trigger.
- Page 9 Operation Fig. 4 Mixing by Circulation (Fig. 4) 4. Set the Relax-A-Valve (G) to automatic. 5. Open the Evenflo ball valve (L) (handle parallel to 1. Close the Evenflo bypass valve (K) by turning the body), and the bleed-type master air valve (A). valve handle clockwise.
- Page 10 Maintenance Flush with a fluid that is compatible with the fluid you WARNING are pumping and with the wetted parts in your system. Check with your fluid manufacturer or supplier for To reduce the risk of serious injury whenever you recommended flushing fluids and flushing frequency.
- Page 11 Parts Model 225841 Spray System with Evenflo Control and Spray Gun 104c 104b 104g 104f 104c 104a 104e 104d 208, 305 ti5107a 306472...
- Page 12 Parts Model 225841 Spray System with Evenflo Control and Spray Gun Part No. Description Qty. Part No. Description Qty. 203650 TRUCK, portable 158256 SWIVEL, union (not shown) Includes items 202 to 209 Ref No. 101 202657 PUMP, 10:1 President Portable Truck...
- Page 13 ................. 90 lb (41 Kg) Additional CFM of air is required for spray gun. ** Sound Level measured at maximum system conditions ( 225841: 175 psi, 1750 psi fluid). Sound Level measured per ISO 3744–1981. Dimensions 39”...
- Page 14 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
