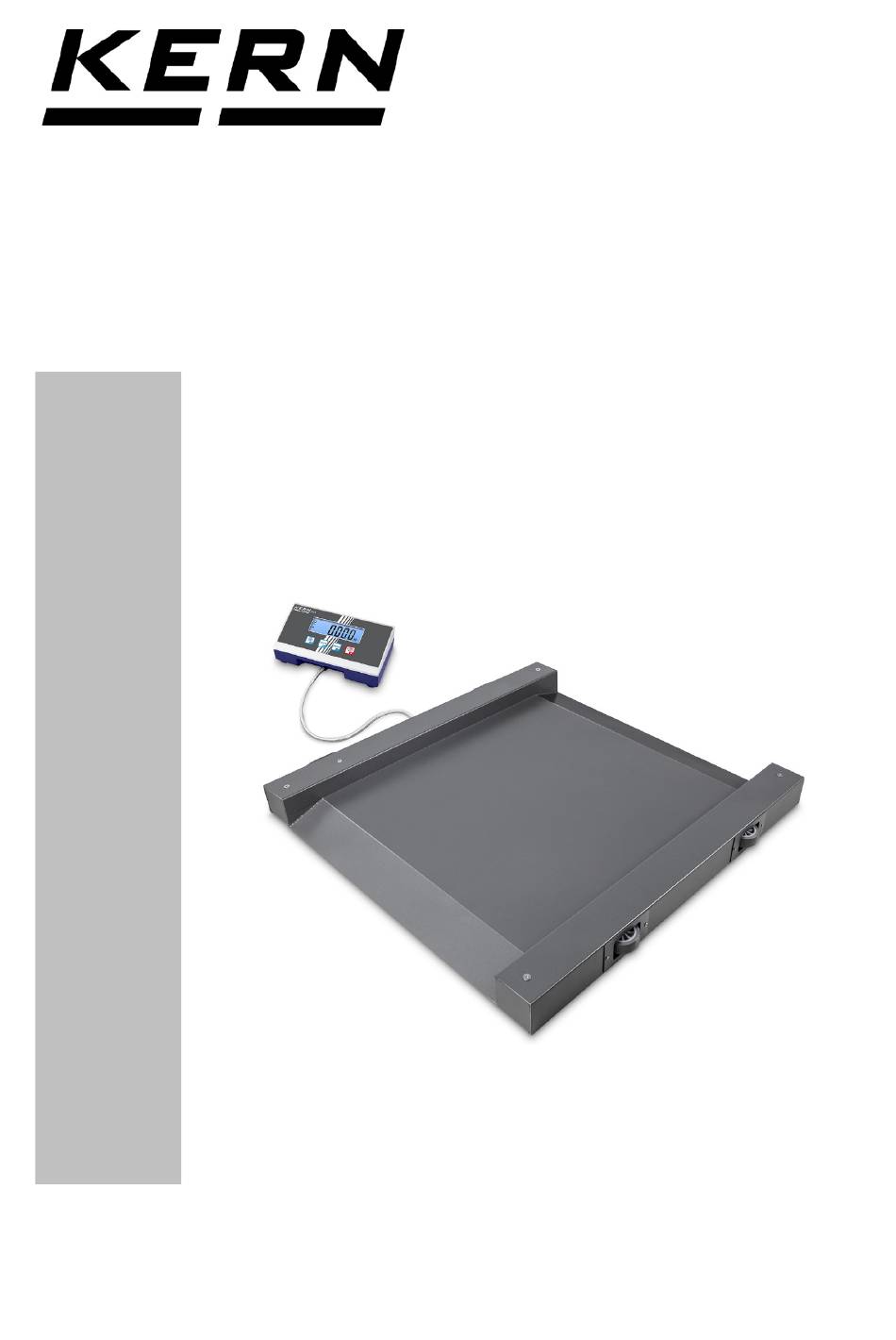

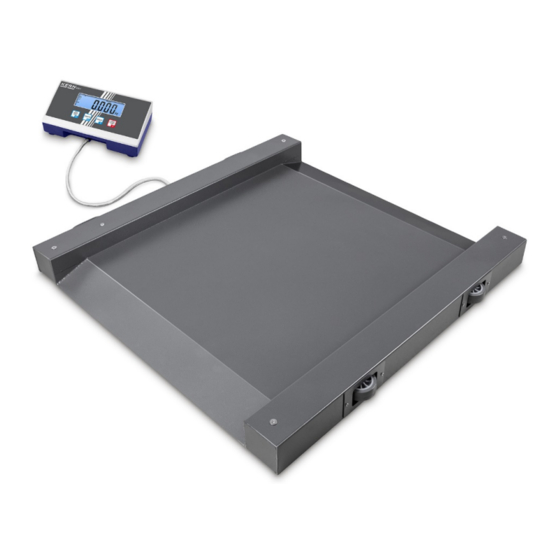

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Drive-through scale KERN NIB Version 1.0 2020-09 NIB-BA-e-2010...
-
Page 2: Table Of Contents
KERN NIB Version 1.0 2020-09 Operating instructions Drive-through scale Contents Technical data ....................4 Appliance overview display unit ..............5 Keyboard overview ....................6 Basic Information (General) ................6 Proper use ......................... 6 Improper Use ......................6 Warranty ........................7 Monitoring of Test Resources .................. - Page 3 Servicing, maintenance .....................17 Disposal ........................17 Error messages, troubleshooting guide ............ 18 Declaration of conformity ................19 NIB-BA-e-2010...
-
Page 4: Technical Data
1 Technical data KERN NIB 300K-1 NIB 600K-2 Item no./ Type TNIB 300K-1-A TNIB 600K-2-A Readability (d) 100 g 200 g Weighing range (max) 300 kg 600 kg Reproducibility 100 g 100 g Linearity ± 100 g ± 100 g... -
Page 5: Appliance Overview Display Unit
2 Appliance overview display unit 1. Weight display 2. Buttons 3. Battery compartment 4. Guide rail support base / stand 5. End stop support base / stand 6. Mains adapter connection 7. Connection load cell cable NIB-BA-e-2010... -
Page 6: Keyboard Overview
Changes to the display unit's design are not permitted. This may lead to incorrect weighing results, safety-related faults and destruction of the display unit. The display unit may only be operated in accordance with the described default settings. Other areas of use must be released by KERN in writing. NIB-BA-e-2010... -
Page 7: Warranty
KERN’s home page (www.kern-sohn.com with regard to the monitoring of display units’ test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and display units may be calibrated (return to the national standard) fast and at moderate cost. -
Page 8: Basic Safety Precautions
4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 4.2 Personnel training The appliance may only be operated and maintained by trained personnel. -
Page 9: Unpacking And Placing
During initial installation and after each change of work area it is necessary to level the balance. 6.4 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN. NIB-BA-e-2010... -
Page 10: Adjustment
• The adjustment weight to be used depends on the capacity of the weighing system. Carry out adjustment as near as possible to the weighing system’s maximum weight. Info about test weights can be found on the Internet at: http://www.kern-sohn.com. • Observe stable environmental conditions. Stabilisation requires a certain warm-up time. - Page 11 An error message will be displayed in the event of an adjustment error or incorrect adjustment weight. Remove the adjustment weight and repeat the adjustment process. Keep the adjustment weight close to the balance. Daily control of the weighing exactness is recommended for quality-relevant applications. NIB-BA-e-2010...
-
Page 12: Operation
Resetting to zero corrects the influence of light soiling on the weighing plate. To unload the weighing system Press , the zero display appears. 7.4 Simple weighing Place goods to be weighed on balance. Wait for stability display []. Read weighing result. NIB-BA-e-2010... -
Page 13: Weighing With Tare
After removing the weighing container, the weight of the weighing container appears as negative display. The tare weight is saved until it is deleted. Delete tare value: Unload the balance and press , zero display will appear. NIB-BA-e-2010... -
Page 14: Hold Function (Animal Weighing Function)
The indicator [hold] turns off, the balance will return to the normal weighing mode. By pressing again, this function can be repeated any number of times. There is no average value calculation in the event of too much movement (heavy display oscillation). NIB-BA-e-2010... -
Page 15: Menu
Confirm selected function by . The current setting will be displayed. Select the desired parameter with . Return to menu by Press to exit the menu. The balance returns automatically into weighing mode. NIB-BA-e-2010... -
Page 16: Menu Overview
• 0.5 d/s ZP 1 • 1 d/s ZP 2 • 2 d/s ZP 3 • 3 d/s ZP 4 • 5 d/s ZP 5 G-value (value of the local gravitational acceleration) Adjustable Factory settings are marked by *. NIB-BA-e-2010... -
Page 17: Servicing, Maintenance, Disposal
9.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 9.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 18: Error Messages, Troubleshooting Guide
• Missing internal memory b-Err • Incorrect adjusting weight 1-Err • Inappropriate adjustment 2-Err • Item weight too low l-Err Should other error messages occur, switch device off and then on again. If the error message remains inform manufacturer. NIB-BA-e-2010... -
Page 19: Declaration Of Conformity
11 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce NIB-BA-e-2010...
