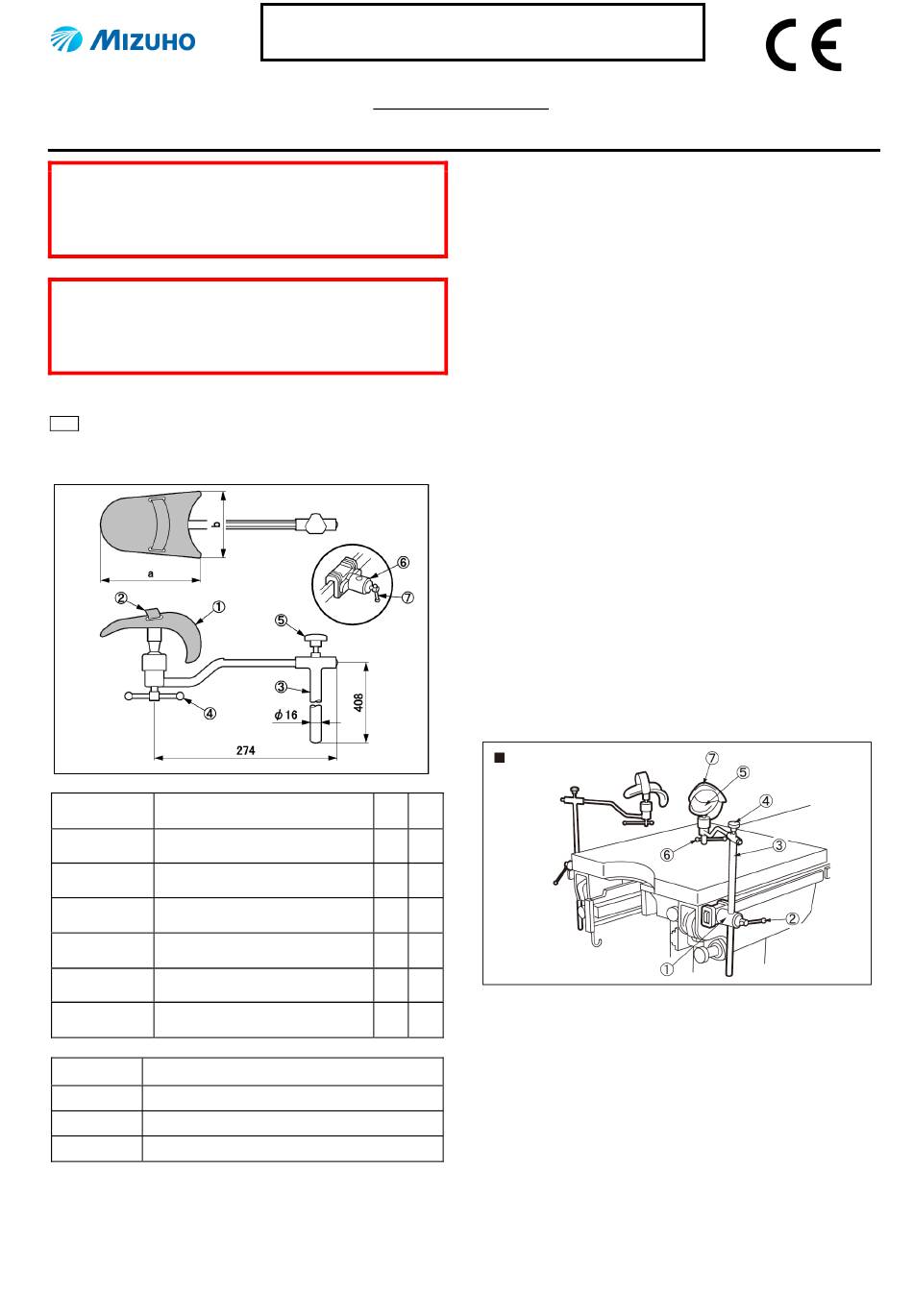

Mizuho MES-CK08-070-16EN-0 Instructions For Use

MES-CK08-070-16EN-0
PREPARED: (2023-07-21) (Version 6)
Warning
When using operating table accessories, always pay close attention to
the patient. Patients left in the same posture for an extended period of
time are at risk for developing nerve paralysis and/or bedsores.
Contraindication/Prohibition
1. This product is only validated for use with Mizuho operating tables.
2. Do not exceed weight capacity specified in Specifications, 4.
Allowable load. Otherwise the product could break.
Symbol mark for labeling
MD : Medical Device
Specifications
1. Shape
Code No. Product Description
Pediatric Knee Crutches with Clamps,
08-070-16
Large *1
Pediatric Knee Crutches, Large (NC) *2
08-070-16-NC
Pediatric Knee Crutches with Clamps,
08-070-17
Middle *1
Pediatric Knee Crutches, Middle (NC) *2 120
08-070-17-NC
Pediatric Knee Crutches with Clamps,
08-070-18
Small *1
Pediatric Knee Crutches, Small (NC) *2
08-070-18-NC
Code No.
08-110-01 Clamp for Round Bar *3
08-117-09 Clamp for Round Bar (R1) *4
08-117-11 Clamp for Round Bar (R2) *5
*1: *3 is included.
*2: Select *4 or *5 to use *2.
*3, *4 and *5: The size of mountable side rail is different.
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use
Trade Name: Pediatric Knee Crutches
Unit: mm
a
150 100
150 100
120
85
85
Product Description
2. Weight
08-070-16
08-070-16-NC
08-070-17
08-070-17-NC
08-070-18
08-070-18-NC
08-110-01, 08-117-09, 08-117-11: 0.9 kg
3. Material
① Thigh receiver: Stainless steel, Polyurethane
② Fixing band: Nylon
③ Support pole: Stainless steel
④ Thigh receiver fixing handle: Stainless steel
⑤ Thigh receiver adjustment handle: Stainless steel
⑥ Rail clamp: Stainless steel
⑦ Fixing handle: Stainless steel
Note: The numbers correspond to those in 1. Shape.
4. Allowable load
Unit: 17 kg
Maximum patient weight: 95 kg
Intended purpose
This is an accessory for the operating table.
This product is mainly for supporting the legs in lithotomy position for
pediatric patients.
Intended user
This product is to be used by health care professionals, including but not
limited to surgeons, nurses and biomedical technicians.
Instructions for use
Example of use
b
80
80
50
1. Attach the Knee Crutches symmetrically.
1-1. Attach the rail clamp① to the side rail of the operating table.
50
1-2. Insert the support pole③ into the rail①, and then tighten the
fixing handle②.
1-3. Adjust the position of the support pole③ and the thigh receiver
⑤ according to the posture of the patient.
1-4. After the adjustment, turn the fixing handle② to fix the rail
clamp① and the support pole③.
1/2
: 2.9 kg
: 2.0 kg
: 2.7 kg
: 1.8 kg
: 2.5 kg
: 1.6 kg
