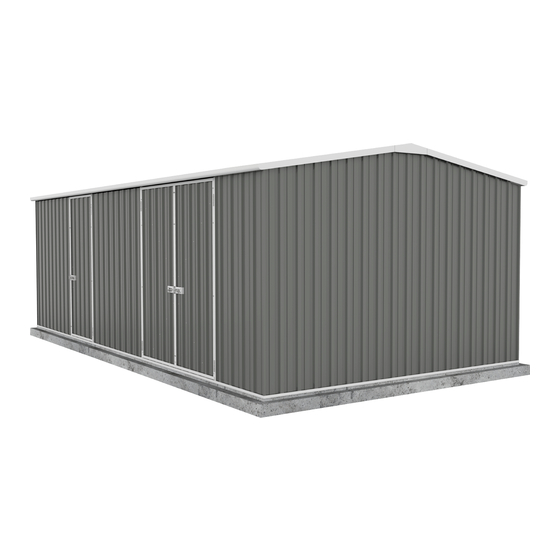

ABSCO SHEDS 60303WK Manual

Workshop shed
Hide thumbs Also See for 60303WK:

Advertisement

Quick Links

Download this manual
ASSEMBLY APP AVAILABLE ON
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1" high and inset 3" on all sides
from the overall slab base dimensions
AU: 1800 029 70 1
+1 (866) 788 3046
+1 (866) 788 3046
NZ: 0800 466 444
Absco Industries
ABSCO WORKSHOP SHED
MODEL: 60303WK
20'W x 10'D x 7'H
admin@absco.com.au
admin@absco.com.au
www.abscosheds.com.au
www.abscogardensheds.com
Assembly Instruction Manual
Scan to
download
WALLS SIT
ON THIS LEVEL
4"
3"
1"
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
Model: 60303WK-PTX
Australian Made
+
RAISED FLOOR
INSIDE SHED
3"
2/03/2023
Overall slab base
dimensions for this
model are as shown
above.
Illustration not to
scale.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 60303WK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS 60303WK

Summary of Contents for ABSCO SHEDS 60303WK

  • Page 1 MODEL: 60303WK 20’W x 10’D x 7’H Australian Made ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
  • Page 2 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made GENERAL INSTRUCTIONS • Some parts may have sharp edges. It is advisable to wear gloves when handling these items and • Before commencing any assembly, read safety glasses if drilling holes. Sensible shoes are through these instructions in detail to gain a highly recommended.
  • Page 3 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made COMPONENT PACKING LIST Check off all components. MAIN PACK CARTON (PACK 1 OF 2) PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION MIDPOINT STEEL SHEET STEEL SHEET 72.91” LONG TO 67.91”...
  • Page 4 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made COMPONENT PACKING LIST FITTINGS & ACCESSORIES PACKET CONTENTS DOOR STRAP CHANNEL JOINER L = 6.50” L = 7.87” CAP GABLE RIDGE L = 6.69” PLATES PSTKSGL RIDGE CAP...

  • Page 5: Component Description

    ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made COMPONENT PACKING LIST MAIN PACK CARTON (PACK 2 OF 2) COMPONENT PART COMPONENT PART CHECK CHECK CHECK DESCRIPTION DESCRIPTION MIDPOINT STEEL SHEET STEEL SHEET 72.91” LONG TO 70.28” LONG MIDPOINT 30.43”...
  • Page 6 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made COMPONENT PACKING LIST MAIN PACK (PACK 2 OF 2) CHANNEL SET PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION 55AL 55AR CHANNEL CHANNEL L = 58.92” L = 58.92”...
  • Page 7 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made COMPONENT PACKING LIST MAIN PACK (PACK 2 OF 2) CHANNEL SET (CONT.) PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL WITH HINGES L = 67.91” JAMB L = 70.28”...
  • Page 8 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 9 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
  • Page 10 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made PRE-ASSEMBLY OF SPLICED CHANNELS Join together 36 x channel sections using 18 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will...
  • Page 11 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made Guide on Joining a Spliced Ridge Beam If present, remove plastic coating from top side of ridge beam capping before assembly. Follow these three steps to assemble a ridge beam.
  • Page 12 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made PRE-ASSEMBLY OF SPLICED RIDGE BEAM ZARSP = 2x 97A 2x 97AL 2x 97AR Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 13 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made JOINING RIDGE BEAMS To make the total span we must now join the two ridge beams Cut away these two only. Using a hacksaw, remove one protruding section of each ridge beam, this will allow the sections to butt up neatly to each other.
  • Page 14 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made OVERVIEW OF ROOF COMPONENTS Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 15 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made OVERVIEW OF WALL COMPONENTS Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...

  • Page 16: End Panel Assembly

    ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made END PANEL ASSEMBLY 2 required. One panel requries sheet 30A this end. One panels requries sheet 30A this end. H30 is a corner sheet and must be orientated towards the shed corners when panels finally joined.
  • Page 17 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made ROOF PANEL ASSEMBLY 4 required. When completed there will be four sections with 87A lip at one end only. Two panels will have part 87A fitted to this end only.
  • Page 18 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made JOINING WALL AND ROOF PANELS To make the total span we must now join sections of sheeting together for the roof and wall. Trim the channels by ²¹/₃₂” to allow the sheets to be overlapped.

  • Page 19: Side Panel Assembly

    ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made SIDE PANEL ASSEMBLY 2 required. TRIM THE TIP OF EACH SHEET OR BEND OUT OF THE WAY TO ALLOW CHANNELS TO FIT HARD UP TO THE EDGE OF THE...
  • Page 20 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel channel Four hole set for padbolt connection.
  • Page 21 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...

  • Page 22: Door Panel Assembly

    ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made DOOR PANEL ASSEMBLY Nuts and bolts may be used instead of pop rivets by drilling out hinge holes using a 1/8” drill bit. Both are supplied. The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment, position each hasp centrally over the padbolt shaft and drill 1/8”...
  • Page 23 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made DOOR PANEL ASSEMBLY SINGLE DOOR 1 required. Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of...

  • Page 24: Front Panel Assembly

    ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made FRONT PANEL ASSEMBLY SINGLE DOOR PANEL 1 required. Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 25 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made DOOR PANEL ASSEMBLY SINGLE DOOR PANEL NOTE: Nuts and bolts are also supplied and may be used instead of rivets. Use a 1/8” drill bit to enlarge these holes in...
  • Page 26 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL FRAME DETAILS 2 required. PART C1482 PART C1704 3.15” 80mm TIP: An easy way to make sure that the angle at the top of the portal frame is correct is to use the gable wall panel as a template to lay the sections out.
  • Page 27 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL FRAME DETAILS STEP 1. x 19 STEP 2. Secure ridge plates x 30 to apex plates STEP 3. M10 Dynabolt STEP 4. Portal to panel connection, see section PANEL CONSTRUCTION for further infomation.
  • Page 28 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 1. Draw pattern on the concrete in accordance with the dimensions detailed in the assembly instructions. Absco Industries Assembly Instruction Manual Model: 60303WK-PTX...
  • Page 29 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 2. Understand where components are to be positioned Step 2c Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 30 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 3. Join rafter to column with knee plate Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 31 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 4. Join both rafters using the apex plate Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 32 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 5. Secure ridge plate (RBP) Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 33 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 6. Secure multi purpose brackets Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 34 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 7. Turn frame over and repeat steps 4 and 5. Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
  • Page 35 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made PORTAL FRAME DETAILS Recommended slab dimensions - 238.58” x 133.05” External wall dimensions - 234.65” x 118.11” Internal wall dimensions - 233.07” x 116.54” FIG 8A 94.09” 50.39”...
  • Page 36 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not.
  • Page 37 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made ROOF CONSTRUCTION STEP 1. STEP 3. Secure peak brace to ridge beam and Secure both roof panels to the walls with roof panel with one screw at each end, one screw in each corner first, followed see A below.
  • Page 38 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made FINAL CONSTRUCTION ANCHORING OF SHED STEP 1. Secure the roof panels to the wall panels Location of 24 concrete anchors. as shown. Refer to section PORTAL FRAME for portal anchor locations.
  • Page 39 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 40 ABSCO WORKSHOP SHED MODEL: 60303WK 20’W x 10’D x 7’H Australian Made Absco Industries Assembly Instruction Manual Model: 60303WK-PTX 2/03/2023...
