WARNING:
Using power tools may result in overtourquing screws causing threads to strip.
We are not responsible for replacements on parts where powertools where used.
CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about
2
Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email
support@sisterbayfurniture.com. Our Customer Service Department is available Monday-Friday 8:30 a.m. to 4:30 P.m. CST
HDPE

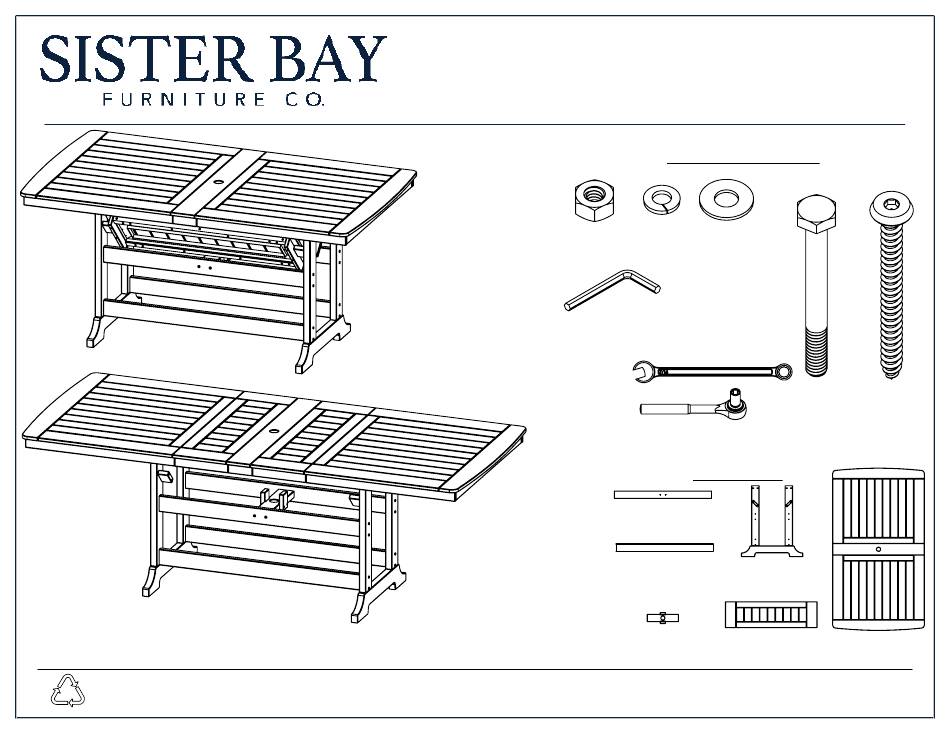

HARDWARE:
8x
8x
16x
0-2980
0-3016
0-3017
1x
Allen Wrench
7/16 Wrench
(NOT INCLUDED)
7/16 Socket Head Wrench
(NOT INCLUDED)
PARTS:
2x
35 Rail F&B
2x
35-2 Leg Asm
35 Rail Lower
F&B
1x
35 Cross Brace
35 Leaf
Napa
Collection

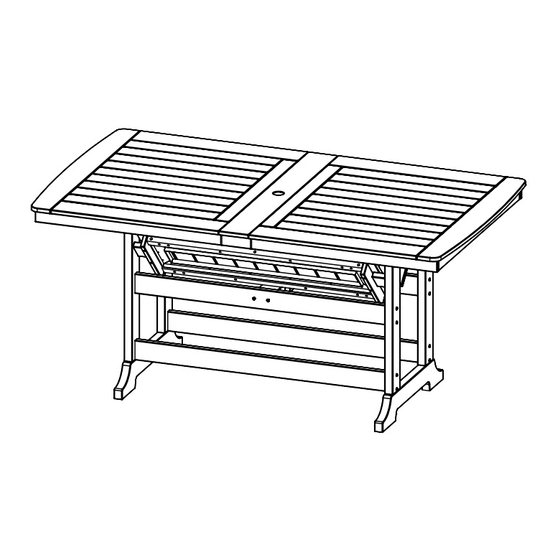

Counter Extension Table.
MODEL No: 35-2
8x
20x
0-5285
0-2993
1/4 -20x2.5"
1/4 x2.75"
2x
1x
1x
35 Top
Advertisement
Table of Contents
Related Manuals for Sister Bay Napa 35-2
Summary of Contents for Sister Bay Napa 35-2
- Page 1 CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email support@sisterbayfurniture.com.
- Page 2 Napa Collection Counter Extension Table. MODEL No: 35-2 DETAIL A Place Leg Asm on frame lining up slots with holes in frame. Insert [4x] bolts w/ washers through frame and legs slots (DETAIL A). Fasten [4x] bolts with washer, lock washer, and nut. Lay table top on cardboard or other flat surface to avoid scratches on surface.
- Page 3 Napa Collection Counter Extension Table. MODEL No: 35-2 NOTE: The Part With Holes In The Side Are Closest To Table Top. DETAIL B DETAIL C Insert [1x] 35 Rail F&B between legs closest to the table top, and align pilot holes with holes in leg.
- Page 4 Napa Collection Counter Extension Table. MODEL No: 35-2 FINAL STEP DETAIL D Leaf Storage Full Extension Final Step: Insert 35 Cross Brace between rails and align pilot holes with holes in rails. Important that the boards sticking out on the brace point twards the tabletop. Start planning a gathering so you have an excuse to Fasten into place with [2x] screws though rail into brace (DETAIL D).
