Sister Bay Beaumont MBEA-DT Assembly Instructions

(44)
A
(16)
B
(16)
C
(16)
D
(16)
E

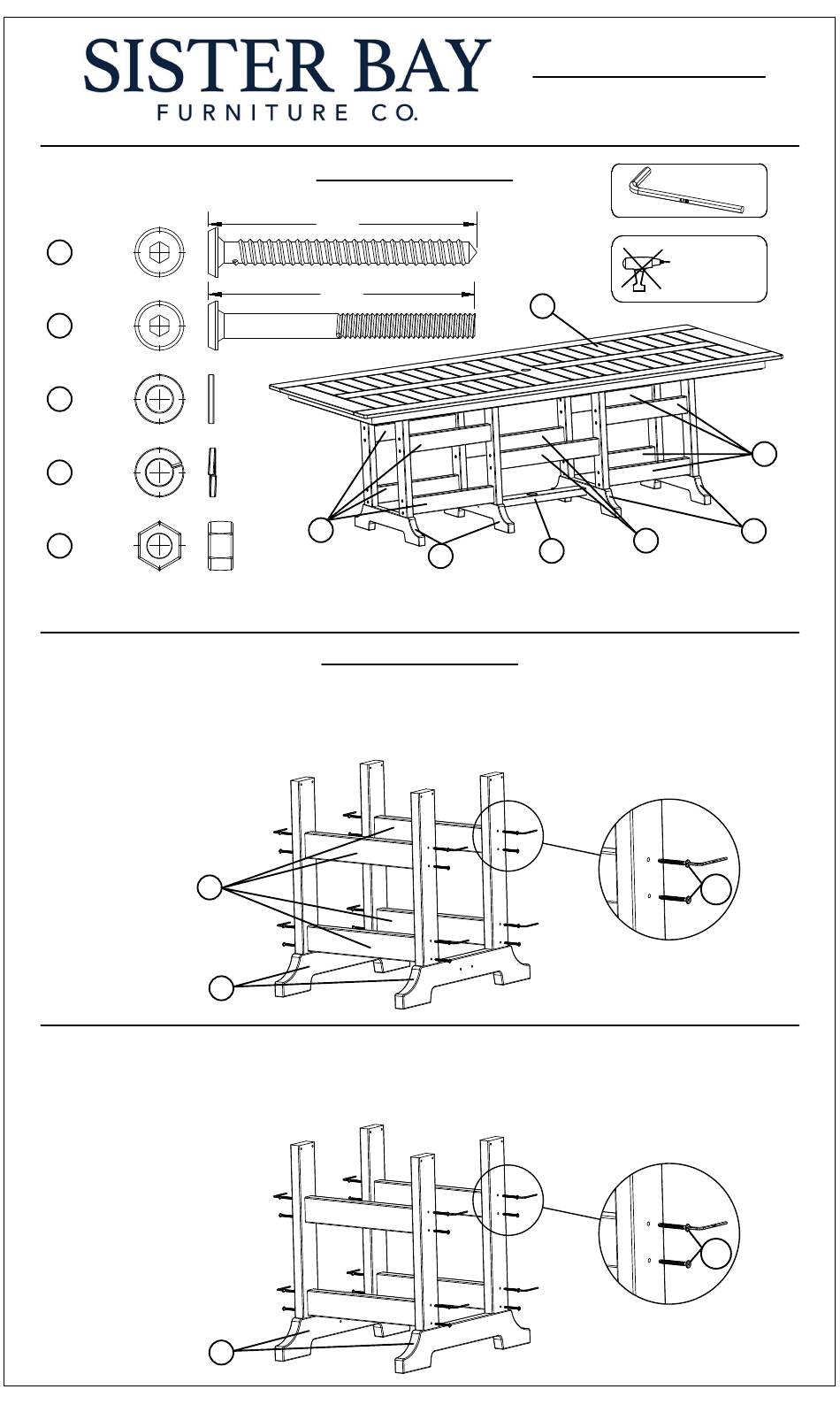

1 - Attach part ( F ), Right Leg Assembly 1 & 2, and 4 of parts ( G ), Leg Cross Brace, as shown in Figure 1, see
detail 1 using ( 16 ) of Lag screws ( A ) , tighten screws using an allen wrench .
G
(Right Leg
Assembly 1 & 2)
2 - Attach part ( F ), Left Leg Assembly 3 & 4, and 4 of parts ( G ), Leg Cross Brace, as shown in Figure 2, see
detail 2 using ( 16 ) of Lag screws ( A ) , tighten screws using an allen wrench .
(Left Leg
Assembly 3 & 4)

Hardware and Parts

2.75
2.75
G
Leg
(Cross Brace)
Assembly Instructions

Figure 1

F

Figure 2

F
Assembly Instructions
( Table Top )
J
I
F
Lower Mid
Left
(Cross Brace)
(Leg Assembly)
3 & 4
Item No: MBEA-DT
Beaumont Dining Table
ALLEN WRENCH
( included )
Do not use
any hand drill
on this product
(Cross Brace)
H
Upper Mid
(Leg Assembly)
(Cross Brace)
1 & 2
A
( Detail 1 )
A
( Detail 2 )
Leg
G
F
Right
1 & 2
