Video Wall Projection
Adjusting the Position
Horizontally and Vertically
Click "UP", "DOWN", "LEFT" or "RIGHT" to the po-
sition of the projected image.
Assigning the Projected Image on the Video Wall Setup

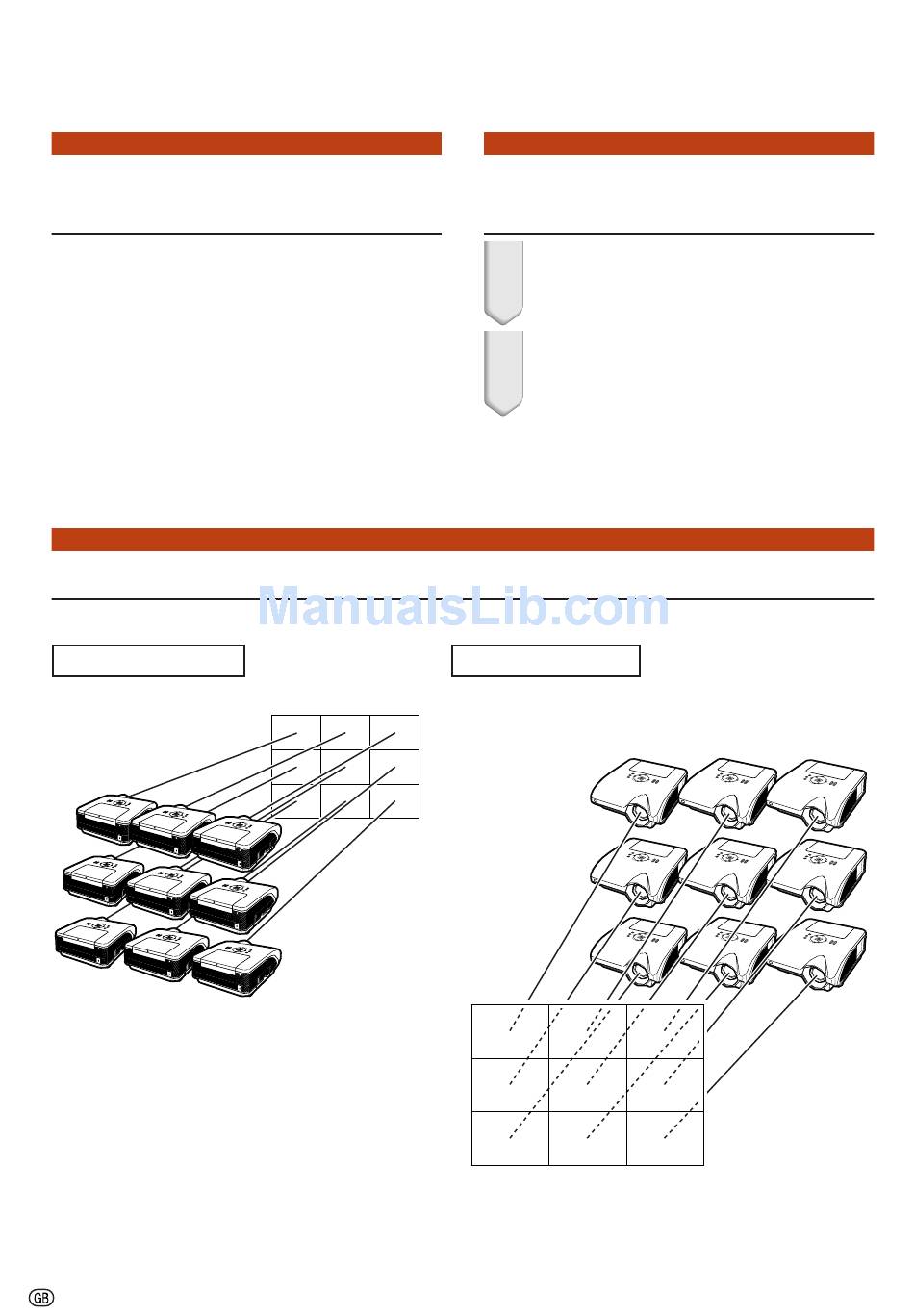

Followings are examples for assigning the projected images for the front and rear projections.
Front Projection
1
2
4
5
6
7
8
9
The numbers of the projector refer to the numbers
of the projected positions.
-44
1
2
3
4
5
6
7
8
9
3
Returning to the Default
Video Wall Setup
1
Select "1 X 1" on "Division".
2
Click the assigning button 1.
• The video wall setup will return to the de-
fault settings.
Rear Projection
The numbers of the projector refer to the numbers
of the projected positions.
1
2
2 2
3
3
4
5 5 5
6
7
8
9
1
2
4
5
7
8
3
6
9
