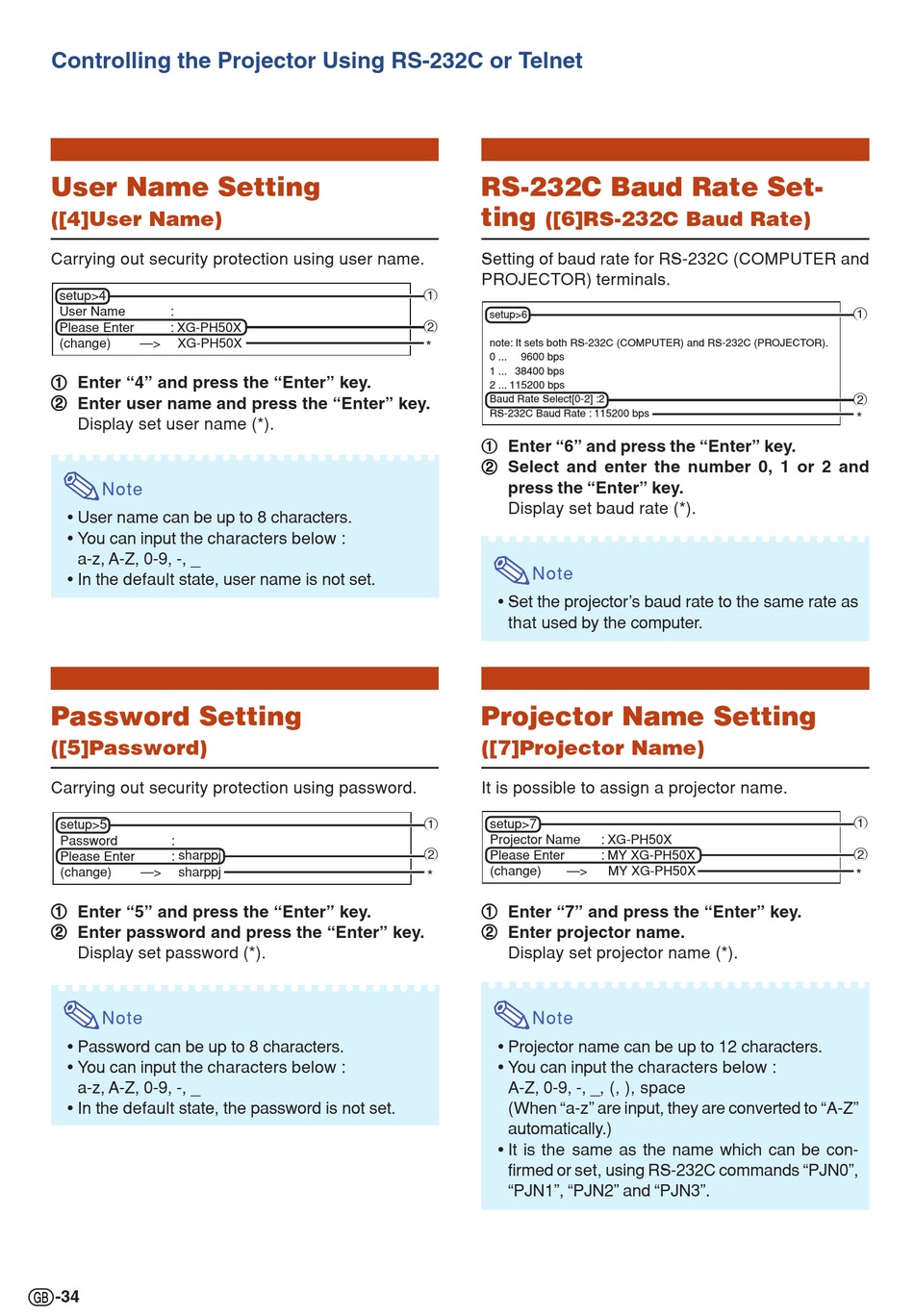

Controlling the Projector Using RS-232C or Telnet
User Name Setting
([4]User Name)
Carrying out security protection using user name.
setup>4
User Name :
Please Enter : XG-PH50X
(change) —> XG-PH50X
1 1 1 1 1 Enter "4" and press the "Enter" key.
2 2 2 2 2 Enter user name and press the "Enter" key.
Display set user name (*).
Note
• User name can be up to 8 characters.
• You can input the characters below :
a-z, A-Z, 0-9, -, _
• In the default state, user name is not set.
Password Setting
([5]Password)
Carrying out security protection using password.
setup>5
Password :
: sharppj
Please Enter
(change) —> sharppj
1 1 1 1 1 Enter "5" and press the "Enter" key.
2 2 2 2 2 Enter password and press the "Enter" key.
Display set password (*).
Note
• Password can be up to 8 characters.
• You can input the characters below :
a-z, A-Z, 0-9, -, _
• In the default state, the password is not set.
-34
RS-232C Baud Rate Set-
ting
([6]RS-232C Baud Rate)
Setting of baud rate for RS-232C (COMPUTER and
PROJECTOR) terminals.
1
setup>6
2
note: It sets both RS-232C (COMPUTER) and RS-232C (PROJECTOR).
*
0 ... 9600 bps
1 ... 38400 bps
2 ... 115200 bps
Baud Rate Select[0-2] :2
RS-232C Baud Rate : 115200 bps
1 1 1 1 1 Enter "6" and press the "Enter" key.
2 2 2 2 2 Select and enter the number 0, 1 or 2 and
press the "Enter" key.
Display set baud rate (*).
Note
• Set the projector's baud rate to the same rate as
that used by the computer.
Projector Name Setting
([7]Projector Name)
It is possible to assign a projector name.
1
setup>7
Projector Name
2
Please Enter
(change) —>
*
1 1 1 1 1 Enter "7" and press the "Enter" key.
2 2 2 2 2 Enter projector name.
Display set projector name (*).
Note
• Projector name can be up to 12 characters.
• You can input the characters below :
A-Z, 0-9, -, _, (, ), space
(When "a-z" are input, they are converted to "A-Z"
automatically.)
• It is the same as the name which can be con-
firmed or set, using RS-232C commands "PJN0",
"PJN1", "PJN2" and "PJN3".
: XG-PH50X
: MY XG-PH50X
MY XG-PH50X
