Video Wall Projection
Setting up the Video Wall Projection Basic

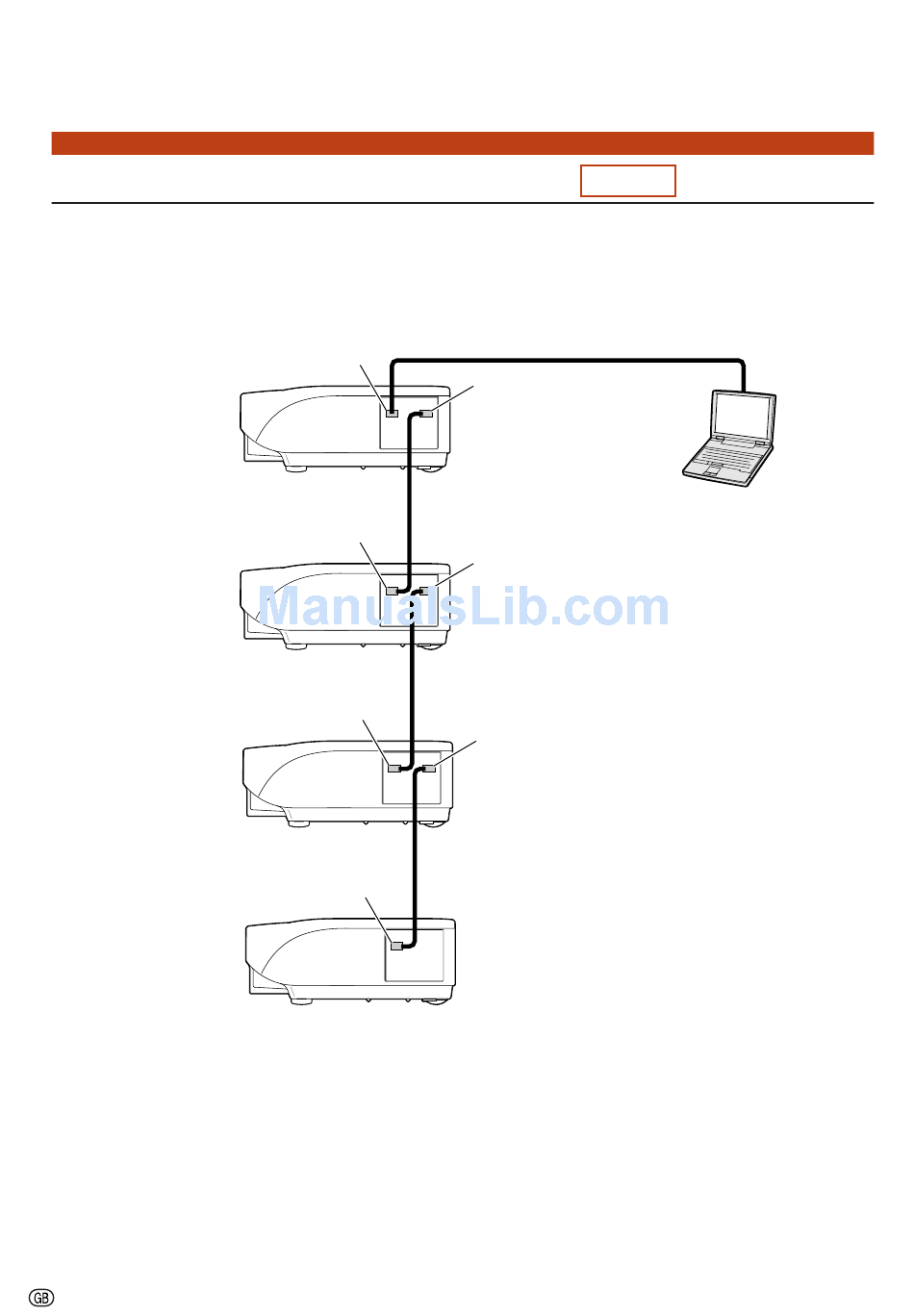

Following is an example of how to build a 2 X 2 video wall using 4 projectors.
Projector 1
Projector 2
Projector 3
Projector 4
-42
INPUT 1 terminal
RGB cable
INPUT 1 terminal
RGB cable
INPUT 1 terminal
RGB cable
INPUT 1 terminal
RGB cable
OUTPUT (FOR INPUT 1, 2)
terminal
OUTPUT (FOR INPUT 1, 2)
terminal
OUTPUT (FOR INPUT 1, 2)
terminal
Computer
