IMI CORNELIUS INC g One Cornelius Place g Anoka, MN 55303-6234
Telephone (800) 238-3600

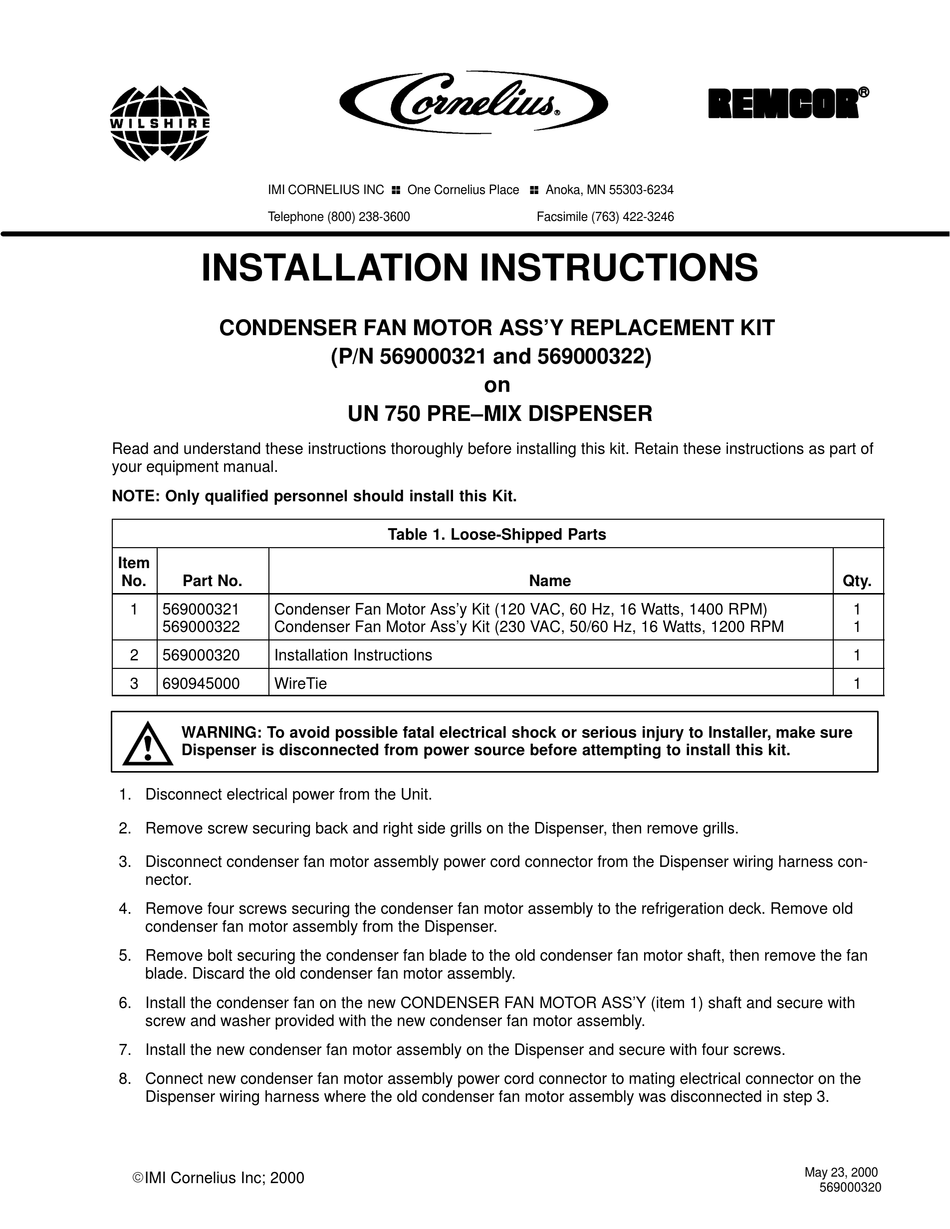

INSTALLATION INSTRUCTIONS

CONDENSER FAN MOTOR ASS'Y REPLACEMENT KIT
Read and understand these instructions thoroughly before installing this kit. Retain these instructions as part of
your equipment manual.
NOTE: Only qualified personnel should install this Kit.
Item
No. Part No.
1 569000321 Condenser Fan Motor Ass'y Kit (120 VAC, 60 Hz, 16 Watts, 1400 RPM)
569000322 Condenser Fan Motor Ass'y Kit (230 VAC, 50/60 Hz, 16 Watts, 1200 RPM
2 569000320 Installation Instructions
3 690945000 WireTie
WARNING: To avoid possible fatal electrical shock or serious injury to Installer, make sure
Dispenser is disconnected from power source before attempting to install this kit.
1. Disconnect electrical power from the Unit.
2. Remove screw securing back and right side grills on the Dispenser, then remove grills.
3. Disconnect condenser fan motor assembly power cord connector from the Dispenser wiring harness con-
nector.
4. Remove four screws securing the condenser fan motor assembly to the refrigeration deck. Remove old
condenser fan motor assembly from the Dispenser.
5. Remove bolt securing the condenser fan blade to the old condenser fan motor shaft, then remove the fan
blade. Discard the old condenser fan motor assembly.
6. Install the condenser fan on the new CONDENSER FAN MOTOR ASS'Y (item 1) shaft and secure with
screw and washer provided with the new condenser fan motor assembly.
7. Install the new condenser fan motor assembly on the Dispenser and secure with four screws.
8. Connect new condenser fan motor assembly power cord connector to mating electrical connector on the
Dispenser wiring harness where the old condenser fan motor assembly was disconnected in step 3.
EIMI Cornelius Inc; 2000
(P/N 569000321 and 569000322)
on
UN 750 PRE–MIX DISPENSER
Table 1. Loose-Shipped Parts
Facsimile (763) 422-3246
Name Qty.
1
1
1
1
May 23, 2000
569000320
