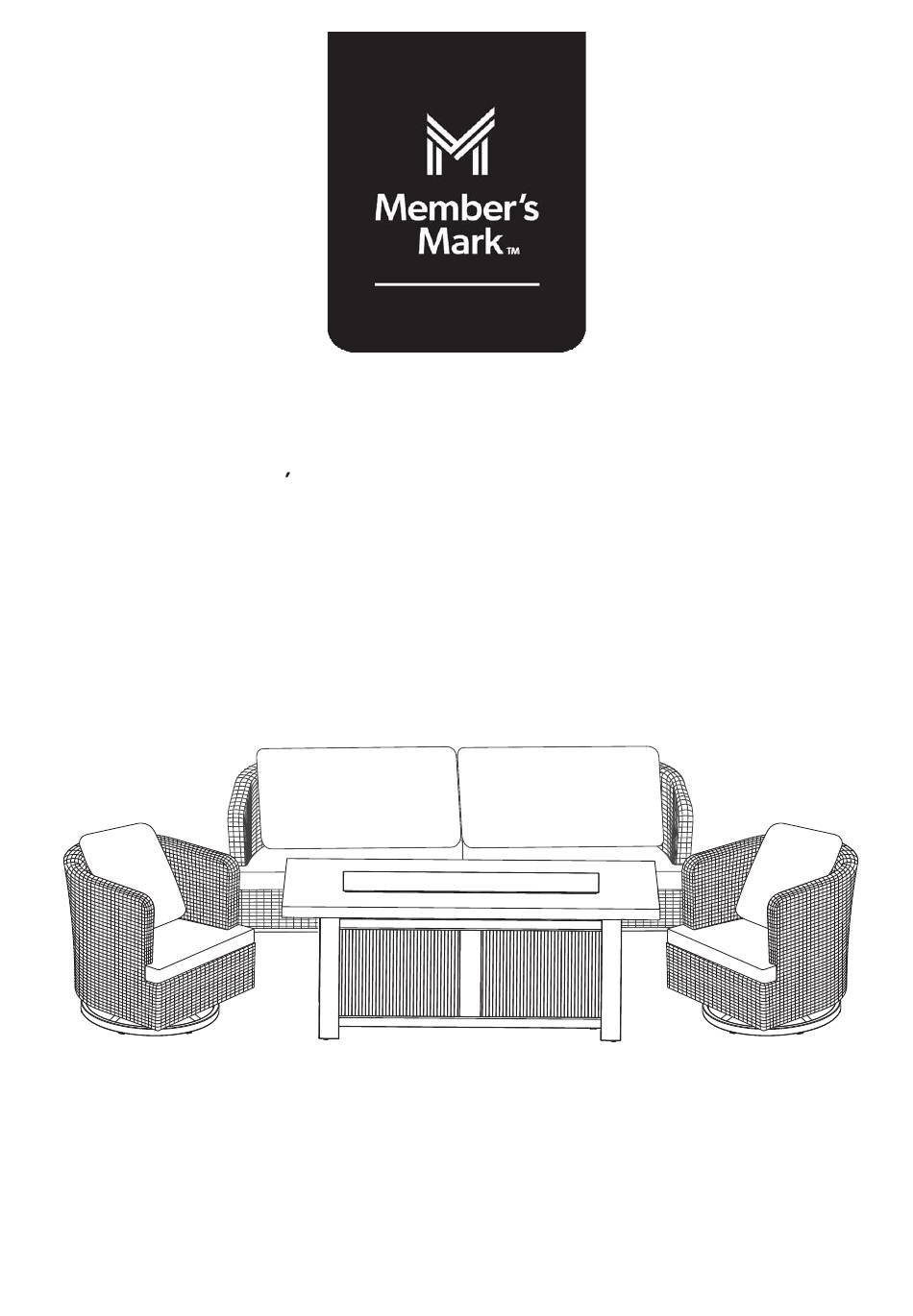

Assembly Instructions & User's Manual
for
Members Mark Brexley 4pc Seating Set
Item Number: 990018738
Model Number: BGK00523-4SC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Member's Mark BGK00523-4SC
Summary of Contents for Member's Mark BGK00523-4SC
- Page 1 Assembly Instructions & User's Manual Members Mark Brexley 4pc Seating Set Item Number: 990018738 Model Number: BGK00523-4SC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Components..............6 Hardware.................6 Tools................6 Step 1 – Step 7..............7-9 Care & Use and Storage Instructions.........10 Warranty Information............10 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 2Ctn Box 1 of 2: Component Description Quantity Swivel Glider Sofa Firepit Table Top Box 2 of 2: Component Description Quantity Firepit Table Base Fire Ices Furniture Cover Burner Cover Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Weight Factory Description Dimensions Part No. Capacity Assembly 250lb Chair BGK00523 32.5"D*30.5"W*27.5"H A.Foot Cap-1 FC0768 Weight Factory Description Dimensions Part No. Capacity Assembly 250lb per seat, Sofa BGK00506 32.5"Dx90"Wx27.5"H total 750lb A.Foot Cap-1 FC0607 B.Foot Cap-2 FC0245 Weight Factory Description Dimensions... -
Page 6: Components
Components A. FIRE PIT TABLE TOP B FIRE PIT TABLE BASE BURNER COVER Part No. FP3856 Part No. FP3857 Part No. FP3858 Qty 1 Qty 1 Qty 1 D. BURNER PAN PROTECTIVE FIRE ICE RING Part No. FP2147 Part No.FP3859 Qty 1 Qty 1 Hardware... -
Page 7: Step 1 - Step 7
Step 1 - Step 7 Step 1 There are two factory assembled M4 screws in the firepan/burner assembly. Remove those two screws in order to remove the burner pan protective ring. Step 2 (H12) (H18) (H16) Ø20 X Ø6.5 X 2.0 MM HEX BOLT DRIVER 1/4"... - Page 8 Step 3 Place the burner pan protective ring, into the burner as shown in the diagram . Secure the burner pan protective ring to the burner pan by using two M4 screws. (H10) M4 BOLT Qty: 2 (H17) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened.
- Page 9 Step 6 Open the door and place the LP tank in the bottom frame. Connect the regulator. Turn the black handle clockwise to tighten. Turn the handle counterclockwise to remove. The hose must point down. Open the control door and check that the valve is turned all the way clockwise to the “OFF”...
-
Page 10: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleaners, or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 11 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 11 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
