Sena 10R-02 User Manual

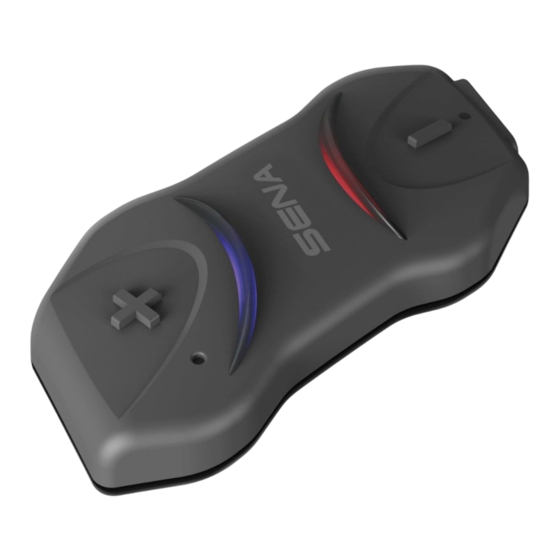

Low profile motorcycle bluetooth communication system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Low Profile Motorcycle Bluetooth
Communication System
2
1
1
Audio
Multitasking
User's Guide
www.sena.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10R-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sena 10R-02

Summary of Contents for Sena 10R-02

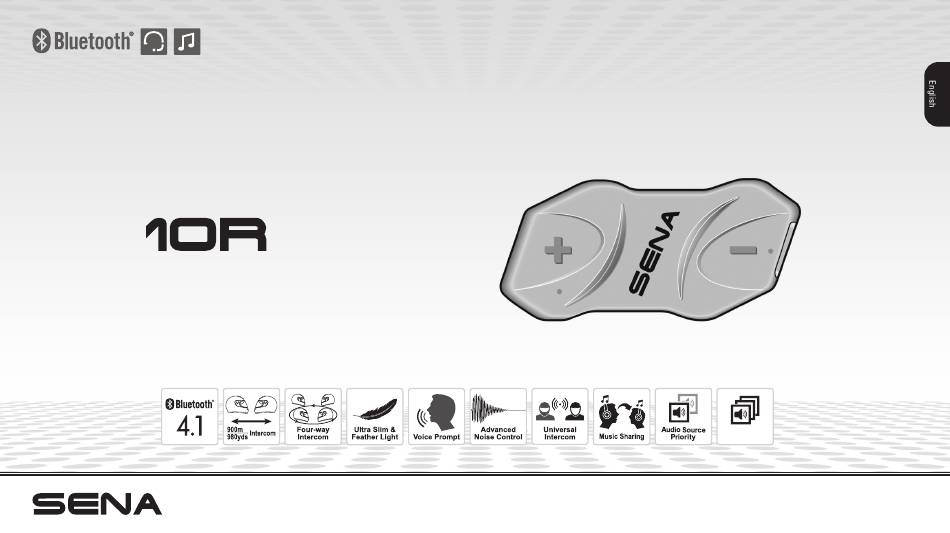

  • Page 1 ® Low Profile Motorcycle Bluetooth Communication System Audio Multitasking User’s Guide www.sena.com...
  • Page 2 ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark owned...

  • Page 3: Table Of Contents

    6.1 Mobile Phone Call Making and Answering................23 15 FIRMWARE UPGRADE ..................45 6.2 Speed Dialing ........................24 6.3 GPS Navigation ........................25 16 TROUBLESHOOTING ................... 45 6.4 Sena SR10, Two-Way Radio Adapter ...................25 16.1 Intercom Failure........................45 16.2 Intercom Reconnection ......................45 STEREO MUSIC ....................26 16.3 Fault Reset..........................46 7.1 Bluetooth Stereo Music ......................26...

  • Page 4: Introduction

    • Bluetooth intercom up to 900 meters (980 yards)* • Four-way intercom Thank you for choosing the Sena 10R, Low Profile Bluetooth Stereo Headset and Intercom. With the 10R, you can call handsfree on your • Three-way conference phone call with intercom participant Bluetooth mobile phone, listen to stereo music or voice instructions of •...

  • Page 5: Package Contents

    Key Specifications: 2 PACKAGE CONTENTS • Bluetooth 4.1 • Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video • Headset Main Unit Remote Control Profile (AVRCP). • Hook and Loop Fasteners for Main Unit (2) •...
  • Page 6 Speaker Wired Boom Microphone • Speakers (2) • Wired Boom Microphone • Hook and Loop Fastener for Wired Boom Microphone • Hook and Loop Fasteners for Speakers (4) • Microphone Sponges (2) • Foam Speaker Covers (2) • Speaker Pads (Thick) (2) •...
  • Page 7 Wired Microphone Others • USB Power & Data Cable • Wired Microphone • Hook and Loop Fastener for Wired Microphone Battery Pack • 10R Battery Pack • Battery Pack Holder • Double Sided Adhesive Tapes for Battery Pack Holder...

  • Page 8: Installing The 10R On Your Helmet

    3.1 Installing the Main Unit 3 INSTALLING THE 10R ON YOUR HELMET 3.1.1 Using the Hook and Loop Fasteners for Main Unit 1. Clean the area on the left side of the helmet where you will attach the hook and loop fasteners for main unit with a moistened towel Battery Pack Connector and dry thoroughly.
  • Page 9 3.1.2 Using the Double Sided Adhesive Tapes for Main Unit 3. Peel off the cover of the adhesive tape of the hook fastener for main unit and attach it to the back plate of the main unit. If you cannot attach the hook and loop fasteners to the helmet, you can use double sided adhesive tape.

  • Page 10: Installing The Speakers

    2. Attach the speakers to the hook and loop fasteners for speakers CAUTION: inside the helmet. Sena recommends using the hook and loop fasteners for main unit. The double sided adhesive tape is provided for convenience, but is not the recommended mounting method. Sena is not responsible for its use.

  • Page 11: Installing The Microphones

    3.3 Installing the Microphones 3. Align the arrows on the main unit and speaker cables and insert speaker cables into each speaker connector. 3.3.1 Using the Wired Boom Microphone 1. Peel off the cover of the hook and loop fastener for wired boom microphone to expose the adhesive tape.
  • Page 12 2. Attach the wired boom microphone’s mounting plate to the hook 4. Adjust the head of the microphone so that the tab is facing away and loop fastener. from your mouth. Note: 5. Align the arrows on the main unit and microphone cables and insert the microphone cable into the microphone connector.
  • Page 13 3.3.2 Using the Wired Microphone 3. Align the arrows on the main unit and microphone cables and insert the microphone cable into the microphone connector. If you have a full face helmet, you can use the wired microphone. 1. Peel off the cover of the hook and loop fastener for wired microphone to expose the adhesive tape.

  • Page 14: Installing The Battery Pack

    3.4 Installing the Battery Pack 3. Peel off the cover from the other side of the double sided adhesive tapes and attach the battery pack holder on the back side of your 1. Clean the area on the back side of the helmet where you will helmet.

  • Page 15: Getting Started

    6. Align the arrows on the main unit and battery pack cables and 4 GETTING STARTED insert the battery pack cable into the battery pack connector. 4.1 Button Operation (+) Button • Increase volume • Track forward • Speed dial Note: (-) Button 1.

  • Page 16: Powering On And Off

    Note: or performance of the battery. Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, or IC. You can charge the headset by connecting the supplied USB power &...

  • Page 17: Checking The Battery Level

    4.4 Checking the Battery Level 4.5 Volume Adjustment You can easily adjust the volume by tapping the (+) Button or the (-) 4.4.1 LED Indicator Button. You will hear a beep when the volume reaches the maximum or When the headset is powering on, the red LED flashes rapidly minimum level.

  • Page 18: Sena Softwares

    You can pair the 10R with Bluetooth mobile phones, Bluetooth stereo devices By simply pairing your phone with your headset, you can use the Sena such as MP3 players, or motorcycle specific Bluetooth GPS navigation, Utility App for quicker and easier set up and management.

  • Page 19: Mobile Phone Pairing - Mobile Phone, Bluetooth Stereo Device

    3. Search for Bluetooth devices on your mobile phone. Select the is paired”. Sena 10R in the list of the devices detected on the mobile phone. 5. If the pairing process is not completed within three minutes, the 4. Enter 0000 for the PIN. Some mobile phones may not ask for the 10R will return to stand-by mode.

  • Page 20: Advanced Selective Pairing - A2Dp Stereo Or Handsfree

    3. The Sena SR10 is a Bluetooth two-way radio adapter for group the 10R. To clear the pairing list on the 10R, please do a factory reset communication, and uses Hands-Free Profile.

  • Page 21: Intercom Pairing

    “Media selective pairing”. 1. Turn on the two 10R headsets (A and B) that you would like to pair 3. Search for Bluetooth devices on your smartphone. Select Sena with each other. 10R in the list of devices detected on your phone.
  • Page 22 3. Simply tap the Center Button of any one of the two headsets A or B 4. You can make other pairing between headsets A and C, and and wait until the LEDs of both headsets turn to blue and intercom between headsets A and D by following the same procedure as connection is automatically established.

  • Page 23: Mobile Phone, Gps, Sr10

    6 MOBILE PHONE, GPS, SR10 Conversation The 10R can be paired with all other Sena headset models such as the 20S, SMH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models.

  • Page 24: Speed Dialing

    6.2 Speed Dialing Note: You can quickly make a phone call by using the voice speed dial 1. If you have two phones connected to your headset and you have an menu. incoming call from the second phone during the call of the first phone, 1.

  • Page 25: Gps Navigation

    2. Tap the (+) Button until you will hear a voice prompt saying “GPS pairing”. 3. Search for Bluetooth devices on the GPS navigation. Select the Sena 10R in the list of the devices detected on the GPS. 4. Enter 0000 for the PIN.

  • Page 26: Stereo Music

    7.2 Music Sharing 7 STEREO MUSIC You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation (please refer to section 8.1, “Two-way Intercom” ). When you terminate music sharing, you can go back to the intercom conversation. To start or terminate 7.1 Bluetooth Stereo Music sharing music, press the Center Button for 1 second during an The Bluetooth audio device must be paired with the 10R by following...

  • Page 27: Intercom

    8.1.2 Ending Two-way Intercom 8 INTERCOM You can end an intercom conversation by using the Center Button. Press and hold the Center Button for 1 second to end any intercom. Or, you can single tap to end intercom with the first intercom friend, Please make sure your intercom devices are paired as described in double tap to end intercom with the second intercom friend, and section 5.4, “Intercom Pairing”...

  • Page 28: Three-Way Intercom

    8.2 Three-way Intercom 1. You (A) need to be paired with two other friends (B & C) for three- way conference intercom. 8.2.1 Starting Three-way Intercom You (A) can have a three-way conference intercom with two other 10R friends (B & C) by establishing two intercom connections simultaneously.
  • Page 29 8.2.2 Ending Three-way Intercom 3. You (A) can call the second intercom friend (C) by double tapping the Center Button, or the second intercom friend (C) may join the You can completely terminate the conference intercom or just intercom by making an intercom call to you (A). disconnect an intercom connection with one of your active intercom friends.

  • Page 30: Four-Way Intercom

    8.3 Four-way Intercom 2. Tap or double tap the Center Button to disconnect the intercom connection with one of the two intercom friends accordingly. 8.3.1 Starting Four-way Intercom However, when you disconnect the second friend (C) by double You can have four-way conference intercom with three other 10R users tapping the Center Button, you will be disconnected with the third by adding one more intercom participant to the three-way intercom.

  • Page 31: Three-Way Conference Phone Call With Intercom Participant

    2. When you have an incoming intercom call during a mobile phone 9 THREE-WAY CONFERENCE PHONE CALL call, you will hear 4 high toned beeps, alerting you that there is an incoming intercom call. You will also hear a voice prompt, WITH INTERCOM PARTICIPANT “Intercom requested”.

  • Page 32: Group Intercom

    Tap the Center Button while having a mobile 10 GROUP INTERCOM Start phone call End intercom first Tap the Center Button Group Intercom allows you to instantly create a multi-way conference Tap the Center Button for 2 seconds intercom with three other most recently paired headsets. End phone call first 1.

  • Page 33: Universal Intercom

    1. If a non-Sena headset does not support a multipoint connection, 11 UNIVERSAL INTERCOM it cannot use a phone call connection while using the Universal Intercom. 2. As for Sena headsets, the Universal Intercom affects the multipoint You can have an intercom conversation with non-Sena Bluetooth connection.

  • Page 34: Universal Intercom Pairing

    Center Button to begin an intercom conversation with the first intercom friend, double tap with the second intercom friend, and triple tap with 1. Turn on the 10R and a non-Sena Bluetooth headset that you want the third intercom friend.

  • Page 35: Three-Way Universal Intercom

    1. You (A) need to be paired with a non-Sena Bluetooth headset (B) and another 10R headset (C) for the three-way conference intercom.

  • Page 36: Four-Way Universal Intercom

    11.4 Four-way Universal Intercom 4. Now you (A), non-Sena Bluetooth headset (B), and the other 10R (C) are having a three-way conference intercom. You may make a four-way Universal Intercom connection with a couple of different configurations, 1) three 10Rs and one non-Sena Bluetooth headset or 2) two 10Rs and two non-Sena Bluetooth headsets .
  • Page 37 3. The non-Sena Bluetooth headset (D) may join the conference intercom by making an intercom call to the 10R (C). Two 10R headsets (A and C) and two non-Sena Bluetooth headsets (B and D). 1. You (A) may start an intercom conversation with the non-Sena Bluetooth headset (B).

  • Page 38: Function Priority

    11.4.2 Four-way Universal Intercom Case 2 12 FUNCTION PRIORITY Three 10R headsets (A, C and D) and one non-Sena Bluetooth headset (B). The procedure is the same as case 1 described in section 11.4.1 . The 10R operates in the following order of priority:...

  • Page 39: Headset Configuration Setting

    Configuration Menu Tap Center Button 13 CONFIGURATION SETTING Delete All Pairings Execute Remote Control Pairing Execute 13.1 Headset Configuration Setting Universal Intercom Pairing Execute 1. To enter configuration menu, press and hold the Center Button for Factory Reset Execute 10 seconds until you will also hear a voice prompt, “Configuration Exit Configuration Execute menu”.

  • Page 40: Software Configuration Setting

    13.2 Software Configuration Setting 13.2.3 Audio Boost (Default: Disable) You can change the settings of the headset through the Sena Device Enabling Audio Boost increases the overall maximum volume. Manager or the Sena Utility App. Disabling Audio Boost reduces the overall maximum volume, but delivers more balanced sound.
  • Page 41 13.2.5 VOX Intercom (Default: Disable) 13.2.6 HD Voice (Default: Disable) If this feature is enabled, you can initiate an intercom conversation HD Voice allows you to communicate in high-definition during phone with the last connected intercom friend by voice. When you want to calls.
  • Page 42 The volume of the dial foreground audio can be adjusted using the headset. How much background audio that is heard can be adjusted using the Sena Utility 13.2.10 Sidetone (Default: Disable) App. HD Intercom, HD Voice, and Audio Source Priority become Sidetone is audible feedback of your own voice.

  • Page 43: Remote Control

    * Two audio sources in the foreground can be heard simultaneously with the 14 REMOTE CONTROL same volume level. ** Only one background source can be heard at a time while listening to an audio source in the foreground. A. GPS instructions can be heard during phone calls and the volume level of You can remotely control the 10R via Bluetooth using the Handlebar both audio sources can be adjusted using the headset.

  • Page 44: Using The Handlebar Remote

    14.2 Using the Handlebar Remote Type Function Handlebar Remote Handlebar Remote button operations on various functions are Press the Front Button for 5 seconds Red flashing described in the table below. Intercom pairing Tap the Front Button of any one of the two headsets Type Function Handlebar Remote...

  • Page 45: Firmware Upgrade

    The 10R supports firmware upgrades. You can update the firmware 16.1 Intercom Failure using the Sena Device Manager (please refer to section 4.6.1, “Sena Device Manager” ). Please visit Sena Bluetooth website at When you try to start an intercom conversation with an intercom friend www.sena.com to check the latest software downloads.

  • Page 46: Fault Reset

    16.3 Fault Reset When the 10R is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button below the (+) Button . Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure.
  • Page 47 2.1.0 www.sena.com...
