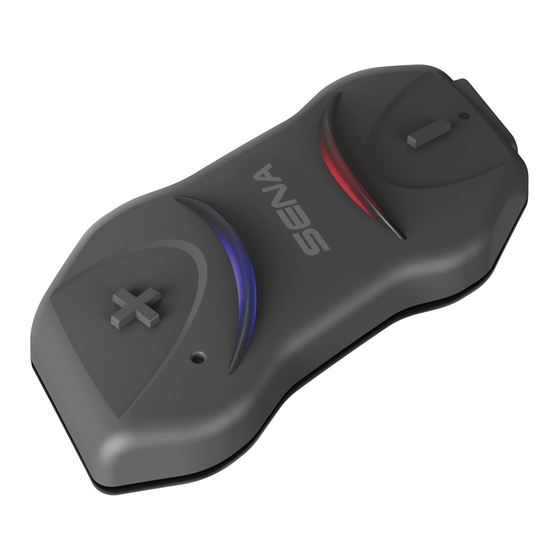

Low profile motorcycle bluetooth stereo headset and intercom
Hide thumbs Also See for 10R:
Table of Contents

Advertisement

Quick Links

Download this manual
10R
Low Profile Motorcycle Bluetooth Communication System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10R and is the answer not in the manual?

Questions and answers

Related Manuals for Sena 10R

Summary of Contents for Sena 10R

  • Page 1 Low Profile Motorcycle Bluetooth Communication System...
  • Page 2 Technologies, Inc. for the GoPro® Hero3 allowing for Bluetooth capabilities. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or...

  • Page 3: Table Of Contents

    5.3.1 A2DP Stereo Music Only 5.3.2 HFP for Phone Call Only 5.4 Intercom Pairing 5.4.1 Pairing with Other 10R Headsets for Intercom Conversation 5.4.2 Pairing with Other Sena Headset Models for Intercom Conversation 6 MOBILE PHONE, GPS, SR10 6.1 Mobile Phone Call Making and Answering 6.2 Speed Dialing...
  • Page 4 8.3.2 Ending Four-way Intercom 9 THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT 10 UNIVERSAL INTERCOM 10.1 Universal Intercom Pairing 10.2 Two-way Universal Intercom 10.3 Three-way Universal Intercom 10.4 Four-way Universal Intercom 10.4.1 Four-way Universal Intercom Case 1 10.4.2 Four-way Universal Intercom Case 2 11 FM RADIO 11.1 FM Radio On/Off 11.2 Preset Stations...
  • Page 5 CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement FCC RF Exposure Statement FCC Caution CE Declaration of Conformity Industry Canada Statement Bluetooth License WEEE (Waste Electrical and Electronic Equipment) SAFETY INFORMATION Product Storage and Management Product Use Battery PRODUCT WARRANTY AND DISCLAIMER Limited Warranty Warranty Exclusions Reasons for Limited Liabilities...

  • Page 6: Introduction

    1 INTRODUCTION Thank you for choosing the Sena 10R, Low Profile Bluetooth Stereo Headset and Intercom. With the 10R, you can call handsfree on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders.

  • Page 7: Package Contents

    2 PACKAGE CONTENTS ● Headset Main Unit ● Speakers ● Attachable Boom Microphone ● Wired Microphone ● Battery Pack* ● Battery Pack Holder ● Speaker Pads ● Velcro Pad for Boom Microphone ● Velcro Pads for Speakers ● Velcro Pad for Wired Microphone ●...

  • Page 8: Installing The 10R On Your Helmet

    메모 [2]: 스피커는 좌,우 분리되었음. 변경요 To securely install the main unit of the 10R, you can use the velcro pad or double sided adhesive tape. Please follow the procedure below. 1. Peel off the cover of the adhesive tape of the velcro pad and attach it on the back plate of the main unit.
  • Page 9 to the 2 pin connector of the main unit cable. To get rid of the battery pack from the battery pack holder, push the battery pack upward.

  • Page 10: Getting Started

    4.1 Button Operation The 10R is mainly controlled by the Bluetooth Handlebar Remote. The two are paired from the factory and are ready for immediate use. If the Handlebar Remote runs out of battery, you can use the control buttons on the headset to operate all functions.

  • Page 11: Powering On And Off

    If you purchase the battery pack, sold separately, you can use the 2-Pin connector to Micro-USB Adapter for charging the 10R. You should connect the USB power & data cable first to the 2-Pin Connector to Micro-USB Adapter and then to the battery pack in series.

  • Page 12: Sena Softwares

    4.6.2 Sena Smartphone App The Sena Smartphone App allows you to configure device settings and read the User’s Guide and the Quick Start Guide. Pair your phone with your 10R headset (please refer to section 5.1 “Mobile Phone Pairing - Mobile Phone, Bluetooth Stereo Device”).

  • Page 13: Pairing The 10R With Bluetooth Devices

    2. Move the Joystick up or down until you hear the voice prompt, “Second mobile phone pairing”. 3. Search for Bluetooth devices on the HFP device. Select the Sena 10R in the list of the devices detected on the HFP device.

  • Page 14: Advanced Selective Pairing: A2Dp Stereo Or Handsfree

    A2DP for stereo music of HFP for phone calls. If you have previously paired a mobile phone to the 10R, you must clear the previous pairing list on both devices: the mobile phone and the 10R. To clear the pairing list on the 10R, please do a factory reset or following the pairing list clearing procedure described in section 13.11, “Factory Reset”...

  • Page 15: Pairing With Other Sena Headset Models For Intercom Conversation

    5.4.2 Pairing with Other Sena Headset Models for Intercom Conversation The 10R can be paired with all other Sena headset models such as the 20S, SMH10 and the SMH5 for intercom conversation. Please follow the same procedure as above to pair with these headset models.
  • Page 16 Pairing Tap the Rear Button Tap the (+) Button Intercom Pairing Press the Front Button for 5 seconds Press the Center Button for 5 seconds Tap the Front Button of any one of Tap the Center Button of any one the two headsets of the two headsets Button Operation Table for Bluetooth Pairing...

  • Page 17: Mobile Phone, Gps, Sr10

    6. If you want to exit the speed dial immediately, tap the (+) Button or the (-) Button until you hear voice prompt, “Cancel”, and tap the Rear Button. If you do not press any button within 15 seconds, the 10R will exit the voice speed dial menu and go...

  • Page 18: Gps Navigation

    6.3 GPS Navigation If you pair a Bluetooth GPS to the 10R as described in section 5.2, “Second Mobile Phone Pairing”, you can listen to GPS instructions wirelessly. Move the Joystick up or down to adjust volume. The GPS voice instruction interrupts intercom conversation but it is automatically reestablished after the GPS voice instruction ends.

  • Page 19: Stereo Music

    7.1. The 10R supports the Audio/Video Remote Control Profile (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the 10R to remotely control music playback. Not only can you adjust the volume but you can also use functions such as play, pause, next track and previous track.

  • Page 20: Intercom

    8.2.1 Starting Three-way Intercom You (A) can have a three-way conference intercom with two other 10R friends (B & C) by establishing two intercom connections simultaneously. While a three-way conference intercom is in progress, mobile phone connection of all three participants is temporarily disconnected.

  • Page 21: Ending Three-Way Intercom

    8.3.1 Starting Four-way Intercom You can have four-way conference intercom with three other 10R users by adding one more intercom participant to the three- way intercom. While you are having a three-way intercom as above in section 8.2, a new participant (D), who is an intercom...

  • Page 22: Ending Four-Way Intercom

    Please note that in this case, the new participant (D) is an intercom friend of (C), not of you (A). 8.3.2 Ending Four-way Intercom As same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection.

  • Page 23: Three-Way Conference Phone Call With Intercom Participant

    9 THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT 1. When you have an incoming mobile phone call during an intercom conversation, you will hear a ring tone. You can choose whether to 1) answer the mobile phone call and stop the intercom conversation, or 2) reject the phone call and stay on the intercom conversation.

  • Page 24: Universal Intercom

    1. Turn on the 10R and a non-Sena Bluetooth headset that you want to pair with. 2. Press and hold the Front Button on the 10R for 8 seconds until the blue LED flashes rapidly. You will hear a voice prompt, “Universal intercom pairing”.

  • Page 25: Four-Way Universal Intercom

    If you disconnect the intercom call, the mobile phone connection is made again automatically so that you can use a mobile phone call function. 1. You (A) need to be paired with a non-Sena Bluetooth headset (B) and another 10R headset (C) for the three-way conference intercom.

  • Page 26: Four-Way Universal Intercom Case

    (B), another 10R (C), and a non-Sena Bluetooth headset (D), 2) your headset (A), a non-Sena Bluetooth headset (B), and two other 10R headsets (C and D). You may make the four-way Universal Intercom call the same way as a normal four- way intercom call.

  • Page 27: Four-Way Universal Intercom Case

    10.4.2 Four-way Universal Intercom Case 2 Three 10R headsets (A, C and D) and one non-Sena Bluetooth headset (B) The procedure is the same as case 1 described in section 11.4.1.

  • Page 28: Fm Radio

    Note: 1. You can save FM stations to presets before using FM radio. Connect the 10R to your PC and open the Sena Device Manager. It allows you to save up to 10 FM station frequency presets on the 10R settings menu. You may do the same operation by using the Sena Smartphone App.

  • Page 29: Temporary Preset

    11.6 Region Selection You can select the proper FM frequency region from the Sena Device Manager. With the region setting, you may optimize the seek function to avoid unnecessary frequency ranges (Factory default: worldwide).

  • Page 30: Function Priority

    12 FUNCTION PRIORITY The 10R operates in the following order of priority: (highest) Mobile phone Intercom Music sharing by Bluetooth stereo music FM Radio (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function. For example, stereo music is interrupted by...

  • Page 31: Configuration Setting

    Front Button. 4. If no button is pressed within 10 seconds, the 10R will exit the configuration and go back to stand-by mode. 5. If you want to exit the configuration immediately, Move the Joystick up or down until you hear a voice prompt, “ Exit configuration”, and tap the Rear Button.

  • Page 32: Mobile Phone Pairing

    13.1 Mobile Phone Pairing "Phone pairing" Voice Prompt Factory Default To go into mobile phone pairing mode, tap the (+) Button or the (-) Button until you hear the voice prompt, “Phone pairing”. Please refer to section 5.1 for details on mobile phone pairing. If you tap the (+) Button or the (-) Button, you can exit from the phone pairing mode.

  • Page 33: Assigning Speed Dial

    5. To exit the menu, tap the (+) Button or the (-) Button until you hear a voice prompt, “Cancel”, and tap the Center Button to confirm. You will then hear a voice prompt, “Cancel”. If no button is pressed within 1 minute, the 10R will exit the configuration menu and go back to stand-by mode.

  • Page 34: Enabling/Disabling Voice Activated Intercom

    In this case, you have to tap the Center Button to restart the intercom. This is to prevent repeated unintentional intercom connections by strong wind noise. After rebooting the 10R, you can start intercom by voice again.

  • Page 35: Enabling/Disabling Rds Af

    Note: If you use your 10R with the Bluetooth Audio Pack for GoPro, you can enable or disable this feature only during Normal Audio Recording Mode. This feature is automatically disabled while in Ultra HD (UHD) Audio Mode.

  • Page 36: Remote Control Pairing

    Execute Tap the Center Button To delete all Bluetooth pairing information of the 10R, tap the (+) Button or the (-) Button until you hear a voice prompt, “Delete all pairings”, and tap the Center Button to confirm. 13.15 Remote Control Pairing “Remote control pairing”...
  • Page 37 Tap (+) Button or (-) Button Tap Center Button Phone Pairing None Second Mobile Phone Pairing None Phone Selective Pairing None Media Selective Pairing None Speed Dial Execute Audio Boost Enable/Disable VOX Phone Enable/Disable VOX Intercom Enable/Disable VOX Sensitivity -Enter adjustment mode - Save and exit Voice Prompt Enable/Disable...

  • Page 38: Firmware Upgrade

    14 FIRMWARE UPGRADE The 10R supports firmware upgrades. You can update the firmware using the Sena Device Manager (please refer to section 4.6.1, “Sena Device Manager”). Please visit Sena Bluetooth website at www.sena.com to check the latest software downloads.

  • Page 39: Troubleshooting

    15.3 Fault Reset When the 10R is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button below the (+) Button . Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure.

  • Page 40: Operation Quick Reference

    16 OPERATION QUICK REFERENCE Type Function Button Duration Beep Basic Function Power on Center Button & (+) 1 sec Solid blue Ascending beeps Button Power off Center Button & (+) Solid red Descending beeps Button Volume (+) Button or (-) Button adjustment Answer &...
  • Page 41 Save preset while High tone double (-) Button scanning beeps...
  • Page 42 CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please consult www.sena.com.
  • Page 43 Bluetooth License ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners. ® The product is compliant with and adopts the Bluetooth Specification 3.0 and has successfully passed all interoperability...
  • Page 44 ● In some regions, it is prohibited by law to ride motorcycles or bicycles while wearing headsets. Therefore be certain to comply with all relevant laws in the region before using the product. ● Use of the product at a high volume for a long period of time may damage your eardrums or hearing ability. Keep the volume at a modest level.
  • Page 45 Sena Technologies, Inc. (“Sena”) guarantees the product quality based on the technical specification stated in the product manual, and data regarding product warranty. Here, product warranty extends to the product only. Sena will not be liable for any loss, damage of human life, or loss of property which may result from using the product beyond defective parts or flaws that occur due to problems in manufacture.
  • Page 46 Further, Sena will not be liable for any substantial damage not related to the, condition, environment, or malfunction of the product.
  • Page 47 In addition to damages which may occur due to the use of the product, Sena will not be liable for damages of the product which occur due to the following events. In the event the product is misused or used for purposes other than its intended purposes.
  • Page 48 à faire fonctionner ce matériel. Déclaration de conformité CE Ce produit porte un marquage CE, conformément aux dispositions de la directive R&TTE (99/5/CE). Sena déclare par la présente que ce produit est conforme aux exigences principales et autres dispositions correspondantes de la directive 1999/5/CE.
  • Page 49 Licence Bluetooth La marque et les logos Bluetooth® sont la propriété de Bluetooth SIG, Inc et toute utilisation de ces marques par Sena s'effectue sous licence. D’autres marques et appellations commerciales sont celles de leurs propriétaires respectifs. Le produit est conforme à et suit la spécification Bluetooth® 3.0 et a réussi tous les tests d'interopérabilité mentionnés dans la spécification Bluetooth®...
  • Page 50 Utilisation du produit ● Dans certaines régions, la loi interdit le port d'écouteurs en étant à moto ou à vélo. Assurez-vous donc de respecter toutes les lois correspondantes dans la région avant d'utiliser le produit. ● L'utilisation du produit à volume élevé pendant une période prolongée peut endommager les tympans ou la capacité auditive.
  • Page 51 Période de garantie Sena garantit le remplacement sans frais des pièces défectueuses du produit ou des défauts ayant pu survenir en raison de problèmes lors de la fabrication pour une période de deux ans à compter de la date d'achat initiale FIN DE LA GARANTIE La garantie de qualité...
  • Page 52 à des tiers ayant pu se produire lors de votre utilisation du produit. D'autre part, Sena n'est pas responsable des dommages substantiels qui ne sont pas liés à l'état, à l'environnement ou au dysfonctionnement du produit. Tous les risques associés à l'utilisation du produit dépendent entièrement de l'utilisateur, quelle que soit son utilisation par l'acheteur d'origine ou d'un tiers.
  • Page 53 Service sans frais Sena offre un service de réparation ou de remplacement sans frais du produit lorsque les défauts de produit rentrent dans la limite de la garantie du produit durant la période de garantie.
  • Page 54 SENA www.sena.com User's Guide for Firmware v1.0...
